IRFLEX30/230/10 Protective hose cpl. Diagram

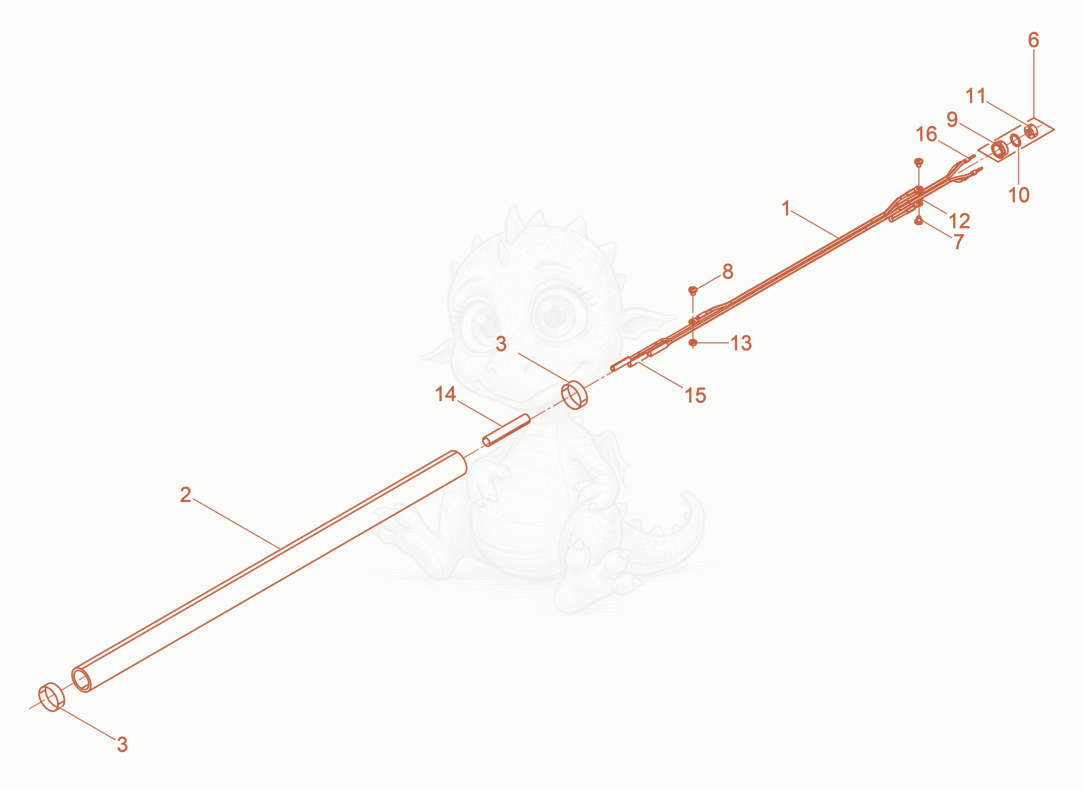

Exploded parts diagram of the Protective hose cpl. of a Wacker Neuson IRFLEX30/230/10, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100072251Not stocked
    Supply line cpl.×1
  • 25100008874Not stocked
    Protective hose×1
  • 35000128141
    $5.39
    CLAMP - 5000128141×2
  • 65100029394
    $39.48
    Screw connection cpl. - 5100029394×1
  • 75000218500
    $0.13
    Screw-Pan Head - 5000218500×2
  • 85000013171
    $0.35
    SCREW M4 X 6 MS,CHEESE - 5000013171×1
  • 95000203577
    $0.58
    SCREW-PRESSURE - 5000203577×1
  • 105000203579
    $0.21
    RING-THRUST - 5000203579×1
  • 115000202933
    $10.48
    PLUG-4 HOLE - 5000202933×1
  • 125000200988
    $0.40
    WASHER-LOCK,TOOTHED - 5000200988×2
  • 135000013178
    $0.40
    NUT M4 MS,HEX. - 5000013178×1
  • 145000125871
    $1.51
    HOSE-SHRINK FIT - 5000125871×1
  • 155000202515
    $0.92
    CONNECTOR-FLAT - 5000202515×3
  • 165000066351
    $0.17
    End sleeve for strand E 1,5- 8 - 5000066351×3
