Int Vib. Con. IRFU30/230 GV CH

IRFU30/230VGVCH Hose connection Diagram

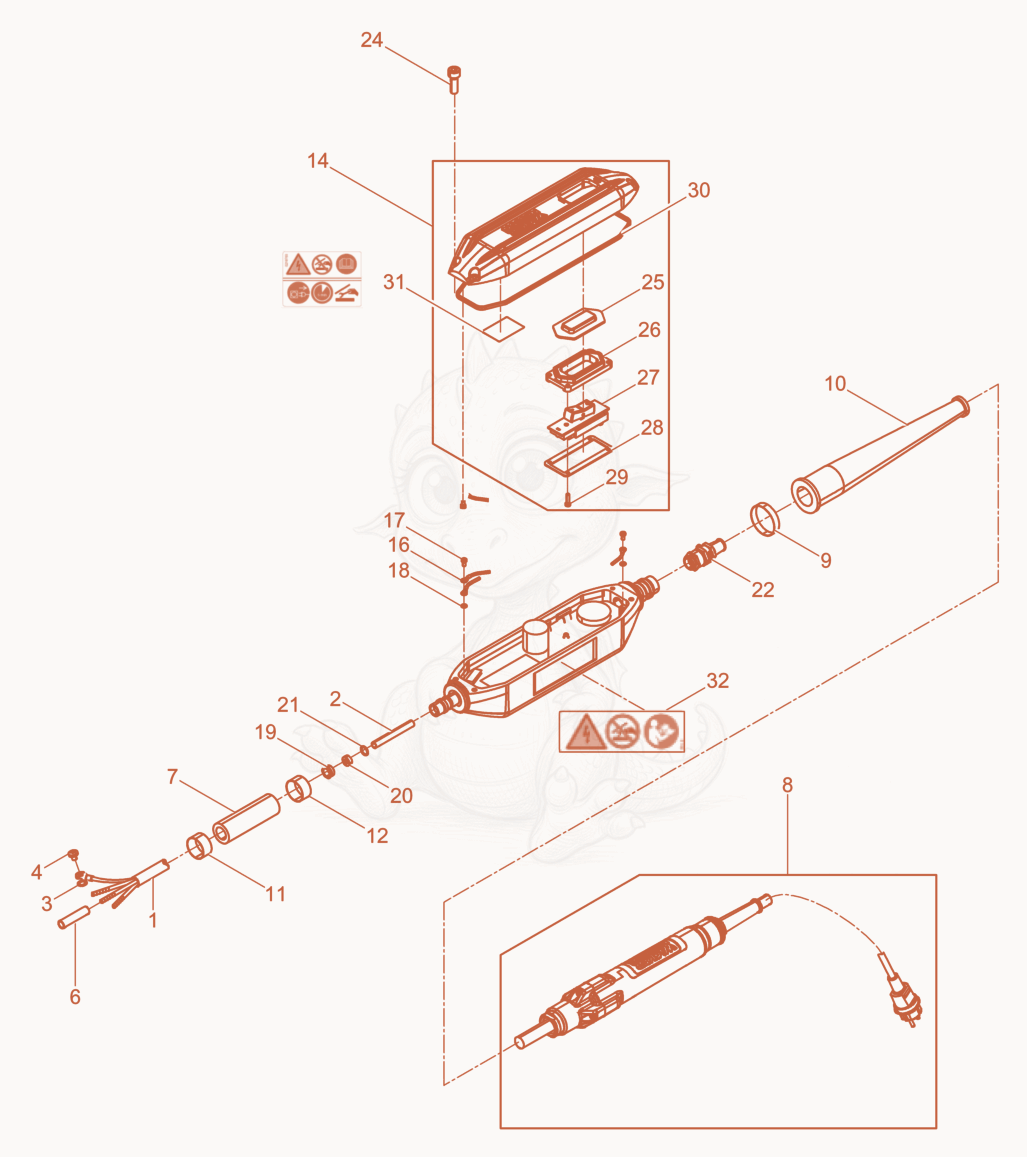

Exploded parts diagram of the Hose connection of a Wacker Neuson IRFU30/230VGVCH, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000218969
    $84.23
    Supply line - 5000218969×1
  • 25000125871
    $1.51
    HOSE-SHRINK FIT - 5000125871×1
  • 35000200988
    $0.40
    WASHER-LOCK,TOOTHED - 5000200988×1
  • 45000218500
    $0.13
    Screw-Pan Head - 5000218500×1
  • 65000202515
    $0.92
    CONNECTOR-FLAT - 5000202515×3
  • 75000208139Not stocked
    Protective hose×1
  • 85000203890Not stocked
    Power cable with bodyguard×1
  • 95003008468
    $13.57
    SLEEVE-CABLE REINFORCEMENT - 5003008468×1
  • 105002007121
    $3.14
    Clamp - 5002007121×1
  • 115002007010
    $3.41
    CLAMP 201/J204-32X1/2 ,BAND-IT - 5002007010×2
  • 145000211292Not stocked
    Cover cpl.×1
  • 165000208643
    $10.21
    Ground wire - 5000208643×1
  • 175000208647
    $0.22
    SCREW-CHEESE HEAD - 5000208647×3
  • 185000200988
    $0.40
    WASHER-LOCK,TOOTHED - 5000200988×3
  • 195000203577
    $0.58
    SCREW-PRESSURE - 5000203577×1
  • 205000203579
    $0.21
    RING-THRUST - 5000203579×1
  • 215000202933
    $10.48
    PLUG-4 HOLE - 5000202933×1
  • 225000203509
    $17.26
    Screw connection - 5000203509×1
  • 245000011561
    $0.22
    SCREW M5X16-8.8VZ,SOC.HD.CAP - 5000011561×4
  • 255000129569
    $7.71
    diaphragm - 5000129569×1
  • 265000202103
    $13.96
    Flange - 5000202103×1
  • 275000210371
    $71.70
    ACTUATOR CPL - 5000210371×1
  • 285000203024
    $14.78
    Flange - 5000203024×1
  • 295000208645
    $0.22
    SCREW-CHEESE HEAD - 5000208645×4
  • 305000202542
    $9.33
    Gasket - 5000202542×1
  • 315000218763
    $8.79
    LABEL-WARNING - 5000218763×1
  • 325000219413
    $13.07
    Labels - 5000219413×1
