IRFU45/120/5 UK

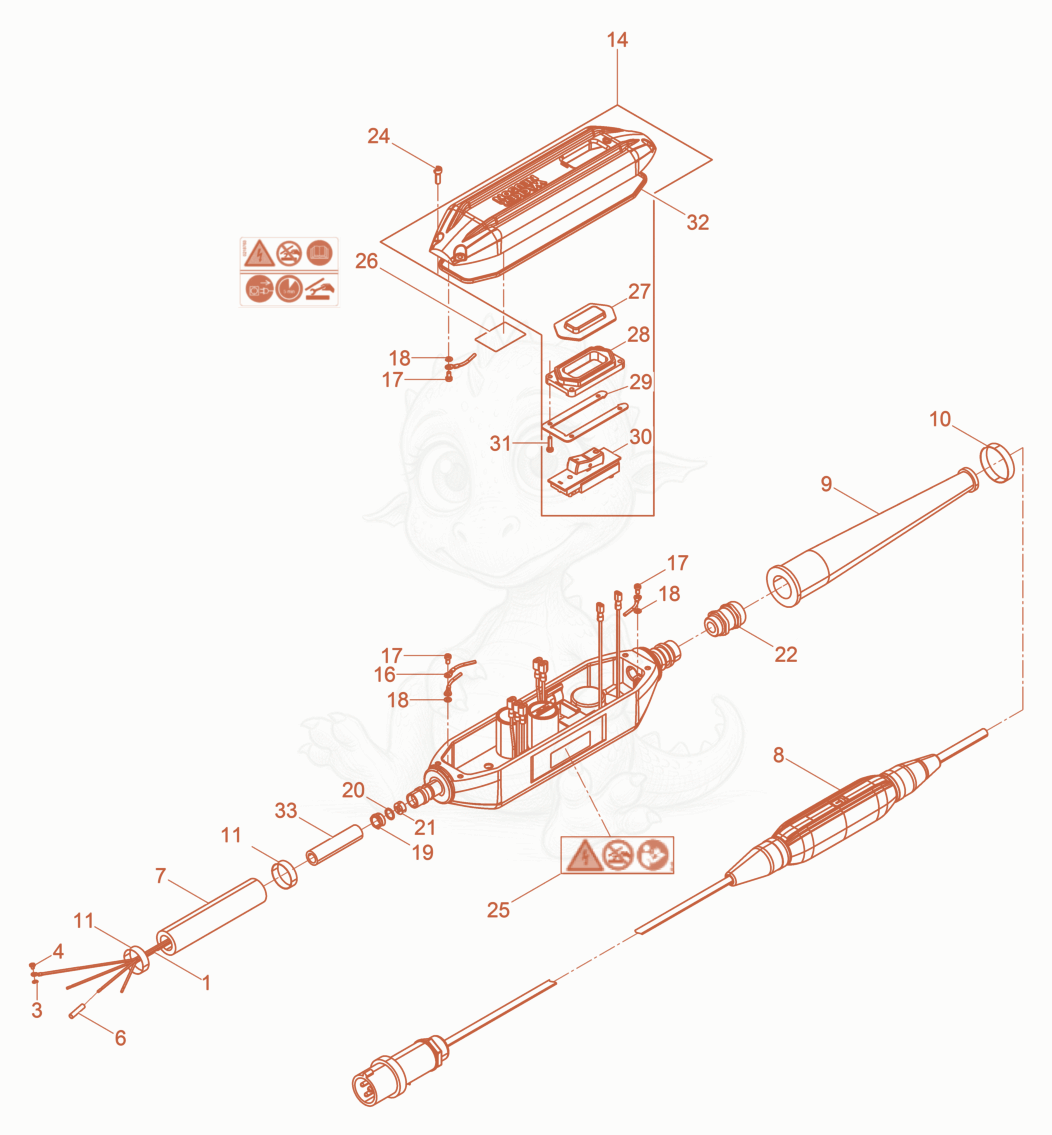

IRFU45/120/5UK Hose Connection cpl. Diagram

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IRFU45/120/5UK, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100072282Not stocked
    Supply line×1
  • 35000200988
    $0.40
    WASHER-LOCK,TOOTHED - 5000200988×1
  • 45000218500
    $0.13
    Screw-Pan Head - 5000218500×1
  • 65000202516
    $1.35
    TERMINAL-SPLICE 24.5-2.5 - 5000202516×3
  • 75000208140
    $684.32
    Flexible tube - 5000208140×1
  • 85100066680Not stocked
    Power cable with personal protection×1
  • 95003008468
    $13.57
    SLEEVE-CABLE REINFORCEMENT - 5003008468×1
  • 105002007121
    $3.14
    Clamp - 5002007121×1
  • 115000128141
    $5.39
    CLAMP - 5000128141×2
  • 145000211292Not stocked
    Cover cpl.×1
  • 165000208643
    $10.21
    Ground wire - 5000208643×1
  • 175000011573
    $0.22
    SCREW M4 X 8 SOC.HD. - 5000011573×3
  • 185000200988
    $0.40
    WASHER-LOCK,TOOTHED - 5000200988×3
  • 195000203577
    $0.58
    SCREW-PRESSURE - 5000203577×1
  • 205000203579
    $0.21
    RING-THRUST - 5000203579×1
  • 215000202933
    $10.48
    PLUG-4 HOLE - 5000202933×1
  • 225100030434
    $25.85
    Screw connection M20x1,5 - 5100030434×1
  • 245000219339
    $0.18
    Cheese head screw D912-M5x14-8.8vz. - 5000219339×4
  • 255000219413
    $13.07
    Labels - 5000219413×1
  • 265000218763
    $8.79
    LABEL-WARNING - 5000218763×1
  • 275000129569
    $7.71
    diaphragm - 5000129569×1
  • 285000202103
    $13.96
    Flange - 5000202103×1
  • 295000203024
    $14.78
    Flange - 5000203024×1
  • 305000202101
    $35.41
    Switch - 5000202101×1
  • 315000208645
    $0.22
    SCREW-CHEESE HEAD - 5000208645×4
  • 325000202542
    $9.33
    Gasket - 5000202542×1
  • 335100005155
    $1.12
    Spacer 11x3x50 - 5100005155×1
