IRFU65/120/5 US

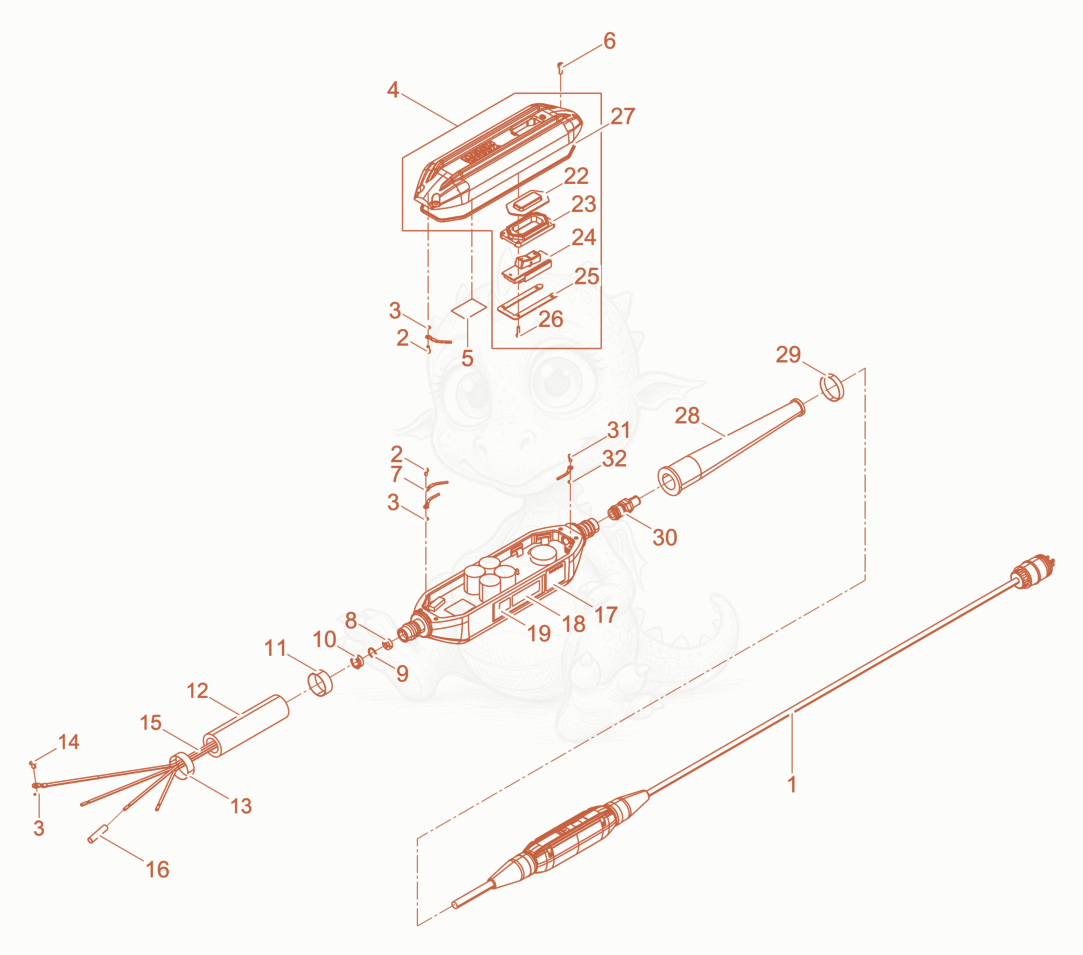

IRFU65/120/5US Hose Connection cpl. Diagram
- Power cable with personal protection US - 5100047022×1
- SCREW M4 X 8 SOC.HD. - 5000011573×2
- WASHER-LOCK,TOOTHED - 5000200988×3
- COVER - 5000208875×1
- LABEL-WARNING - 5000218763×1
- Cheese head screw D912-M5x14-8.8vz. - 5000219339×4
- Ground wire - 5000208643×1
- 4 hole plug - 5000202915×1
- RING-THRUST - 5000203578×1
- SCREW-PRESSURE - 5000203576×1
- CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×1
- HOSE 25 X 7.5 X 5000MM S175KB - 5000129446×1
- CLAMP 201/J206-45X5/8 ,BAND-IT - 5002006823×1
- Screw-Pan Head - 5000218500×1
- supply line - 5000218591×1
- TERMINAL-SPLICE 24.5-2.5 - 5000202516×3
- LABEL-PROPOSITION 65 GENERAL - 5100045462×1
- Labels - 5000219413×1
- Label - 5000219081×1
- diaphragm - 5000129569×1
- Flange - 5000202103×1
- Switch - 5000202101×1
- Flange - 5000203024×1
- SCREW-CHEESE HEAD - 5000208645×4
- Gasket - 5000208877×1
- SLEEVE-CABLE REINFORCEMENT - 5003008468×1
- Clamp - 5002007121×1
- Cable gland M20x1.5 - 5100046344×1
- SCREW M4 X 8 SOC.HD. - 5000011573×1
- WASHER-LOCK,TOOTHED - 5000200988×1
