IRFUN38/230V-VIBRATOR

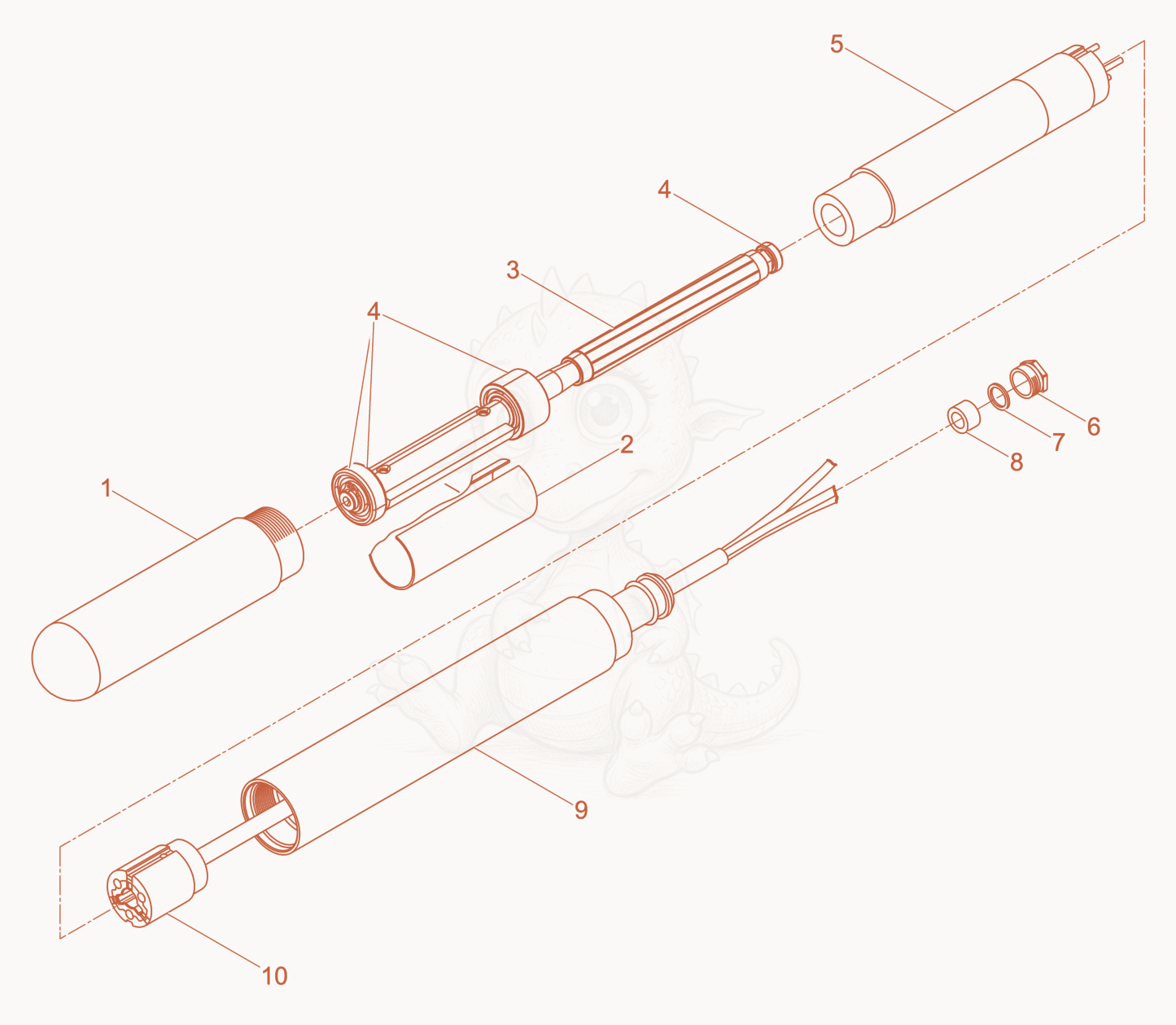

IRFUN38 Internal Vibrator cpl. Diagram

Exploded parts diagram of the Internal Vibrator cpl. of a Wacker Neuson IRFUN38, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000105713
    $451.23
    TUBE-LOWER x-5100006232 - 5000105713×1
  • 25000106055
    $37.97
    SLEEVE-DISTANCE - 5000106055×1
  • 35000108377
    $371.00
    ROTOR-COMPLETE - 5000108377×1
  • 45000202268
    $169.86
    BEARING SET - 5000202268×1
  • 55000106975
    $697.64
    Stator X-5000219448 - 5000106975×1
  • 65002003793
    $1.33
    CONNECTOR-BODY - 5002003793×1
  • 75002003795
    $0.26
    RING SEAL 10 X 13.5 X 0.8,PG9 - 5002003795×1
  • 85002003792
    $0.48
    SEAL-RING 9 X 13.5 X 5.5 - 5002003792×1
  • 95000105710
    $345.16
    TUBE-UPPER - 5000105710×1
  • 105000124599
    $221.44
    CONNECTOR-ELECTRICAL - 5000124599×1
