Internal vib. IRFUN 57 GV

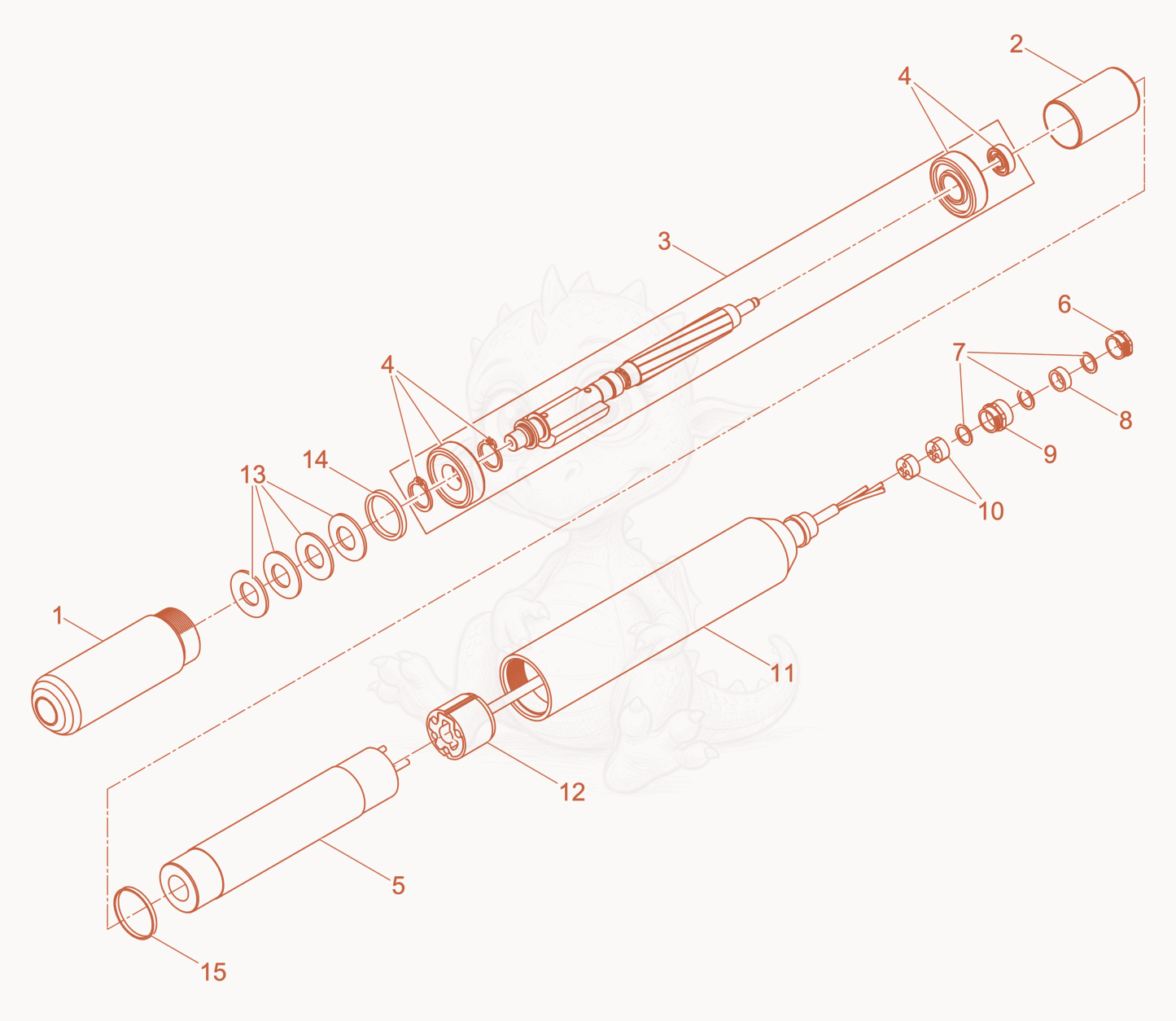

IRFUN57GV Internal Vibrator cpl. Diagram

Exploded parts diagram of the Internal Vibrator cpl. of a Wacker Neuson IRFUN57GV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000202838
    $281.25
    TUBE-LOWER,RUBBER - 5000202838×1
  • 25000202834
    $49.73
    SLEEVE-DISTANCE - 5000202834×1
  • 35000202830
    $432.03
    ROTOR-COMPLETE - 5000202830×1
  • 45000202267
    $215.91
    BEARING SET - 5000202267×1
  • 55000106983
    $697.64
    Stator X-5000219087 - 5000106983×1
  • 65003008191
    $2.96
    CONNECTOR-BODY PG21 - 5003008191×1
  • 75002000058
    $0.22
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×3
  • 85002003770
    $1.35
    SEAL-RING 15 X 20.5 X 7.5 - 5002003770×1
  • 95003008326
    $3.89
    CONNECTOR-ADAPTER PG16 DN46320 - 5003008326×1
  • 105003009151
    $1.60
    GROMMET .230 ID,PLUG,4-HOLE - 5003009151×2
  • 115000108222
    $306.57
    TUBE-UPPER - 5000108222×1
  • 125000203422
    $116.78
    WIRE-ELECTRIC CONNECTION - 5000203422×1
  • 135000202829
    $1.10
    SPRING-CUP - 5000202829×4
  • 145000202828
    $17.51
    Spacer - 5000202828×1
  • 155000202836
    $6.81
    RING - 5000202836×1
