Int. Vib. w. Conv. IRSE-FU 30/230

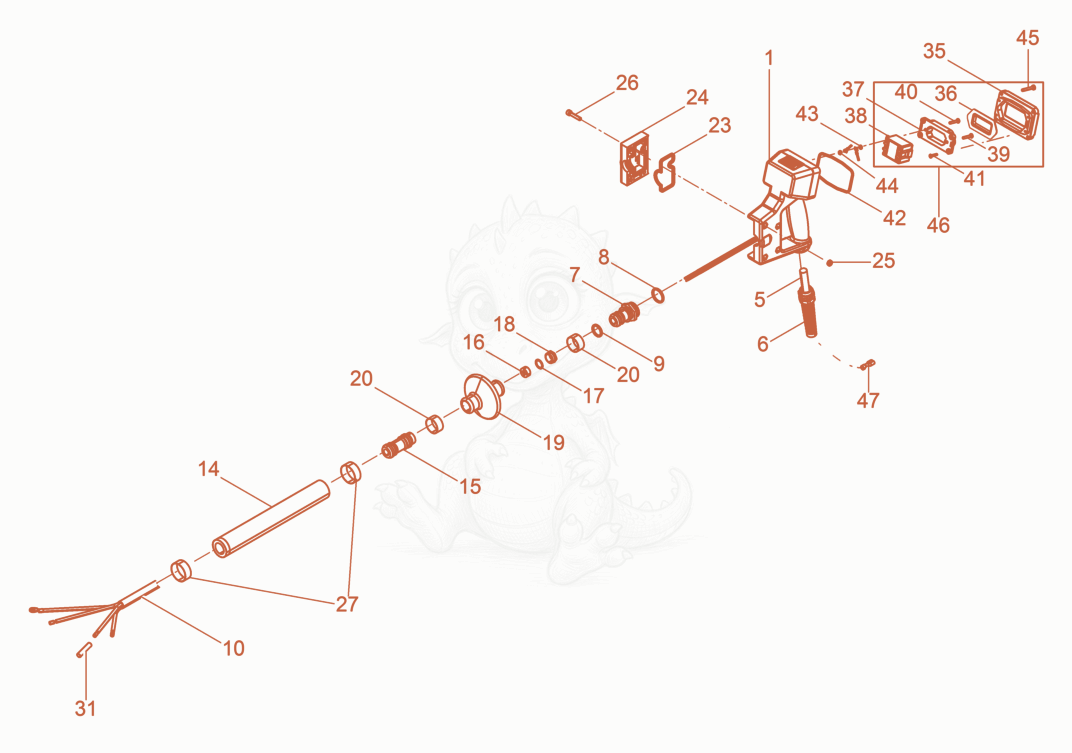

IRSE-FU30/230 Hose connection Diagram
- housing - 5000129128×1
- CABLE-POWER SUPPLY - 5000218019×1
- SCREW-CONNECTION - 5000126728×1
- grommet - 5000126848×1
- O-ring - 5000202234×1
- O-ring - 5000202235×1
- 105000219412Not stockedSupply line×1
- HOSE-PROTECTIVE - 5000206789×1
- Grommet - 5000218083×1
- 165100002162Not stocked4 hole plug×1
- RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
- CONNECTOR-BODY PG21 - 5003008191×1
- PLUG- AM 22X1.5 - 5000094858×1
- CLAMP - 5000128141×2
- seal - 5000129131×2
- cover - 5000129129×2
- NUT M6 8,HEX - 5000010880×4
- SCREW M6 X 30 SOC.HD. - 5000011549×4
- CLAMP 201/J204-32X1/2 ,BAND-IT - 5002007010×2
- TERMINAL-SPLICE 24.5-2.5 - 5000202516×3
- cover - 5000128145×1
- diaphragm - 5000129569×1
- flange - 5000129568×1
- Switch - 5000218982×1
- SCREW-COUNTERSUNK - 5000203308×1
- Bolt-Countersunk - 5000218985×1
- Oval head screw - 5100001329×4
- O-ring - 5000202233×1
- WASHER-LOCK,TOOTHED - 5000200988×1
- NUT M4 8,HEX. - 5000010872×4
- Oval head screw - 5100001330×4
- Cover - 5000219385×1
- Flat socket - 5000219135×1
