IRSEN FU38,115/60HZ,1 METER

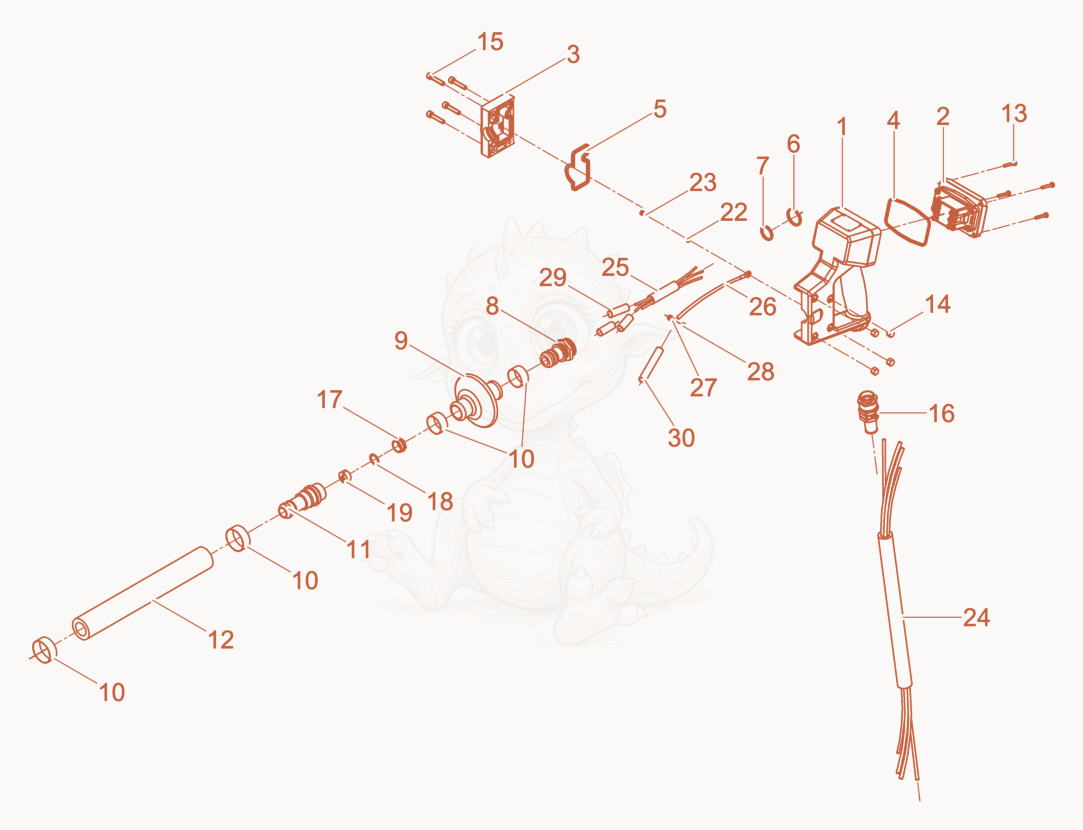

IRSEN-FU38/115WC Hose Connection cpl. Diagram
- housing - 5000129128×1
- Cover - 5000129127×1
- cover - 5000129129×1
- O-ring - 5000202233×1
- seal - 5000129131×1
- O-ring - 5000202234×1
- O-ring - 5000202235×1
- grommet - 5000126848×1
- PLUG- AM 22X1.5 - 5000094858×1
- CLAMP - 5000128141×4
- Socket - 5000095166×1
- Protective Hose - 5000211340×1
- SCREW B4.8 X 25 - 5000103185×4
- NUT M6 8,HEX - 5000010880×4
- SCREW M6 X 30 SOC.HD. - 5000011549×4
- SCREW-CONNECTION - 5000126728×1
- CONNECTOR-BODY PG21 - 5003008191×1
- RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
- GROMMET .230 ID,PLUG,4-HOLE - 5003009151×1
- WASHER B4.3 MS,FLAT - 5000012642×1
- SCREW-CHEESE HEAD - 5000200560×1
- 245000125875Not stockedPower supply cable×1
- supply line - 5000211339×1
- Ground wire - 5000211329×1
- SCREW M4 X 6 MS,CHEESE - 5000013171×1
- NUT M4 MS,HEX. - 5000013178×1
- HOSE-SHRINK FIT - 5000065549×3
- HOSE-SHRINK FIT - 5000125871×1
