Internal Vib. IRSEN 38 GV

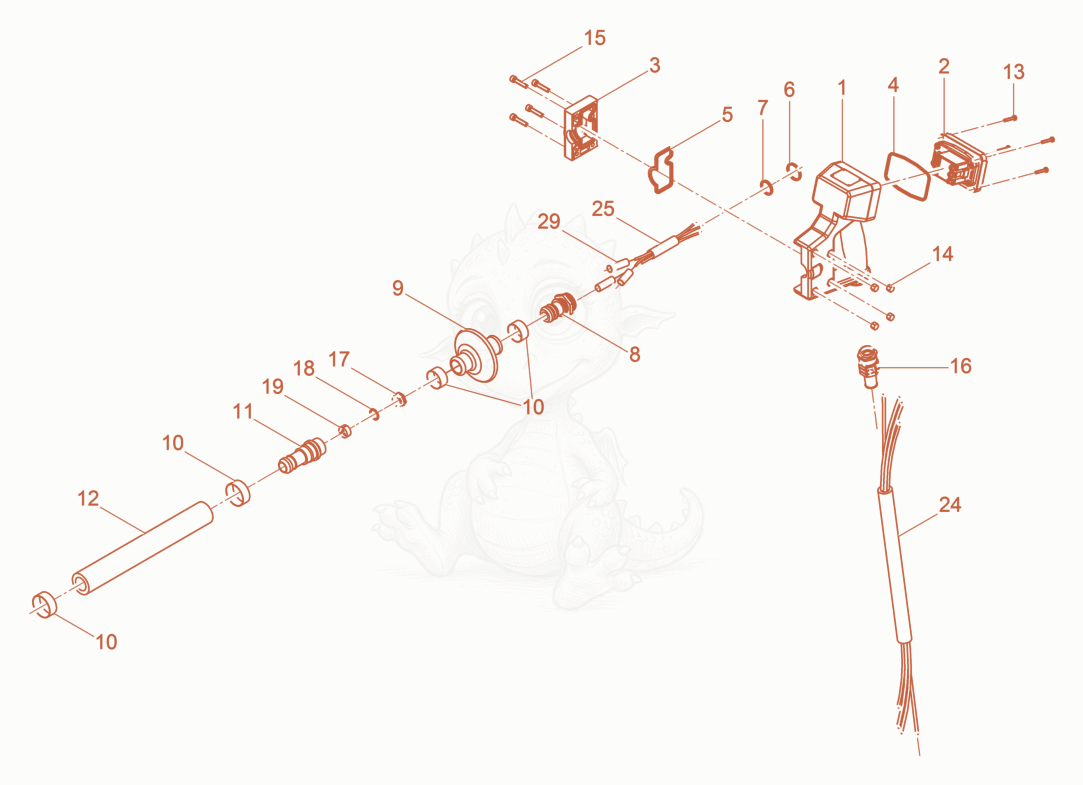

IRSEN38GV Hose Connection cpl. Diagram

Exploded parts diagram of the Hose Connection cpl. of a Wacker Neuson IRSEN38GV, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000129128
    $68.50
    housing - 5000129128×1
  • 25000129127
    $242.19
    Cover - 5000129127×1
  • 35000129129
    $16.90
    cover - 5000129129×1
  • 45000202233
    $7.69
    O-ring - 5000202233×1
  • 55000129131
    $7.96
    seal - 5000129131×1
  • 65000202234
    $6.19
    O-ring - 5000202234×1
  • 75000202235
    $6.19
    O-ring - 5000202235×1
  • 85000126848
    $63.94
    grommet - 5000126848×1
  • 95000094858
    $29.98
    PLUG- AM 22X1.5 - 5000094858×1
  • 105000128141
    $5.39
    CLAMP - 5000128141×4
  • 115000095166
    $47.97
    Socket - 5000095166×1
  • 125000201909
    $169.28
    HOSE-PROTECTIVE - 5000201909×1
  • 135100001330
    $0.79
    Oval head screw - 5100001330×4
  • 145000010880
    $0.03
    NUT M6 8,HEX - 5000010880×4
  • 155000011549
    $0.14
    SCREW M6 X 30 SOC.HD. - 5000011549×4
  • 165000126728
    $23.43
    SCREW-CONNECTION - 5000126728×1
  • 175003008191
    $2.96
    CONNECTOR-BODY PG21 - 5003008191×1
  • 185002000058
    $0.22
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 195100002126
    $2.48
    3 hole plug - 5100002126×1
  • 245000203589Not stocked
    Power supply cable with plug×1
  • 255000206786Not stocked
    Supply line×1
  • 295000202516
    $1.35
    TERMINAL-SPLICE 24.5-2.5 - 5000202516×3
  • 315000021201Not stocked
    CEE-plug×1
