Internal Vib. IRSEN 57k/115

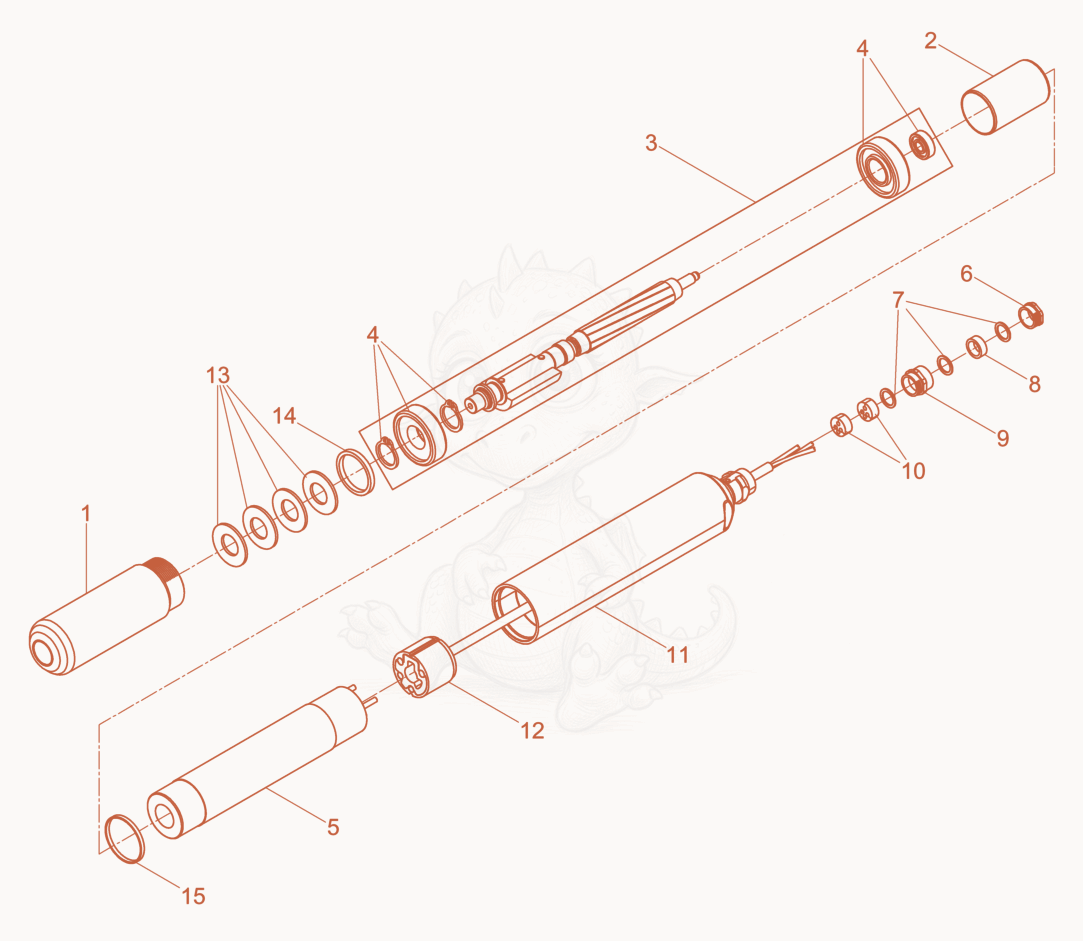

IRSEN57K/115 Internal Vibrator Diagram

Exploded parts diagram of the Internal Vibrator of a Wacker Neuson IRSEN57K/115, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000205944
    $43.47
    SLEEVE-DISTANCE - 5000205944×1
  • 35000108974Not stocked
    Stator×1
  • 45000205949
    $352.92
    TUBE-LOWER - 5000205949×1
  • 55000218503Not stocked
    Upper tube×1
  • 65000205947
    $415.29
    COUPLING-ARMATURE MOTOR - 5000205947×1
  • 75000218640
    $124.14
    ELECTRIC CONNECTION - 5000218640×1
  • 85002000058
    $0.22
    RING SEAL 16 X 20.5 X 0.8,PG16 - 5002000058×1
  • 95100001680
    $5.35
    3 hole plug (PG 16 - 5100001680×2
  • 135000218381
    $13.09
    RING-SPACER - 5000218381×2
  • 145000202829
    $1.10
    SPRING-CUP - 5000202829×4
  • 155000202836
    $6.81
    RING - 5000202836×1
  • 165100002432
    $5.75
    Screw connection cpl. - 5100002432×1
  • 175000202267
    $215.91
    BEARING SET - 5000202267×1
