Rammer KMAT

KMAT Crankcase Honda GXR120 Diagram

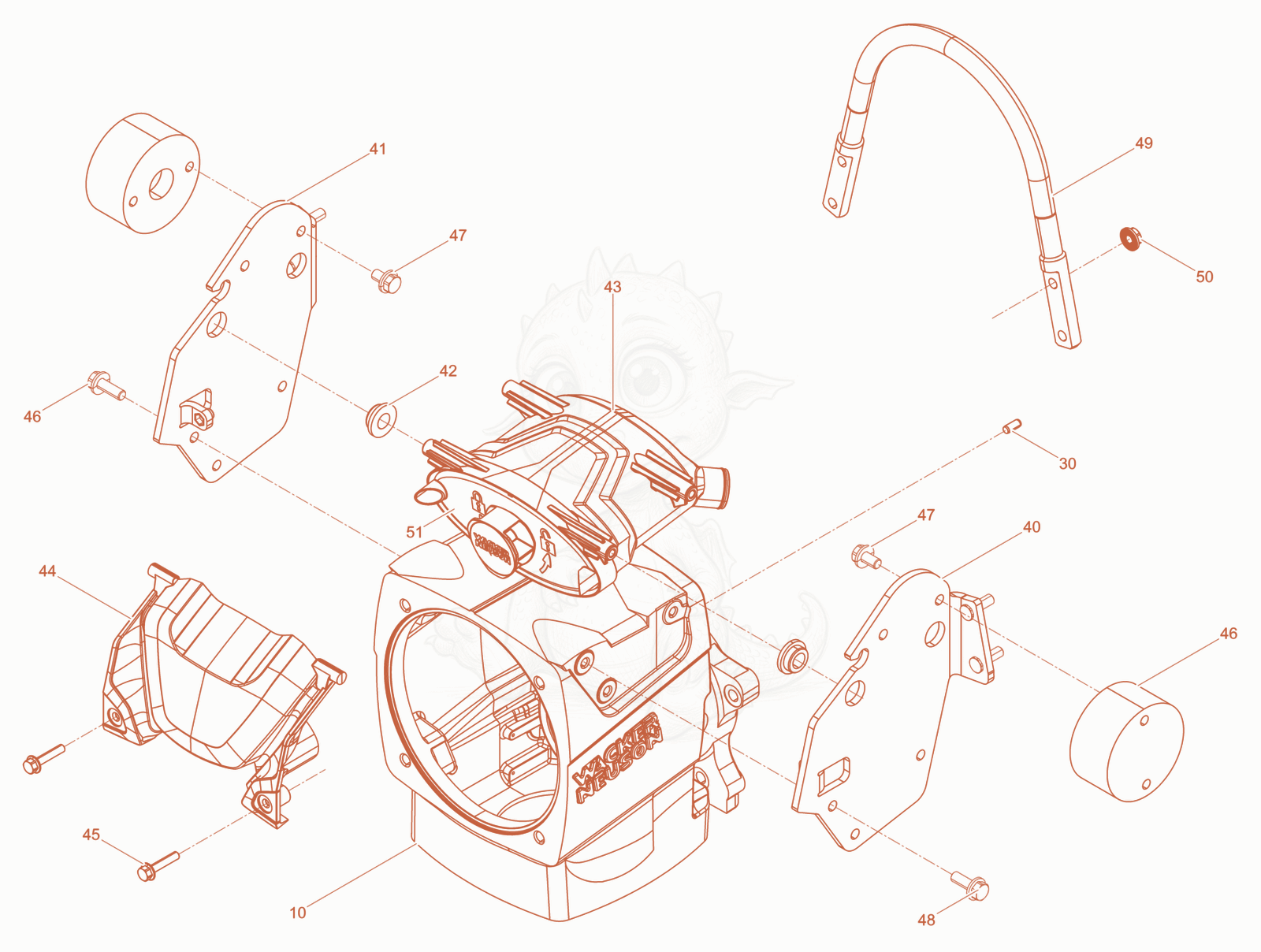

Exploded parts diagram of the Crankcase Honda GXR120 of a Wacker Neuson KMAT, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105100061963
    $463.47
    Crankcase BS-4 - 5100061963×1
  • 305100037204
    $0.44
    Straight pin 6 m6x 14 - 5100037204×2
  • 405100061297
    $210.27
    Side plate BS left - 5100061297×1
  • 415100062524
    $210.27
    Side plate BS right - 5100062524×1
  • 425100065097
    $1.33
    Grommet - 5100065097×4
  • 435100062421
    $69.77
    Air Cleaner Assembly - 5100062421×1
  • 445100061298
    $99.25
    Air cleaner protection - 5100061298×1
  • 455100062984Not stocked
    Hexagonal head cap screw×2
  • 465100032053
    $80.76
    Shockmount - 5100032053×2
  • 475100027072
    $1.77
    Screw M8x16 HHCS,10.9,SEM,w/PC80 Patch - 5100027072×4
  • 485200001667
    $1.68
    SCREW M8X25 HHCS W/201,SEM - 5200001667×6
  • 495100065096
    $52.07
    Lifting point - 5100065096×1
  • 505100017158
    $1.01
    Locknut M 8 - 5100017158×4
  • 515100063083Not stocked
    Air cleaner element×1
  • 525100082020Not stocked
    Prefilter×1
