Converter KTU 1/120/200W

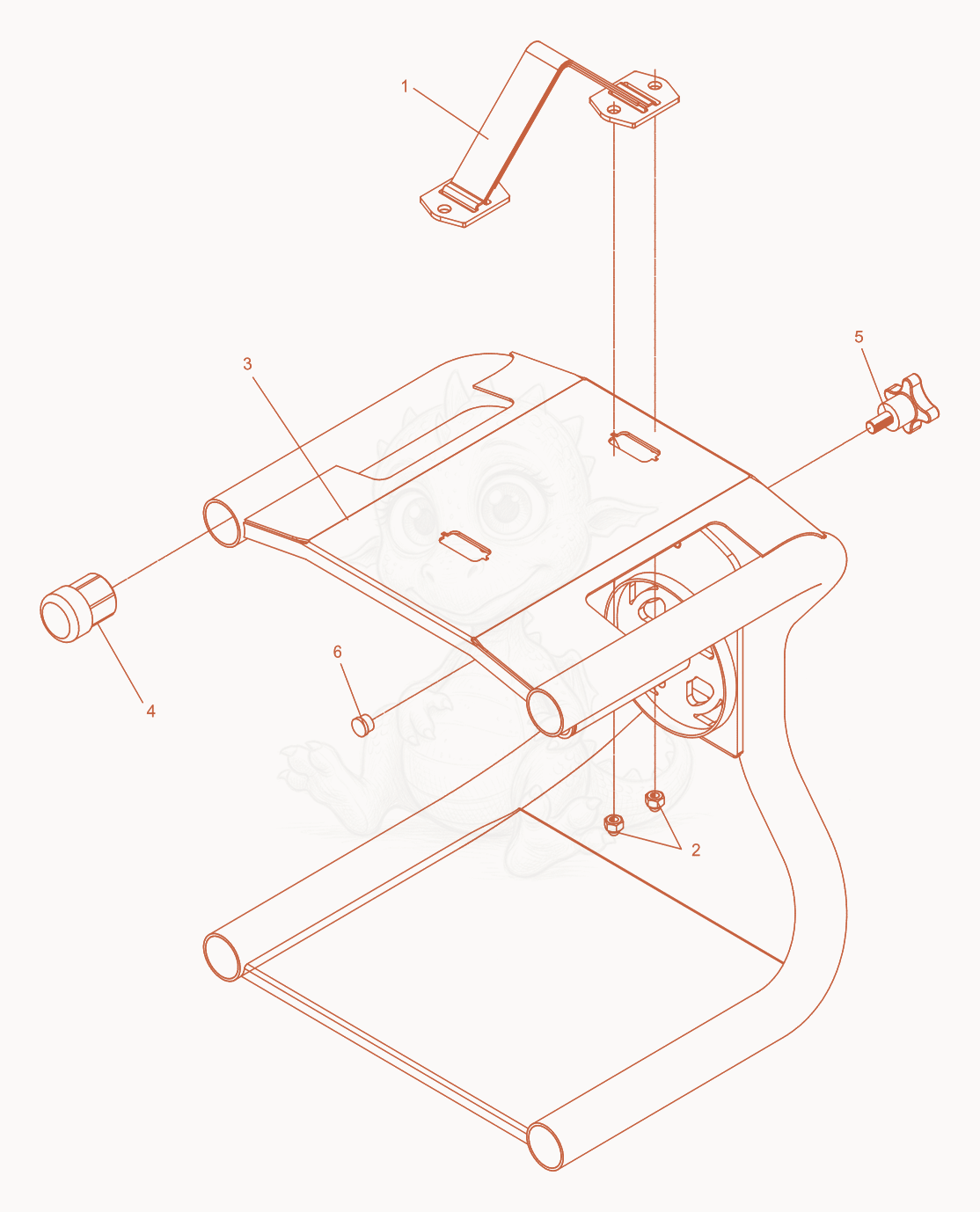

KTU1/120/200W Tubular frame Diagram

Exploded parts diagram of the Tubular frame of a Wacker Neuson KTU1/120/200W, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000202919
    $154.21
    STRAP-LIFTING ATTACHED - 5000202919×1
  • 25000038140
    $1.36
    NUT M8 STAINLESS STEEL - 5000038140×4
  • 35000202355
    $1,254.12
    FRAME-TUBULAR - 5000202355×1
  • 45000202564
    $8.09
    SHOCK ABSORBER-STOP BUFFER - 5000202564×4
  • 55000202961
    $24.21
    HANDLE-STAR GRIP - 5000202961×1
  • 65000202815
    $113.29
    PLATE-THRUST PIECE - 5000202815×1
