LB1-LIGHT BALLOON,CE230V

LB1 Tripod Diagram

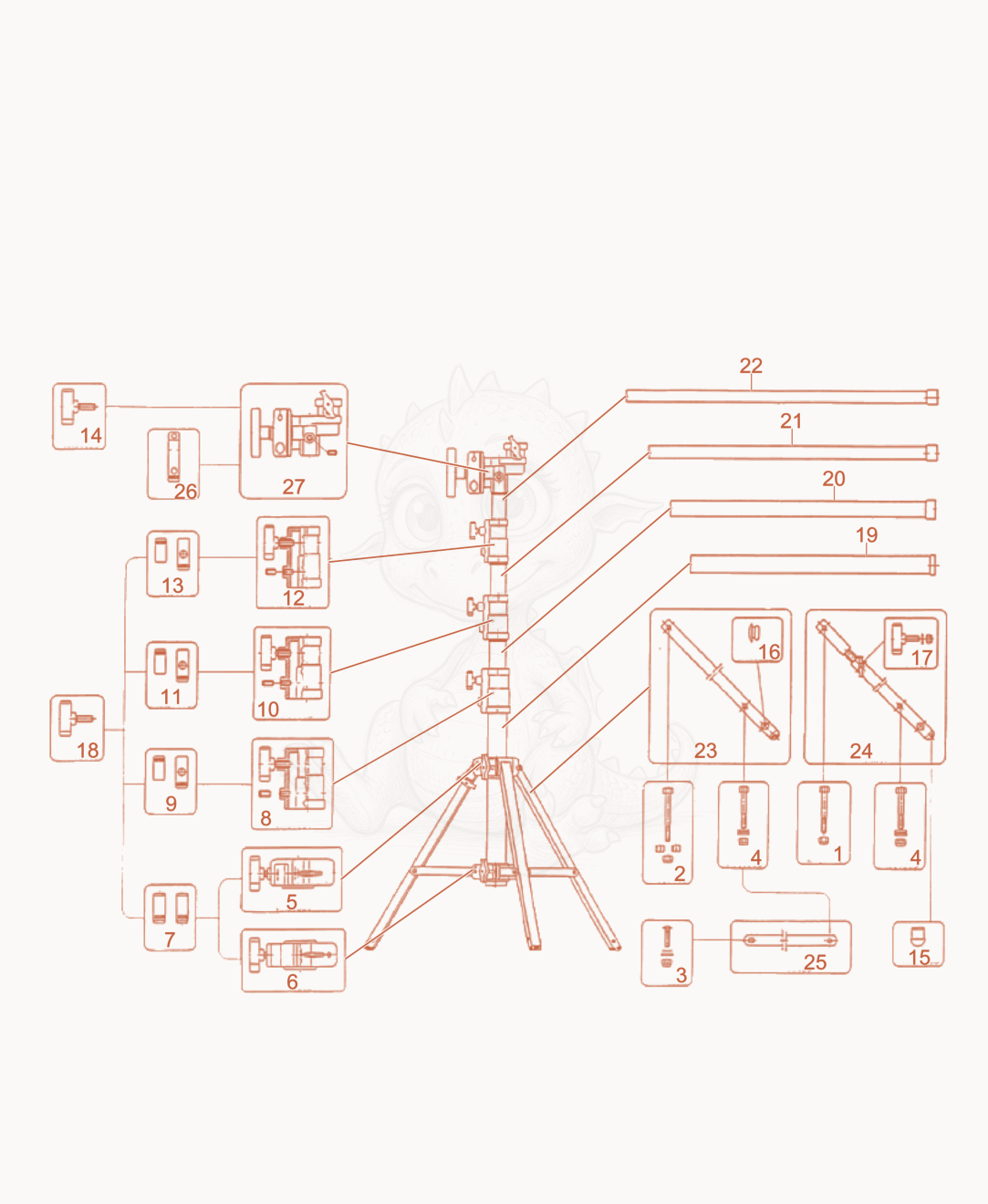

Exploded parts diagram of the Tripod of a Wacker Neuson LB1, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000178565Not stocked
    Hardware Set×1
  • 25000178566Not stocked
    Hardware Set×1
  • 35000178567Not stocked
    Hardware Set×1
  • 45000178568Not stocked
    Hardware Set×1
  • 55000178569Not stocked
    Leg support receptacle×1
  • 65000178570Not stocked
    Leg support receptacle×1
  • 75000178571Not stocked
    Pin×1
  • 85000178572Not stocked
    Pole receptacle×1
  • 95000178573Not stocked
    Pin×1
  • 105000178574Not stocked
    Pole receptacle×1
  • 115000178575Not stocked
    Pin×1
  • 125000178576Not stocked
    Pole receptacle×1
  • 135000178577Not stocked
    Pin×1
  • 145000178578Not stocked
    T-Handle×1
  • 155000178579Not stocked
    Plug×1
  • 165000178580Not stocked
    Pad×1
  • 175000178581Not stocked
    T-Handle×1
  • 185000178582Not stocked
    T-Handle×1
  • 195000178583Not stocked
    Pole extension×1
  • 205000178584Not stocked
    Pole extension×1
  • 215000178585Not stocked
    Pole extension×1
  • 225000178586Not stocked
    Pole extension×1
  • 235000178587Not stocked
    Leg support×1
  • 245000178588Not stocked
    Leg support×1
  • 255000178589Not stocked
    Brace×1
  • 265000178590Not stocked
    Pivot pin×1
  • 275000178591Not stocked
    Upper pole receptacle×1
