LB 80M

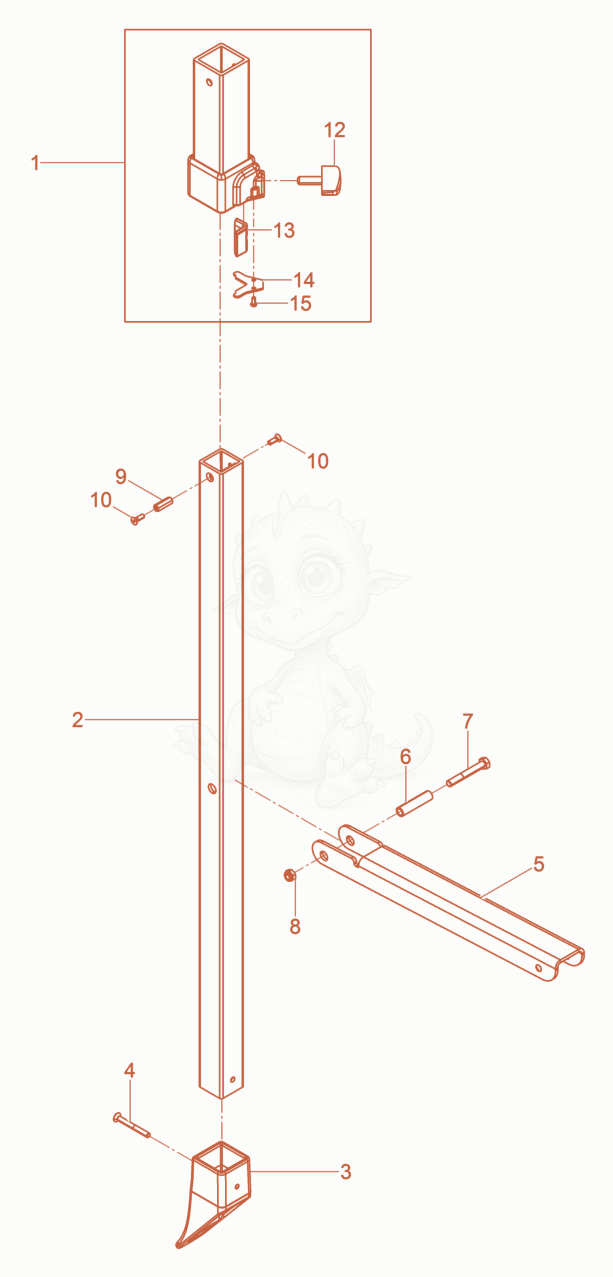

LB80M/230/50 Adjustable tripod leg Diagram
- tripod leg above cpl. - 5100003870×1
- tripod leg below 40 mm - 5100004000×1
- Tripod foot - 5100002906×1
- Countersunk screw M 6x 55 - 5100004140×1
- Brace - 5100002110×1
- Collar - 5100002193×1
- SCREW M8 X 60 HX.HD. - 5000011345×1
- NUT-LOCK M8 HEX - 5000010367×1
- Hexagon nut M 5 - 25 lg. - 5100005714×1
- SCREW-COUNTER SUNK M5 X 16 - 5000202862×2
- Star grip - 5100002199×1
- Clamping piece - 5100002139×1
- Plate - 5100002142×1
- Oval head screw M 4x 10 - TX20 - 5100005085×2
