Light Balloon LBM 1/230V

LBM1/230V Cart Transportation cpl. Diagram

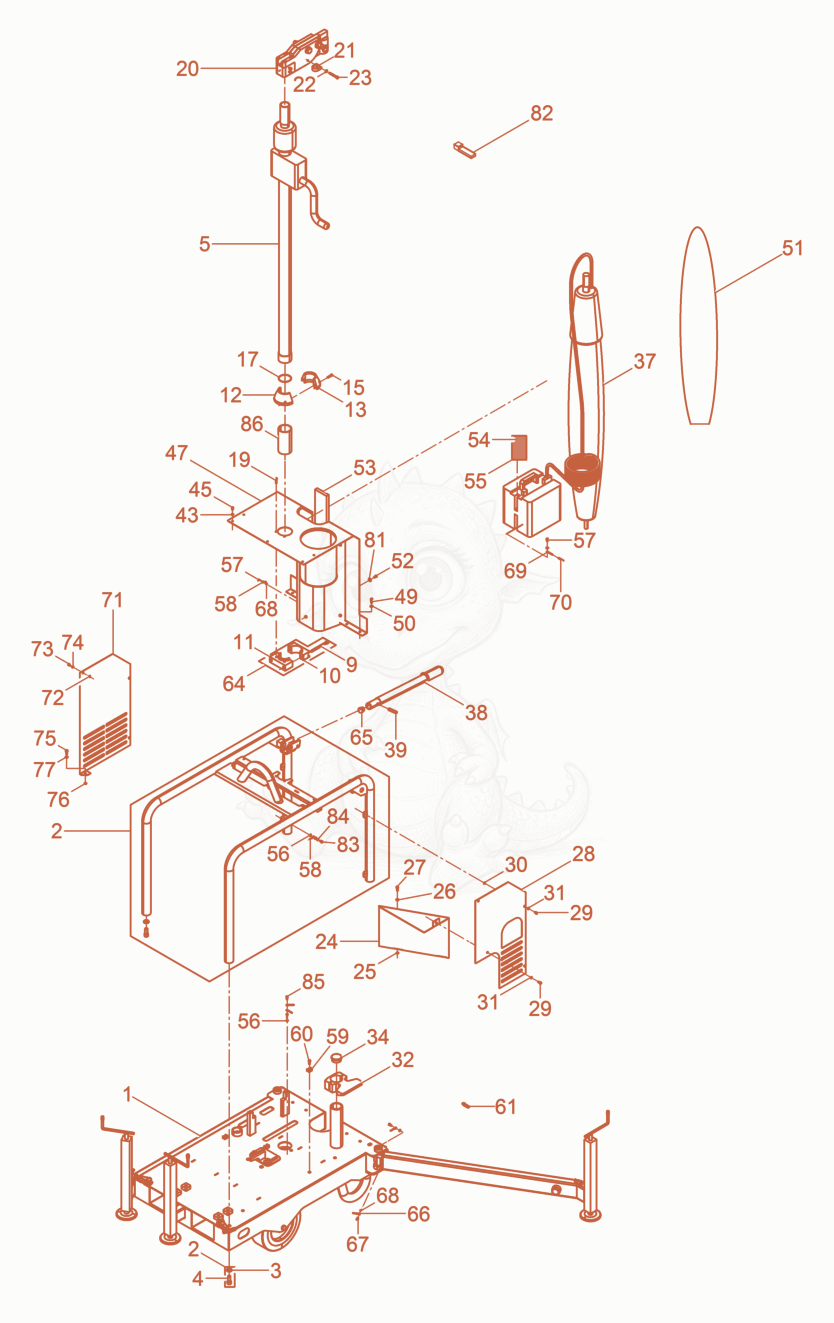

Exploded parts diagram of the Cart Transportation cpl. of a Wacker Neuson LBM1/230V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15003120192Not stocked
    Lower Part cpl.×1
  • 25000219399Not stocked
    Protective Frame cpl.×1
  • 35000010620
    $0.26
    WASHER B13 FLAT - 5000010620×4
  • 45000011529
    $0.84
    SCREW M12 X 30 SOC.HD - 5000011529×4
  • 55000219511Not stocked
    tripod cpl.×1
  • 95000012380Not stocked
    Cheese head screw×2
  • 105003120008Not stocked
    Clamping piece left×1
  • 115003120007Not stocked
    Clamping piece right×1
  • 125000219505Not stocked
    Deflector×1
  • 135000219506Not stocked
    Deflector×1
  • 155000219512Not stocked
    PT Screw×2
  • 175000219515Not stocked
    O-ring×2
  • 195000219512Not stocked
    PT Screw×2
  • 205000214995Not stocked
    Joint cpl.×1
  • 215003120215Not stocked
    Clamp×1
  • 225000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 235003120216Not stocked
    Cheese head screw×1
  • 245003120068Not stocked
    Heat Shield×1
  • 255000202098
    $2.12
    WASHER LOCK A6.4 - 5000202098×2
  • 265000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 275000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×2
  • 285003120109Not stocked
    Hood×1
  • 295000043307
    $0.13
    SCREW M5 X 12 SOC.HD. - 5000043307×4
  • 305000201230
    $1.33
    WASHER-LOCK,TOOTHED - 5000201230×3
  • 315000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×4
  • 325000219527Not stocked
    Step×1
  • 345003120214Not stocked
    Plug×1
  • 375000215021Not stocked
    Balloon cpl.×1
  • 385000219507Not stocked
    Handle×2
  • 395100001232Not stocked
    Straight pin×2
  • 435000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×5
  • 455000049190
    $0.14
    SCREW M5 X 8 SOC.HD. - 5000049190×5
  • 475003120186Not stocked
    Guard plate×1
  • 495000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×4
  • 505000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 515000216547Not stocked
    Upper protective cover×1
  • 525000024617
    $0.22
    SCREW M5 X 10 SOC.HD. - 5000024617×6
  • 535000216546Not stocked
    protective cover×1
  • 545000012381
    $8.06
    SCREW M10 X 16 SOC.HD. - 5000012381×2
  • 555000219398Not stocked
    Fixing Ballast×1
  • 565000201230
    $1.33
    WASHER-LOCK,TOOTHED - 5000201230×2
  • 575000024617
    $0.22
    SCREW M5 X 10 SOC.HD. - 5000024617×2
  • 585000219407Not stocked
    Ground wire×2
  • 595000219299Not stocked
    Cable Clamp×3
  • 605000069425Not stocked
    Cheese head screw×3
  • 615000098964
    $1.51
    CABLE TIE T 30 LL - 5000098964×6
  • 645000219393Not stocked
    Fixing set×1
  • 655100001233Not stocked
    Plug×2
  • 665000219406Not stocked
    Ground wire×2
  • 675000024617
    $0.22
    SCREW M5 X 10 SOC.HD. - 5000024617×4
  • 685000201230
    $1.33
    WASHER-LOCK,TOOTHED - 5000201230×5
  • 695100001269Not stocked
    Ground wire×1
  • 705000219370Not stocked
    Hose piece×1
  • 715003120164Not stocked
    Hood×1
  • 725000201230
    $1.33
    WASHER-LOCK,TOOTHED - 5000201230×3
  • 735000049190
    $0.14
    SCREW M5 X 8 SOC.HD. - 5000049190×3
  • 745000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×3
  • 755000011553
    $0.15
    SCREW M6 X 16 SOC.HD. - 5000011553×1
  • 765000202098
    $2.12
    WASHER LOCK A6.4 - 5000202098×1
  • 775000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×1
  • 815000010372
    $0.03
    WASHER B5.3 FLAT - 5000010372×6
  • 825000047388
    $0.18
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×2
  • 835000049190
    $0.14
    SCREW M5 X 8 SOC.HD. - 5000049190×1
  • 845000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×2
  • 855000043307
    $0.13
    SCREW M5 X 12 SOC.HD. - 5000043307×1
  • 865100002074Not stocked
    Shrink-fit hose×1
