Light balloon LBS80M

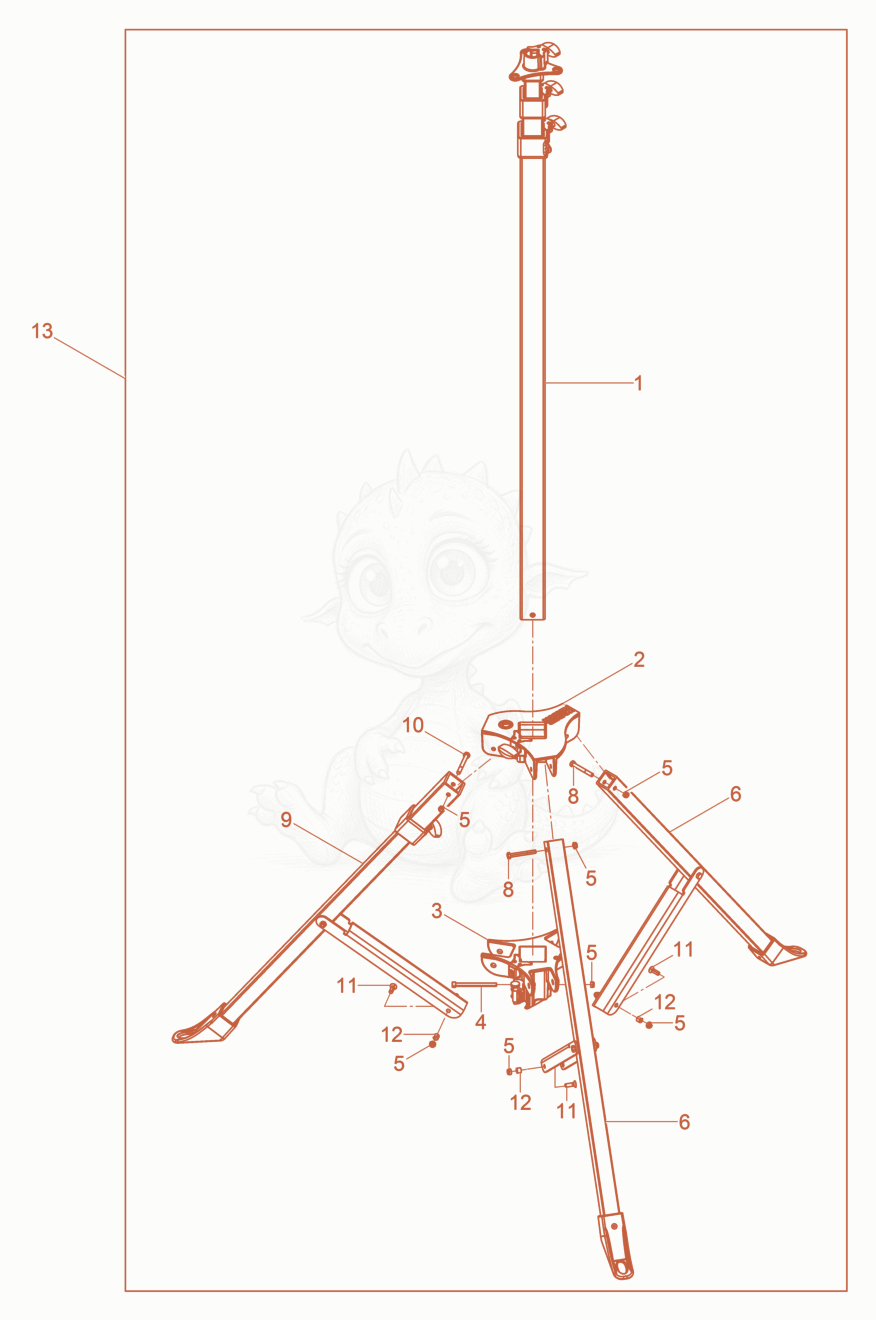

LBS80M/230/50 tripod Diagram

Exploded parts diagram of the tripod of a Wacker Neuson LBS80M/230/50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100002223
    $1,328.07
    Telescopic mast cpl. - 5100002223×1
  • 25100002206
    $218.83
    Slide holder cpl. - 5100002206×1
  • 35100003080
    $653.30
    Fixing Bracket cpl. - 5100003080×1
  • 45000012380Not stocked
    Cheese head screw×1
  • 55000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×10
  • 65100002222
    $243.45
    Fixed tripod leg cpl. - 5100002222×2
  • 85000011346
    $1.06
    SCREW M8 X 65 HX.HD. - 5000011346×2
  • 95100002208
    $1,087.64
    Adjustable tripod leg cpl. - 5100002208×1
  • 105000011348
    $0.37
    SCREW M8 X 75 HX.HD. - 5000011348×1
  • 115000124858
    $0.22
    SCREW M8X250 8.8,FL,GL - 5000124858×6
  • 125100002192
    $5.18
    Collar - 5100002192×6
  • 135100002078Not stocked
    tripod cpl.×1
