Ballast 120V/60Hz/US

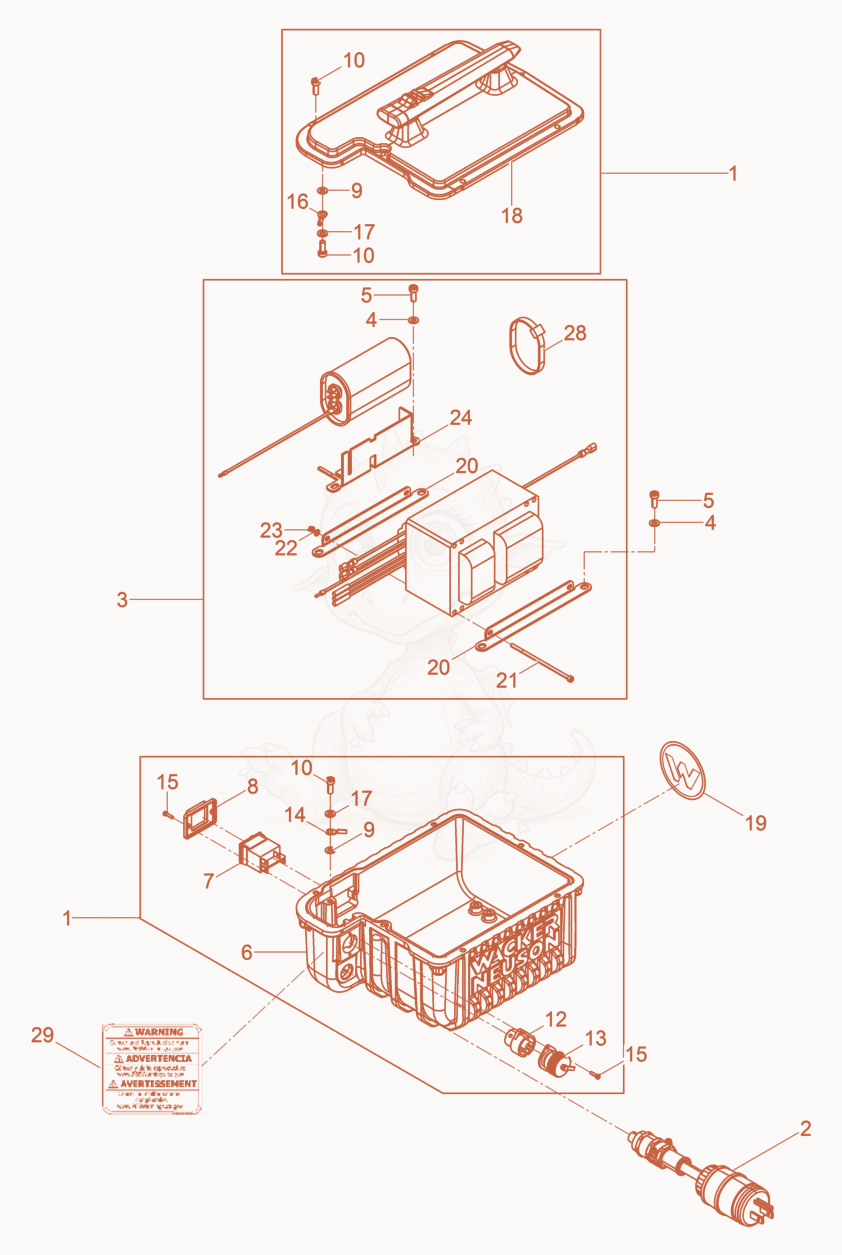

LBV120/60US Ballast Diagram
- Housing cpl. - 5100009963×1
- Power supply cable cpl. - 5100005955×1
- Ballast 120V/60Hz kpl. - 5100002303×1
- Contact disk 6 - 5100004312×6
- Cheese head screw M6x16 TX30 - 5100006110×6
- Housing - 5100006136×1
- Switch 15 A - 5100002281×1
- Diaphragm - 5100002196×1
- Contact disk 6 - 5100004312×2
- Cheese head screw M6x16 TX30 - 5100006110×8
- Soket - 5100002306×1
- Protective cap IP 67 - 5100002307×1
- Ground wire cpl. - 5100004506×1
- Screw M3x12-CE-TX10 - 5100006109×4
- Ground wire cpl. - 5100009937×1
- WASHER 6.4 - 5000010744×2
- Cover cpl. - 5100006135×1
- Decal symbol 56 - 5000222085×1
- Plate - 5100006063×2
- Cheese head screw M4x80 - 5100001426×2
- Contact disk 4 - 5100004421×2
- NUT-LOCK M4 HEX. - 5000010370×2
- Plate - 5100000019×1
- CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×1
- LABEL-PROPOSITION 65 GENERAL - 5100045462×1
