LBV 230/50

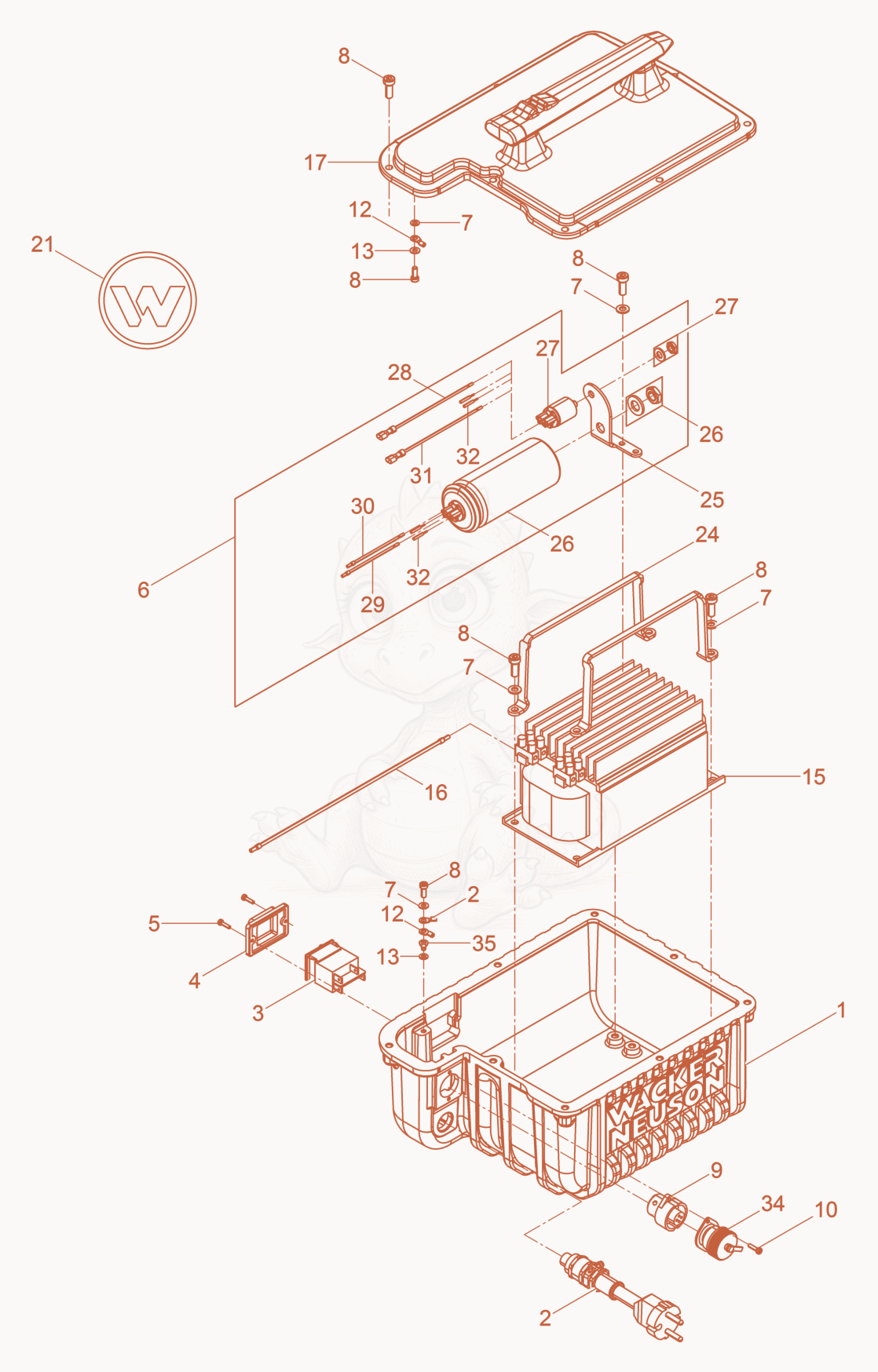

LBV230/50 Ballast Diagram

Exploded parts diagram of the Ballast of a Wacker Neuson LBV230/50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100006136
    $697.84
    Housing - 5100006136×1
  • 25100004515Not stocked
    Power supply cable cpl.×1
  • 35100002195Not stocked
    Switch×1
  • 45100002196
    $5.26
    Diaphragm - 5100002196×1
  • 55100006109
    $0.22
    Screw M3x12-CE-TX10 - 5100006109×4
  • 65100050602Not stocked
    power factor correction cpl.×1
  • 75100004312
    $0.22
    Contact disk 6 - 5100004312×8
  • 85100006110
    $0.35
    Cheese head screw M6x16 TX30 - 5100006110×14
  • 95100002306
    $36.71
    Soket - 5100002306×1
  • 105100002307
    $10.57
    Protective cap IP 67 - 5100002307×2
  • 125100009937
    $22.69
    Ground wire cpl. - 5100009937×1
  • 135000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 155100004176Not stocked
    Ballast×1
  • 165100004565Not stocked
    Electric wire cpl.×1
  • 175100006135
    $472.05
    Cover cpl. - 5100006135×1
  • 215000222085
    $27.72
    Decal symbol 56 - 5000222085×1
  • 245100005157Not stocked
    Plate×2
  • 255100002188Not stocked
    Plate×1
  • 265100050604Not stocked
    Capacitor×1
  • 275100004134Not stocked
    Electronic Discharge Unit×1
  • 285100004558Not stocked
    Electric wire cpl.×1
  • 295100004570Not stocked
    Electric wire cpl.×1
  • 305100004563Not stocked
    Electric wire cpl.×1
  • 315100004573Not stocked
    Electric wire cpl.×1
  • 325100005843Not stocked
    Electric wire cpl.×1
  • 335100005846Not stocked
    Electric wire cpl.×1
  • 355100004506
    $25.69
    Ground wire cpl. - 5100004506×1
