LTC4 LIGHT TOWER

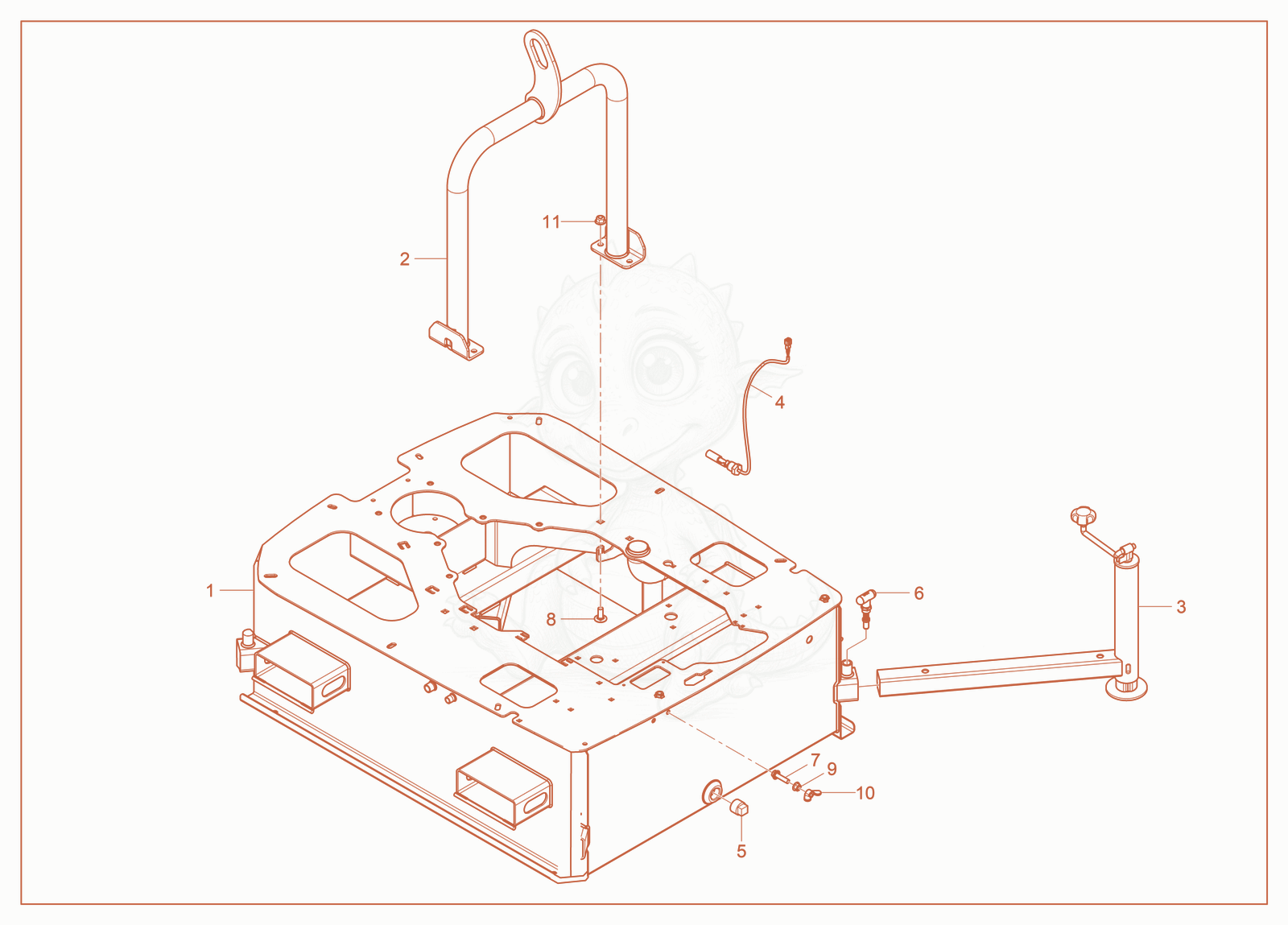

LTC4 Skid Diagram

Exploded parts diagram of the Skid of a Wacker Neuson LTC4, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100080729Not stocked
    WELDMENT CHASSIS LTC×1
  • 25100067774
    $394.38
    WELDMENT LIFT STRUCTURE - 5100067774×1
  • 35100080758Not stocked
    JACK 2000LB×4
  • 45100071583Not stocked
    SWITCH FLUID LEVEL×1
  • 55100058127
    $7.80
    PLUG PIPE 1 IN SQ HD NPT - 5100058127×1
  • 65100027628
    $20.46
    PIN-SPRING OUTRIGGER LTV - 5100027628×4
  • 75000115628
    $1.80
    SCREW M10X40,HEX SERR,FLG,ZP - 5000115628×1
