LTN4Y 120V/60Hz

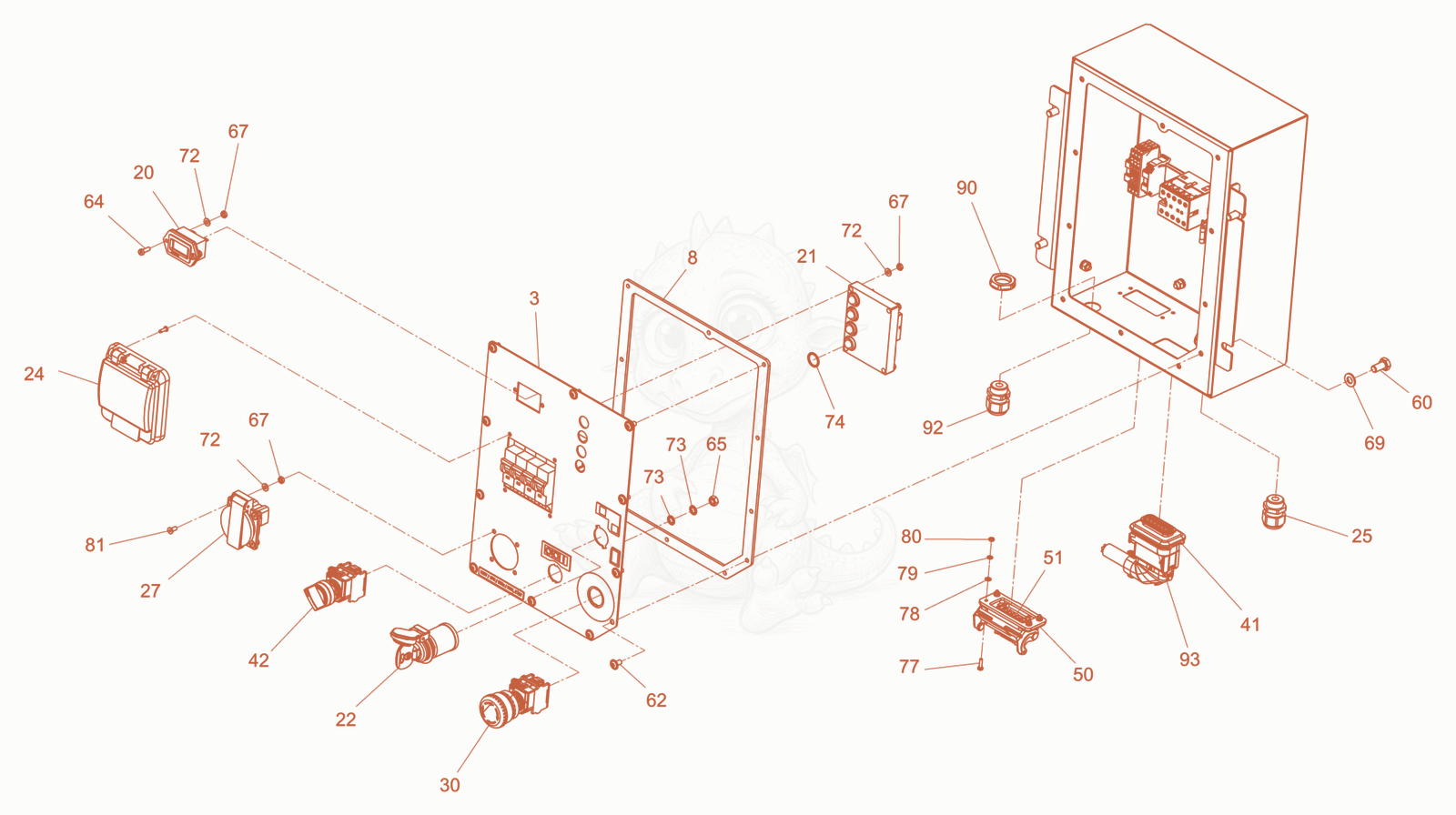

LTN4Y120V/60HZ control panel Diagram

Exploded parts diagram of the control panel of a Wacker Neuson LTN4Y120V/60HZ, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100007646Not stocked
    Front panel×1
  • 85100007457Not stocked
    Gasket×1
  • 205100007285Not stocked
    working hour meter×1
  • 215100007242Not stocked
    Engine control lamp×1
  • 225100006721
    $186.25
    Ignition switch - 5100006721×1
  • 245100007458Not stocked
    Inspection window×1
  • 255100007275Not stocked
    Screw connection×1
  • 275100007647Not stocked
    Socket×1
  • 305100007459Not stocked
    Emergency stop switch×1
  • 415100007460Not stocked
    plug housing×1
  • 425100007258Not stocked
    Rotary switch×1
  • 505100007461Not stocked
    plug housing×1
  • 515100007462Not stocked
    plug connector×1
  • 605100006558
    $3.76
    Hexhead screw - 5100006558×4
  • 625100007265Not stocked
    Oval head screw×11
  • 645100007266Not stocked
    Cheese head screw×2
  • 655100006560
    $0.62
    Nut - 5100006560×1
  • 675100007216Not stocked
    hexagon nut×10
  • 695100006553
    $0.88
    Washer - 5100006553×4
  • 725100007062Not stocked
    washer×10
  • 735100007268Not stocked
    Fan type lock washer×2
  • 745100007269Not stocked
    O-ring×4
  • 775100007463Not stocked
    Countersunk screw×4
  • 785100007401Not stocked
    Washer×4
  • 795100007402Not stocked
    Washer×4
  • 805100007403Not stocked
    Hexagon nut×4
  • 815100006853
    $1.73
    Countersunk screw - 5100006853×4
  • 905100007464Not stocked
    Counter nut×1
  • 925100007465Not stocked
    Screw connection×1
  • 935100007466Not stocked
    Fixing bar×1
