LTN5Y SA

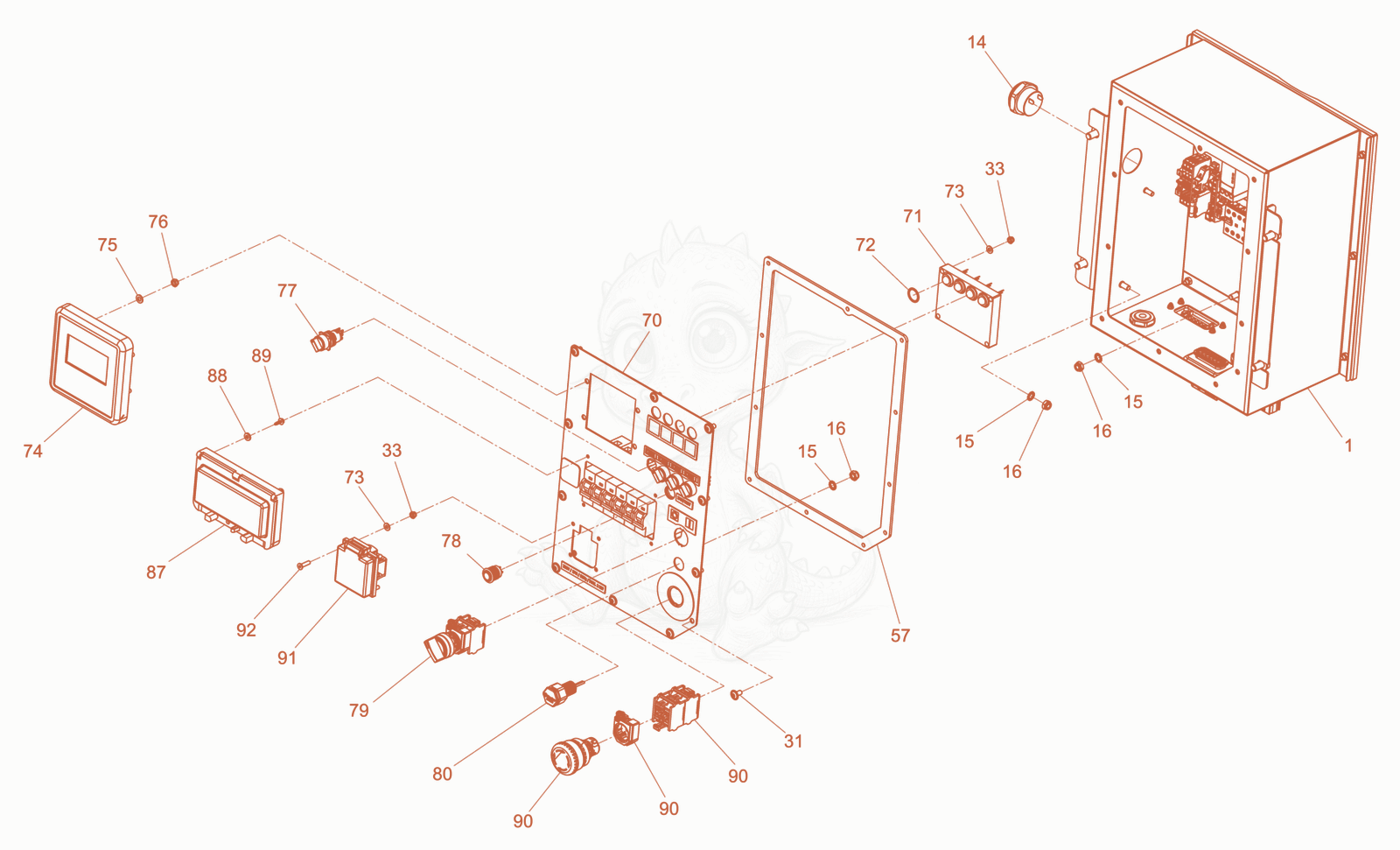

LTN5YSA control panel LTN5Y SA Diagram
- 15100007560Not stockedcontrol panel cpl.×1
- 35100007567Not stockedLocknut×8
- Acoustic signal - 5100006722×1
- 155100007268Not stockedFan type lock washer×3
- 165100007565Not stockedLocknut×3
- 315100007265Not stockedOval head screw×11
- 575100007457Not stockedGasket×1
- 705100007574Not stockedFront panel×1
- 715100007242Not stockedEngine control lamp×1
- 725100007269Not stockedO-ring×4
- 735100007062Not stockedwasher×8
- 745100007241Not stockedOperating display×1
- Washer 5,3 - 5100006914×4
- 765100007575Not stockedLocknut×8
- 775100007576Not stockedRotary switch×4
- 785100007577Not stockedPress switch×1
- 795100007258Not stockedRotary switch×1
- 805100007246Not stockedLight sensor×1
- 875100007244Not stockedInspection window×1
- 885100007579Not stockedWasher×4
- 895100007580Not stockedSelf tapping screw×4
- 905100007581Not stockedEmergency stop switch×1
- 915100007247Not stockedSocket×1
- 925100007215Not stockedcountersunk screw×4
- 1125100007661Not stockedPlate×1
- 1135100007662Not stockedGasket×1
- 1155100007665Not stockedFuse×2
- 1165100007666Not stockedFuse×1
- 1175100007667Not stockedFuse×2
