LTN6L-V S LIGHT TOWER,50HZ CUSTOM

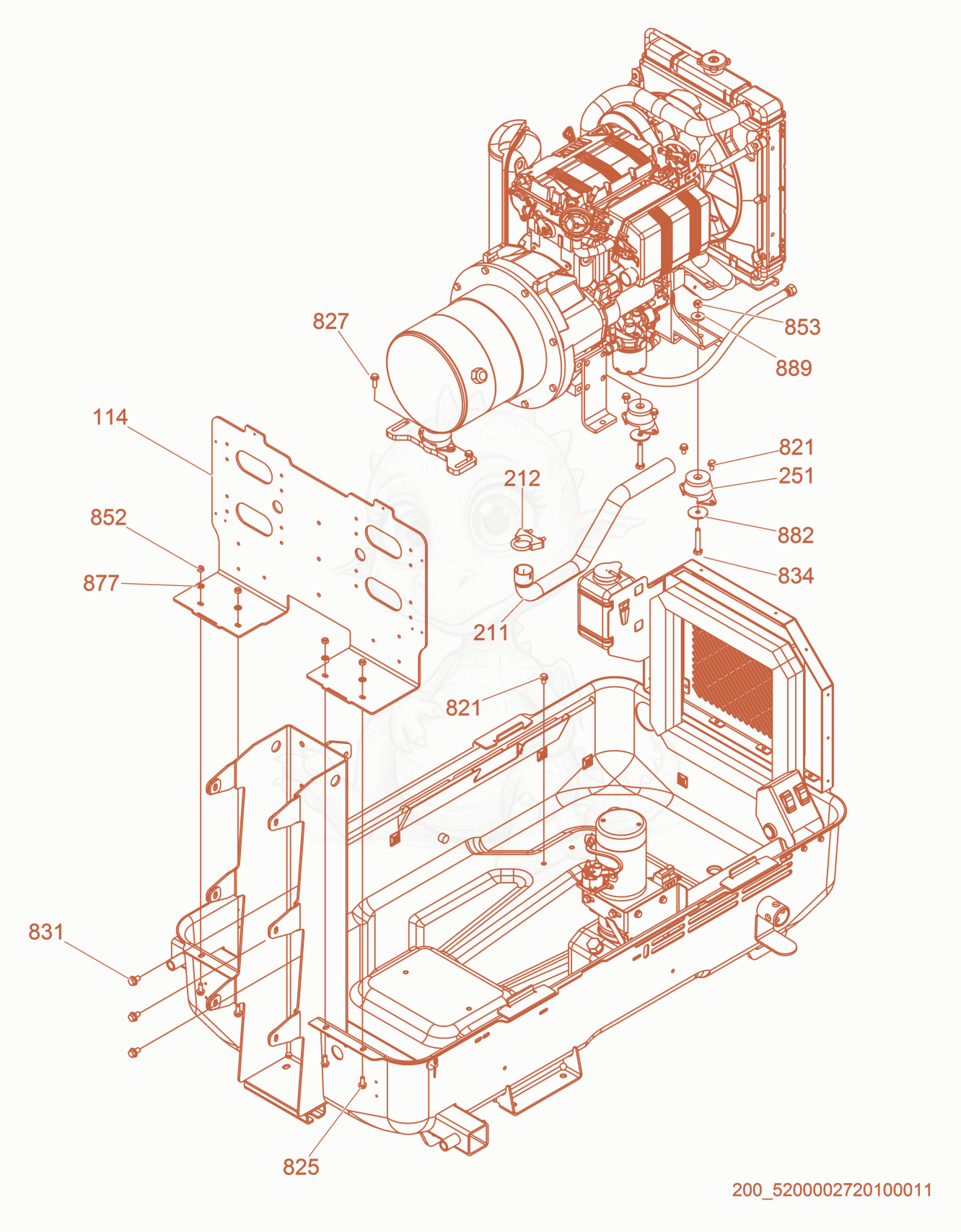

LTN6L-VS Generator/Engine Support/Exhaust Pipe Diagram

Exploded parts diagram of the Generator/Engine Support/Exhaust Pipe of a Wacker Neuson LTN6L-VS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1145000165115
    $243.05
    BRACKET-BALLAST MOUNT P-5000176420 - 5000165115×1
  • 2115000179169
    $473.67
    PIPE-EXHAUST,LOM - 5000179169×1
  • 2125000111081
    $2.82
    CLAMP-EXHAUST - 5000111081×1
  • 2515000164631
    $33.56
    SHOCKMOUNT-ENGINE - 5000164631×2
  • 8215000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×6
  • 8255000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 8275000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×2
  • 8315000164061
    $1.72
    SCREW M10X16 HX.HD,SERR - 5000164061×3
  • 8345000011322
    $0.53
    SCREW M10 X 60 HX.HD. - 5000011322×2
  • 8525000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 8535000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×2
  • 8775000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 8825000162258
    $1.54
    WASHER-FLAT,.406X1.75X.125,ZP - 5000162258×2
  • 8895000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×2
