LTN6L-V S Light Tower,60HZ, Hertz

LTN6L-VS Wiring Harness/Control Panel Diagram

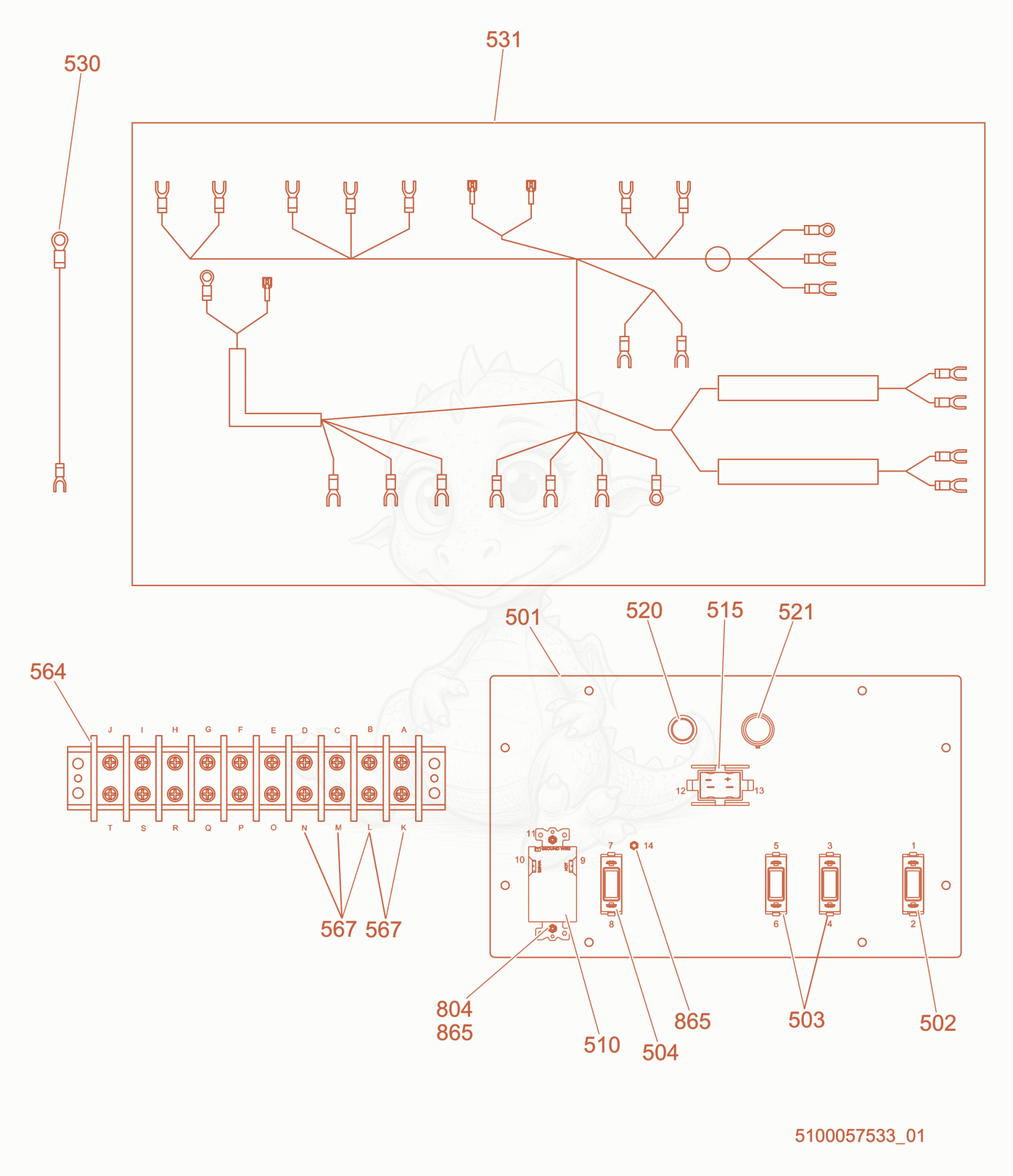

Exploded parts diagram of the Wiring Harness/Control Panel of a Wacker Neuson LTN6L-VS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5015000165202
    $320.96
    PANEL-CONTROL,60HZ - 5000165202×2
  • 5025000172334
    $41.14
    BREAKER-MAIN 50 AMP - 5000172334×1
  • 5035000172337
    $51.54
    BREAKER-LIGHT,30 AMP - 5000172337×2
  • 5045000172338
    $125.71
    BREAKER-OUTLET,20 AMP - 5000172338×1
  • 5105000089849
    $145.30
    KIT-GFI RECEPTACLE - 5000089849×1
  • 5155000117280
    $28.83
    hour meter - 5000117280×1
  • 5205000159630
    $1.53
    Plug-Cap, 105, BPF Series - 5000159630×1
  • 5215000159631
    $0.15
    Plug-Cap, 1-1/8-6, BPF Series - 5000159631×1
  • 5305000177337
    $5.60
    WIRING HARNESS-PANEL GROUND - 5000177337×1
  • 5315000165317
    $387.29
    WIRING HARNESS-CTRL PANEL,LOM - 5000165317×1
  • 5645000176461
    $49.94
    TERMINAL-BLOCK,10 POLE - 5000176461×3
  • 5675000176464
    $1.35
    STRAP-JUMPER,CLOSED - 5000176464×3
  • 8045000088174
    $0.18
    SCREW M4 X 12 - 5000088174×2
  • 8655000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×5
