LTS8L

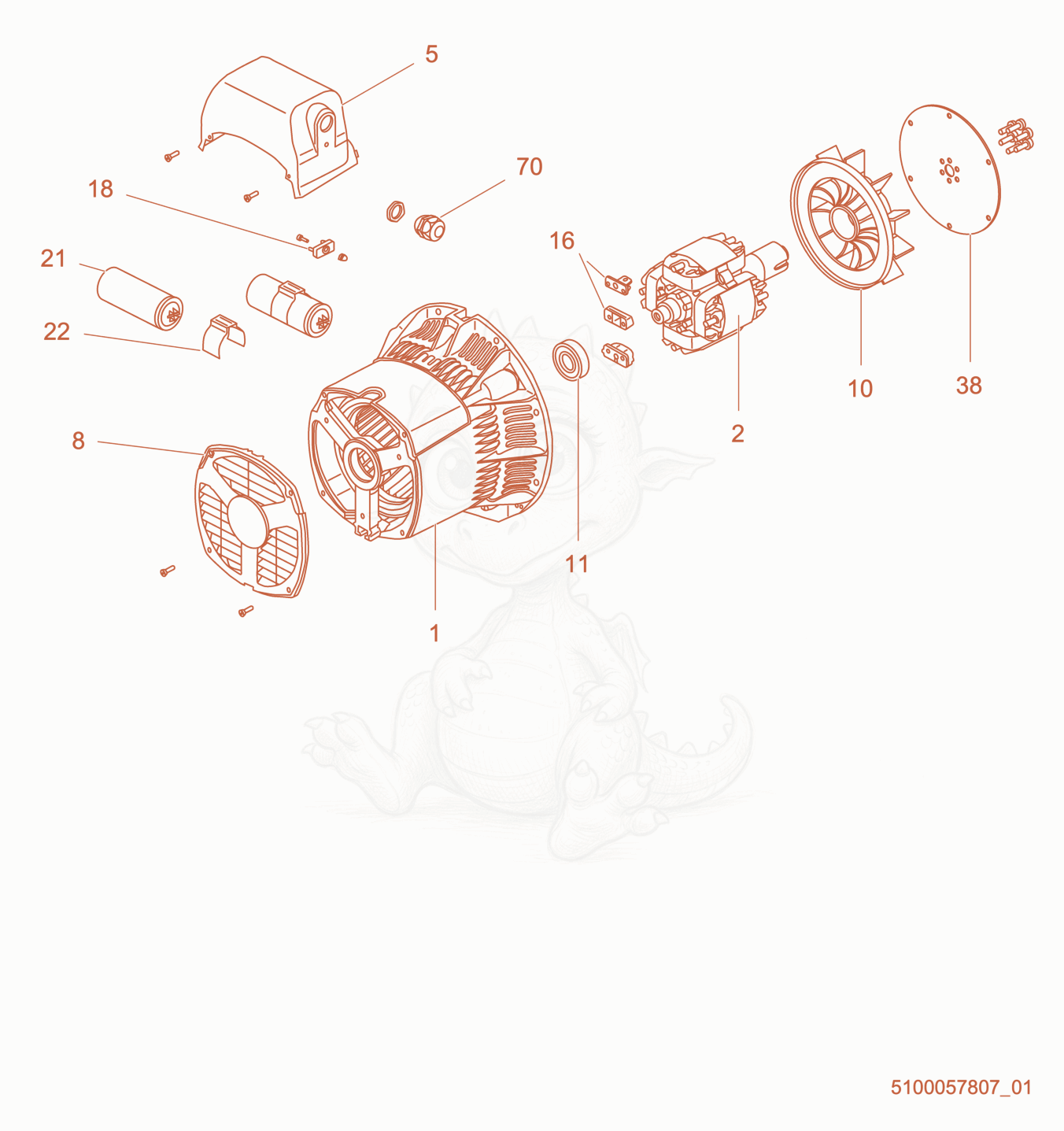

LTS8L Generator Diagram

Exploded parts diagram of the Generator of a Wacker Neuson LTS8L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100057912Not stocked
    FRAME WITH STATOR×1
  • 25100058082Not stocked
    Rotor×1
  • 55100057913Not stocked
    Top Cover×1
  • 85100058085Not stocked
    REAR COVER×1
  • 105100043630Not stocked
    Fan×1
  • 115100043632Not stocked
    Bearing×1
  • 165100044292Not stocked
    Wired diode×1
  • 185100057914Not stocked
    TERMINAL BOARD×1
  • 215100040937Not stocked
    Capacitor×1
  • 215100040938Not stocked
    Capacitor×1
  • 225100044293Not stocked
    Clamp×1
  • 225100057915Not stocked
    CLAMP D.50×1
  • 385100044294Not stocked
    Disc SAE×1
  • 705100044520Not stocked
    Cable gland×1
