LTS8L

LTS8L Engine support Diagram

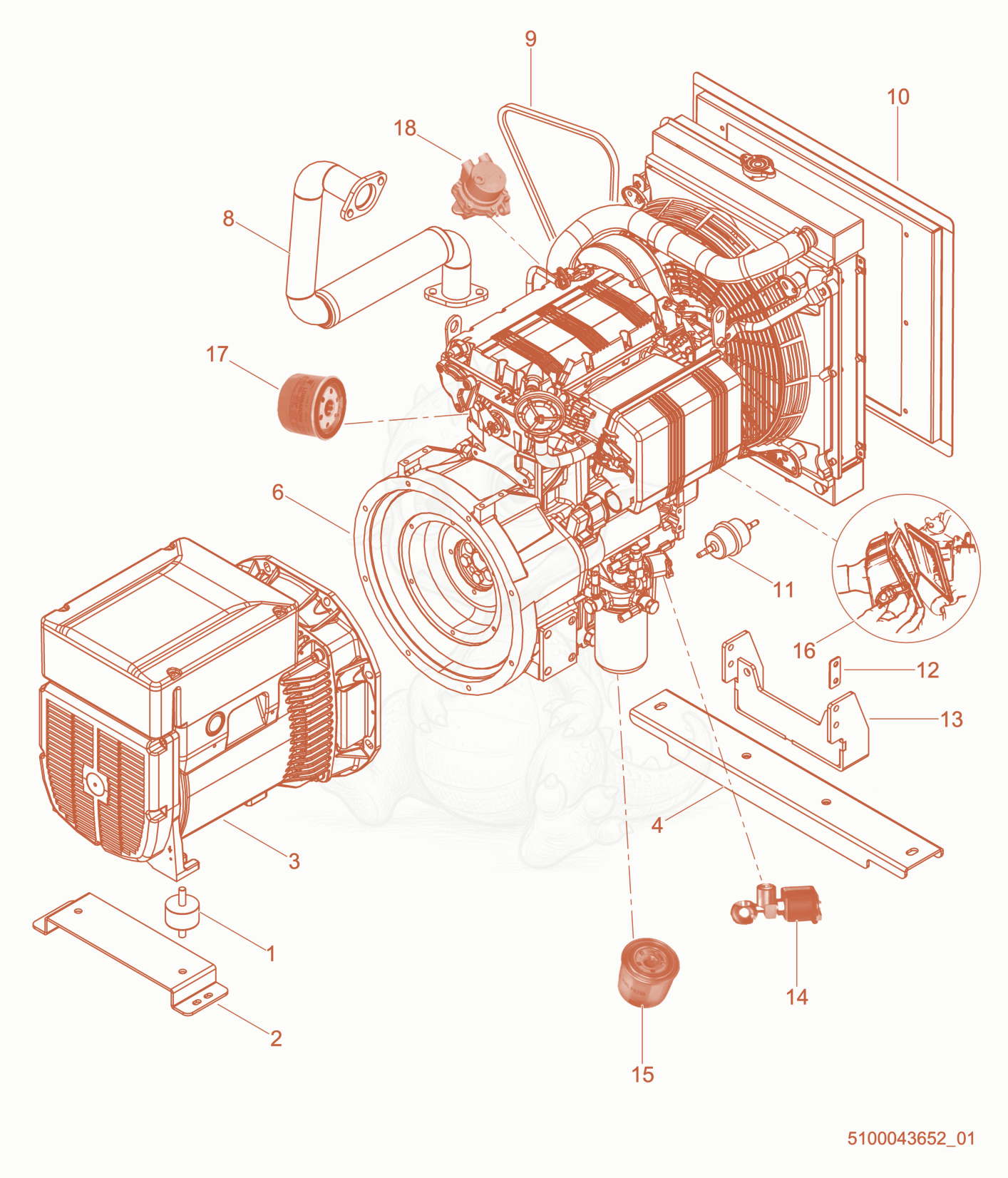

Exploded parts diagram of the Engine support of a Wacker Neuson LTS8L, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100040930Not stocked
    Shock absorber×4
  • 25100044476Not stocked
    Generator/motorbefestigung×1
  • 35100043624Not stocked
    Generator×1
  • 45100043639Not stocked
    Engine bracket×1
  • 65100043638Not stocked
    Engine-Kohler×1
  • 85100043643Not stocked
    Extension, Muffler×1
  • 95200002703
    $34.52
    Belt 850mm - 5200002703×1
  • 105100043642Not stocked
    Radiator shroud×1
  • 115100041144Not stocked
    Prefilter×1
  • 125100043641Not stocked
    Plate×1
  • 135100043640Not stocked
    Bracket×1
  • 141000206157Not stocked
    Shut off solenoid×1
  • 155000082116
    $37.08
    ELEMENT-FUEL FILTER - 5000082116×1
  • 165000155678
    $33.14
    AIR CLEANER CARTRIDGE - 5000155678×1
  • 171000231412Not stocked
    Engine oil filter×1
  • 181000203515Not stocked
    Fuel pump×1
