LTT4 RAC

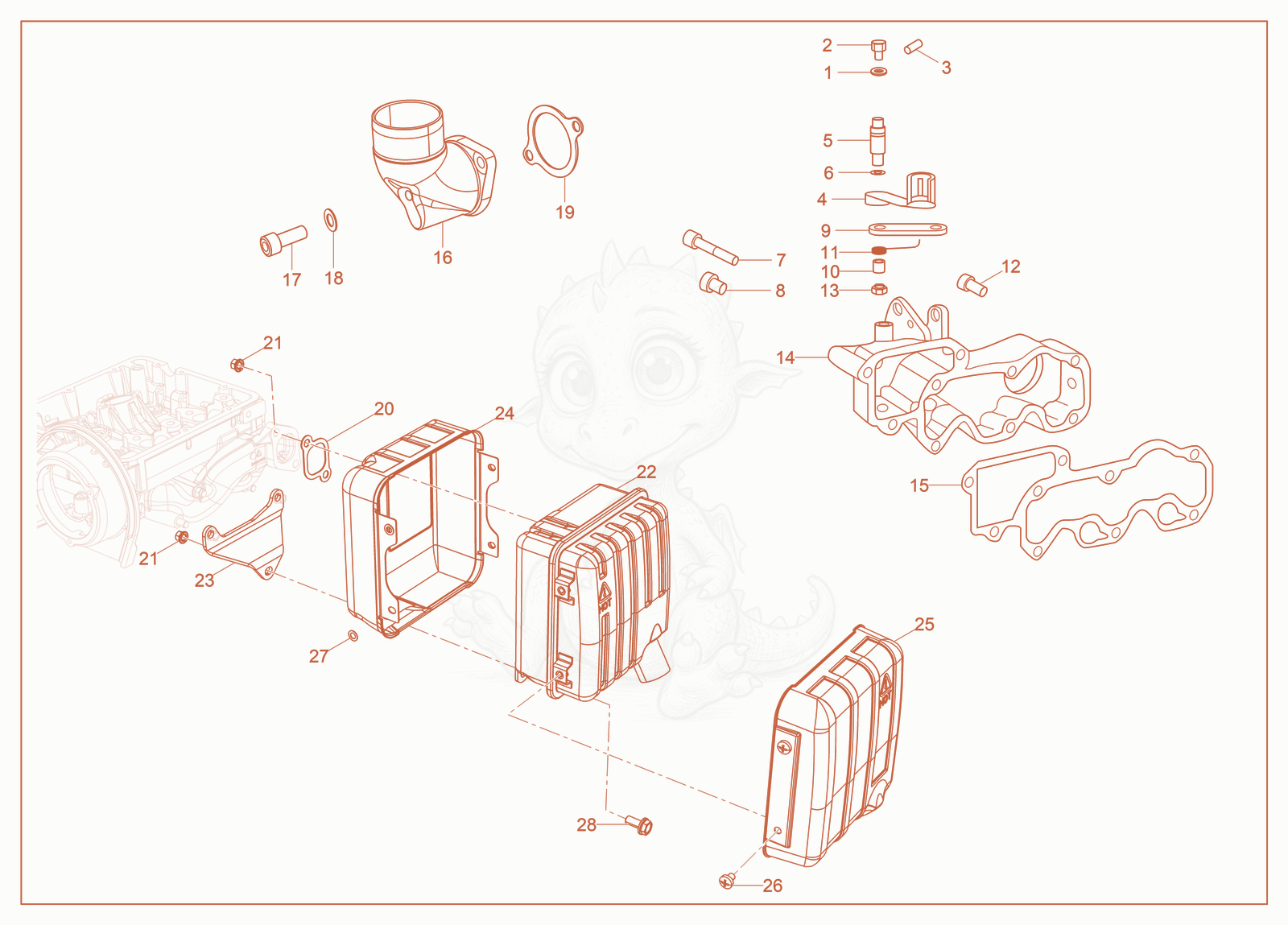

LTT4RAC Air Cleaner / Muffler Diagram
- WASHER - 5200009524×1
- BOLT - 5200009525×1
- CONNECTOR - 5000203352×1
- lever - 5000160214×1
- PIN - Throttle - 5200009526×1
- O-RING - 5000159230×1
- SCREW M8 X 65 - 5000084170×1
- SCREW M8 X 1.25 X 30 - 5000159476×2
- LEVER-INTERNAL - 5000215504×1
- Sleeve - 5000215481×1
- Spring - 5000215508×1
- SCREW M8 X 45 - 5000203346×3
- Nut - 5000084232×1
- Manifold - 5100026409×1
- Gasket - 5100026410×1
- Flange - 5000211369×1
- SCREW M8 X 20 - 5000084169×2
- washer - 5000082285×2
- GASKET-INTAKE MANIFOLD - 5000159294×1
- Seal - 5100076329×1
- Nut - 5000206130×3
- Muffler - 5000103797×1
- Bracket - 5100076330×1
- MUFFLER GUARD - 5100062181×1
- Guard - 5100076331×1
- Screw - 5000206131×4
- Washer - 5000206132×4
- BOLT M8 - 5000215693×1
