LTT6

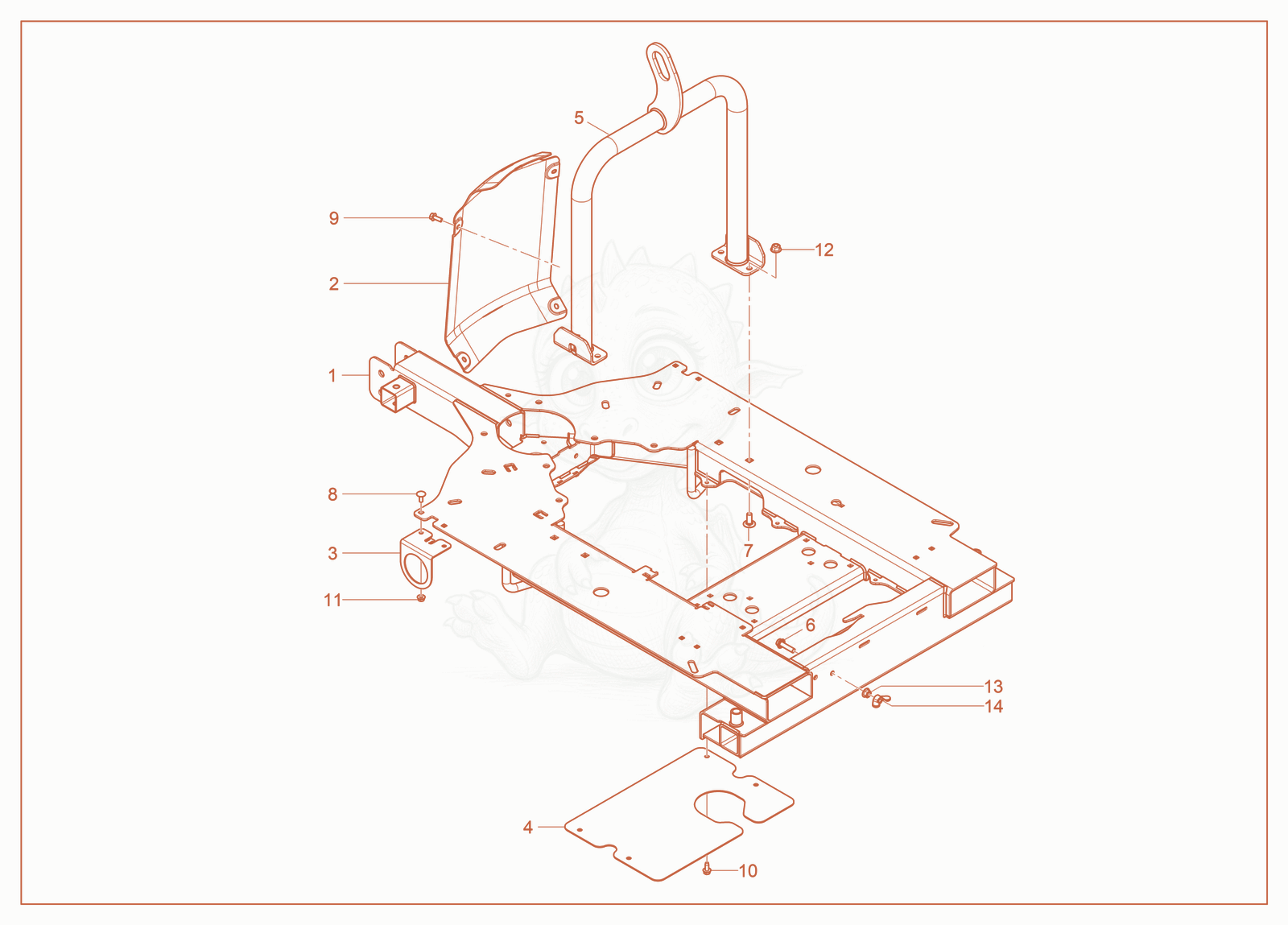

LTT6 Trailer Frame Diagram

Exploded parts diagram of the Trailer Frame of a Wacker Neuson LTT6, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100068171
    $1,891.89
    Weldment Chassis Ltt 5100068171×1
  • 25100068632
    $48.42
    COVER FRONT - 5100068632×1
  • 35100067778
    $8.25
    PLATE SIDE LIGHT - 5100067778×2
  • 45100068427
    $26.35
    COVER ACCESS - 5100068427×1
  • 55100067774
    $394.38
    WELDMENT LIFT STRUCTURE - 5100067774×1
  • 65000115628
    $1.80
    SCREW M10X40,HEX SERR,FLG,ZP - 5000115628×1
  • 75100068452
    $1.86
    ISO8678-M12x30-10.9-ZNC - 5100068452×4
  • 81000402940
    $0.28
    BOLT-M8x20-CARRIAGE.SHRT.NK-8.8-ZNK - 1000402940×4
  • 95100071578
    $0.94
    SCREW-M8x16-HEX.FLG.HD-8.8-MAG565 - 5100071578×4
  • 105100061318
    $0.50
    SCREW-M8x20,THD.FRM,HEX.FLG-MAG565 - 5100061318×4
  • 111000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×4
  • 121000343305
    $0.73
    NUT M12 FLANGED 10 ZINC - 1000343305×4
  • 135000096087
    $0.21
    NUT M10 HEX.HD. - 5000096087×1
  • 145000010897
    $2.54
    NUT-WING,M10 - 5000010897×1
