LTW20Z1-LIGHT TOWER,RFR

LTW20Z1 Option-Cold Weather Shroud Diagram

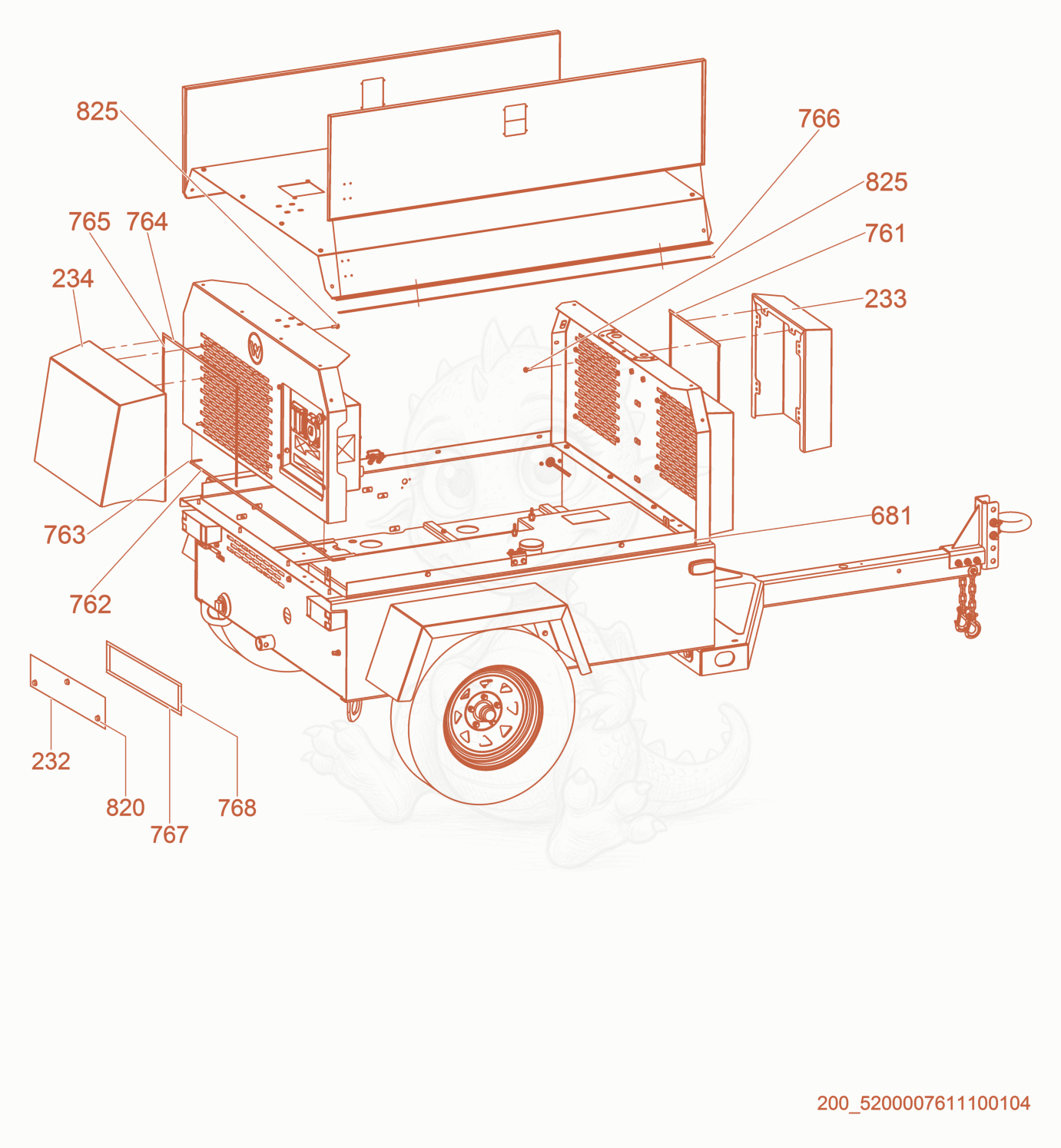

Exploded parts diagram of the Option-Cold Weather Shroud of a Wacker Neuson LTW20Z1, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2325200018971Not stocked
    Cover plate×1
  • 2335200004233
    $98.14
    Cover-Shroud LTW, Front P-5200004313 - 5200004233×2
  • 2345200004234
    $126.30
    Cover-Shroud LTW, Rear P-5200004313 - 5200004234×1
  • 7615200005516
    $1.06
    SEAL-SHROUD FRONT,LTW - 5200005516×6
  • 7625200005517
    $5.22
    SEAL-ENCLOSURE END,LTW - 5200005517×2
  • 7635200005518
    $1.76
    SEAL-ENCLOSURE SIDE,LTW - 5200005518×4
  • 7645200005519
    $5.65
    SEAL-SHROUD REAR TOP,LTW - 5200005519×1
  • 7655200005550
    $6.36
    SEAL-SHROUD REAR SIDE,LTW - 5200005550×2
  • 7665200005551
    $11.58
    SEAL-DOOR,LTW - 5200005551×2
  • 7675200019060Not stocked
    Seal×2
  • 7685200019061Not stocked
    Seal×2
  • 8205000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×3
  • 8255000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×18
