LTW20Z1-LIGHT TOWER,RFR

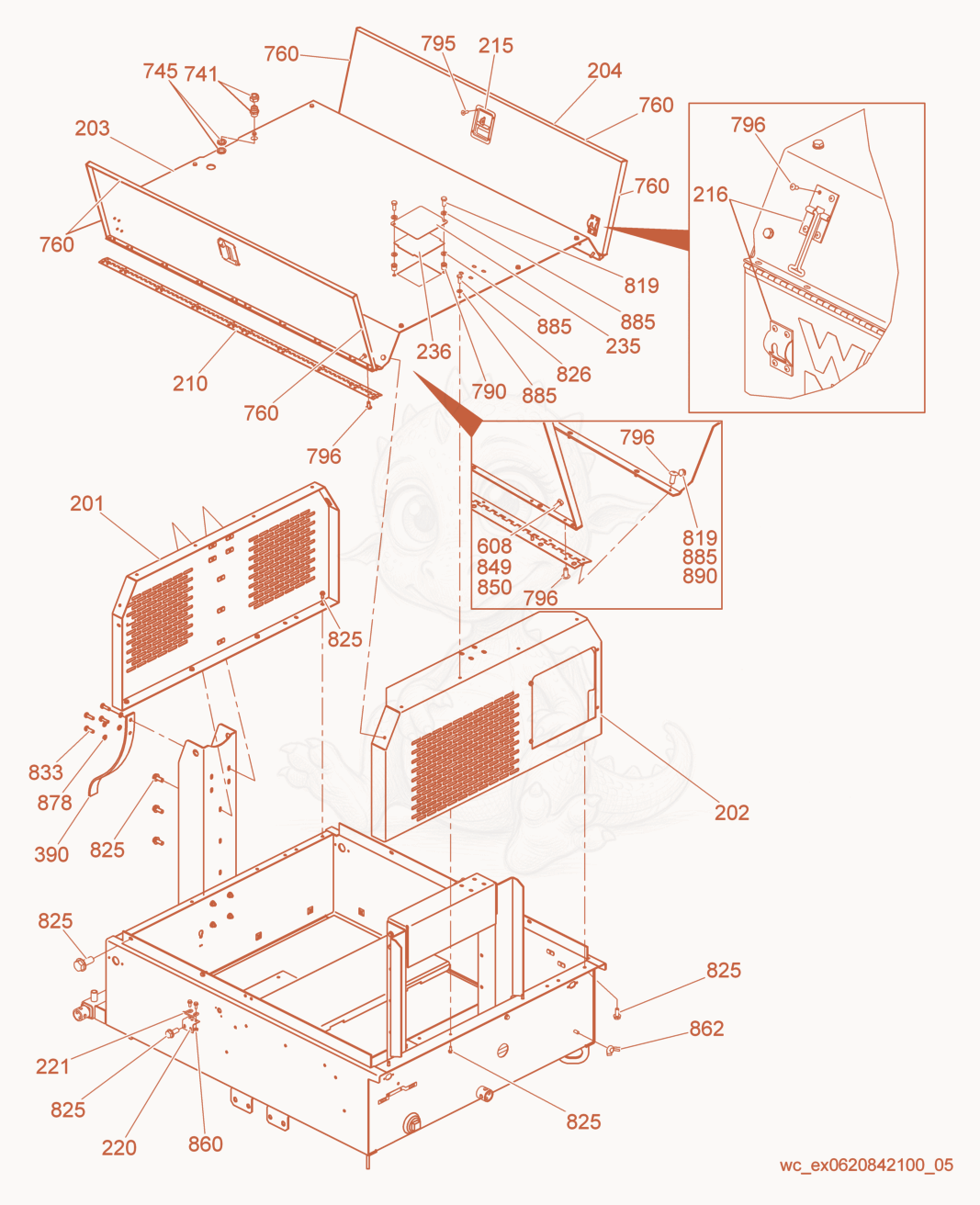

LTW20Z1 Enclosure Panels Diagram
- PANEL-ENCL,FRT,RFR LTW, P-5200004313 - 5200004207×1
- Panel-Enclsr,Rear RFR LTW, P-5200004313 - 5200004208×1
- Panel-Enclosure,Roof,LTW,Lt Blue - 5200004209×1
- Door-Access, RFR LTW P-5200022483 - 5200004230×2
- HINGE-CONTINUOUS - 5000172887×2
- 2155200015873Not stockedLatch×2
- HOLDER-DOOR ASSY,4 - 5000174970×2
- BRACKET-DOOR STRIKE P- 5000176420 - 5000172978×2
- LATCH STRIKE,WIRE - 5000158982×2
- Panel-Rad Covr,Lt BlU,LTW P- 5200022483 - 5200004206×1
- GASKET-RADIATOR COVER - 5000158849×1
- SPRING-TOWER,LIFT - 5000165119×1
- WIRE-GROUND 300MM - 5000178301×1
- CONNECTOR-CORD GRIP 3/4 NPT - 5000165222×1
- NUT-LOCK 3/4 NPT,STEEL - 5000176419×2
- SEAL-ROOF, LTW - 5200002756×1
- X-5200012961 SEAL-TRIM EDGE,2385MM - 5000180170×2
- INSERT M8,THREADED - 5000085454×2
- RIVET .156 X .415 LG.,SST - 5000176346×8
- RIVET 3/16 X .45 L,SST - 5000174080×40
- 8195000177334Not stockedHexagonal head cap screw×6
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×21
- SCREW M8X20 HX.HD.,SST - 5000158897×8
- SCREW M10 X 30 HX.HD - 5000011439×4
- NUT-LOCK M5 HEX. - 5000010369×1
- NUT M8 8,HEX - 5000010882×1
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×8
- NUT-WING,M10 - 5000010897×1
- WASHER B10.5 FLAT - 5000010621×4
- WASHER M8 FLAT,SST - 5000158899×16
- WASHER-LOCK M8 INT.STAR SST - 5000160626×4
