LTW6K-V Light Tower,Custom

LTW6K-V Trailer cpl. Diagram

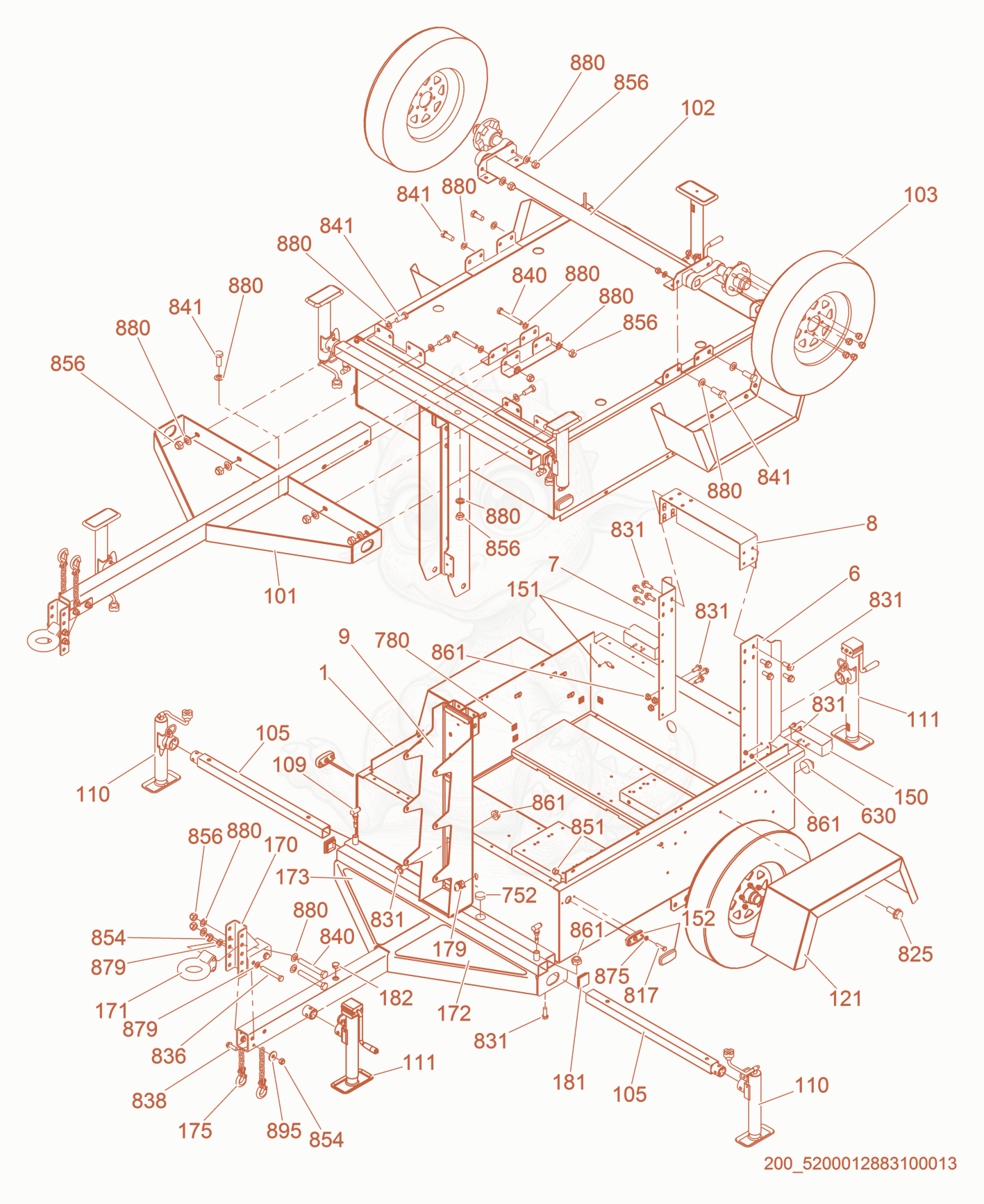

Exploded parts diagram of the Trailer cpl. of a Wacker Neuson LTW6K-V, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000172873
    $3,342.31
    FRAME-SKID,LTW WELDMENT - 5000172873×1
  • 65000177331
    $102.91
    PANEL-LIFT STRCT LTW,LEFT P- 5000176420 - 5000177331×1
  • 75000177332
    $150.94
    PANEL-LIFT STRCT LTW,RT P- 5000176420 - 5000177332×1
  • 85000172875
    $413.06
    PANEL-LEFT STRUCT LTW,TOP P- 5000176420 - 5000172875×1
  • 95200012203Not stocked
    Tower support×1
  • 1015000180785
    $882.65
    HITCH-TONGUE LTW WLDMNT P- 5000176420 - 5000180785×1
  • 1025000172879
    $1,024.22
    AXLE-TRAILER,3500#,1676 HW P-5000112007 - 5000172879×1
  • 1035200012194Not stocked
    Wheel rim×2
  • 1055000165127
    $230.58
    TUBE-OUTRIGGER - 5000165127×2
  • 1095000165130
    $26.83
    PIN-SPRING OUTRIGGER - 5000165130×2
  • 1105000174684
    $74.01
    JACK-SWIVEL,2000#,10 TRVL - 5000174684×2
  • 1115000168507
    $102.98
    JACK-SWIVEL,5000#,10 TRVL - 5000168507×2
  • 1215000174651
    $341.67
    FENDER-STEEL,15 IN WHEEL P- 5000176420 - 5000174651×2
  • 1505000077640
    $31.96
    LIGHT-TAIL,LEFT HAND P-5000112007 - 5000077640×1
  • 1515000077638
    $31.96
    LIGHT-TAIL,RIGHT HAND P-5000112007 - 5000077638×1
  • 1525000176239
    $2.02
    LIGHT-SIDE MARKER,AMBER - 5000176239×2
  • 1705000180787
    $671.74
    HITCH-COUPLER,ADJUST HEIGT P- 500017642 - 5000180787×1
  • 1715000165612
    $177.75
    HITCH-LUNETTE EYE,3 ID,ZINC - 5000165612×1
  • 1725000179367
    $12.42
    PAD-ANTI SKID,LEFT LTW - 5000179367×1
  • 1735000179368
    $12.42
    PAD-ANTI SKID,RIGHT LTW - 5000179368×1
  • 1755200003078
    $16.50
    CHAIN TRAILER SAFETY 29 - 5200003078×2
  • 1795000178300
    $1.89
    CONNECTOR-STRAIN RELIEF 90DEG - 5000178300×1
  • 1815000177163
    $4.41
    PLUG-TUBE,2-1/2 SQUARE - 5000177163×2
  • 1825000180755
    $15.88
    GROMMET-1/2 IDX1-1/16 ODX1/4 - 5000180755×1
  • 6305000159651
    $36.72
    PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
  • 7805000176164
    $1.32
    MOUNT-ADHESIVE WIRE - 5000176164×7
  • 7815000111458
    $0.03
    WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×7
  • 8175000011469
    $0.09
    SCREW M6 X 25 HX.HD. - 5000011469×4
  • 8255000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×14
  • 8315000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×20
  • 8385000155247
    $7.76
    SCREW M12X35-10.9 HX SER FLG - 5000155247×2
  • 8405000173843
    $2.23
    SCREW M16 X 120 HX.HD. - 5000173843×4
  • 8415000011521
    $0.86
    SCREW M16 X 40 HX.HD. - 5000011521×10
  • 8515000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×8
  • 8545000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×6
  • 8565000013496
    $0.97
    NUT-LOCK M16 HEX. - 5000013496×14
  • 8615000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×14
  • 8755000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×8
  • 8795000010620
    $0.26
    WASHER B13 FLAT - 5000010620×6
  • 8805000010618
    $0.28
    WASHER B17 FLAT - 5000010618×30
  • 8955000010376
    $0.29
    WASHER A13 FLAT - 5000010376×2
