LTW6K Light Tower, Custom T4

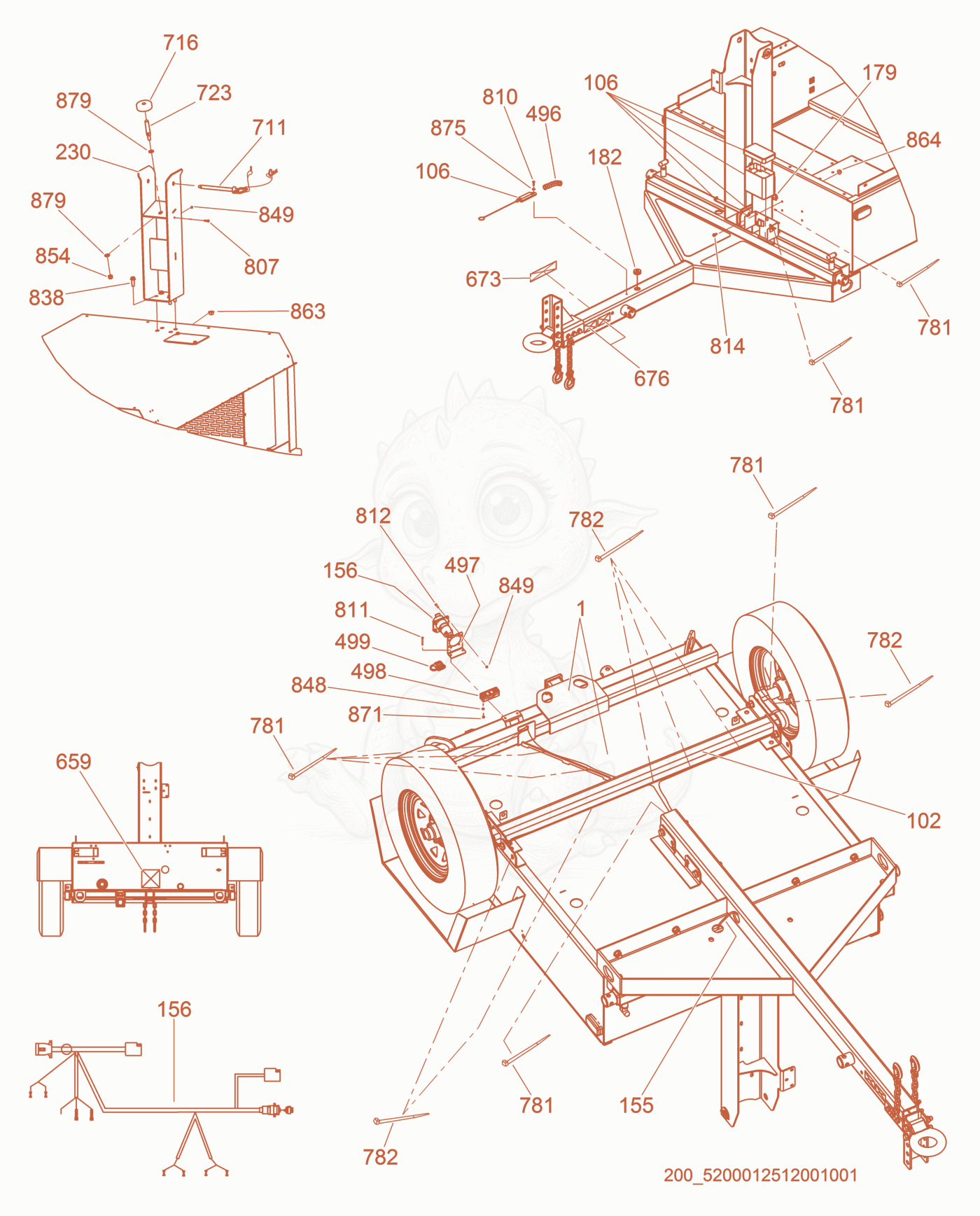

LTW6K Option-Tandem Tow, Electric Brakes, Containment Skid Diagram
- 15200012510Not stockedSkid×1
- AXLE-TRAILER,3500#,ELEC - 5000180745×1
- 1065000166672Not stockedBreakaway Kit×1
- WIRING HARNESS-TRLR,ELEC BRK - 5000180744×1
- 1565200012530Not stockedWiring harness, electric brake×1
- CONNECTOR-STRAIN RELIEF 90DEG - 5000178300×1
- GROMMET-1/2 IDX1-1/16 ODX1/4 - 5000180755×1
- BRACKET-EXTD CRADLE,WLD P-5000176420 - 5000180208×1
- 4965000166436Not stockedWire loom×1
- 4975200012936Not stockedMount×1
- 4985200012937Not stockedMount×1
- 4995200012938Not stockedCover×1
- 6595200013154Not stockedLabel-towing instructions×1
- LABEL-WARNING PINTLE HITCH - 5200008569×1
- LABEL-SHEET,LT TONGUE - 5000177134×1
- PIN-HITCH,LT - 5000165225×1
- MOUNT-DAMPER,TOWER - 5000171702×1
- PIN-TOWER LOCK - 5000165118×1
- WRAP-CABLE TIE 3.6X203MM,BLACK - 5000111458×7
- CABLE-TIE,#28-120-UV-50 - 5000173813×6
- SCREW M5X20-4.8-H PAN HD - 5000154517×1
- 8105000167793Not stockedScrew×1
- SCREW M4 X 40 HEX HD. - 5000115846×2
- SCREW M5 X 16 HX.HD. - 5000011476×4
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×4
- SCREW M12 X 35 HEX SER FLG CLASS 100 ZN - 5000178765×4
- NUT-LOCK M4 HEX. - 5000010370×2
- NUT-LOCK M5 HEX. - 5000010369×4
- NUT-LOCK M5 HEX. - 5000010369×1
- NUT-LOCK M12X1.75 HEX - 5000010366×1
- NUT-M12 SERRATED,FLANGED HEX - 5000119510×4
- NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×4
- WASHER A4.3 FLAT - 5000010628×2
- WASHER B6.4 FLAT - 5000010624×1
- WASHER B13 FLAT - 5000010620×2
