M1500/120 GB

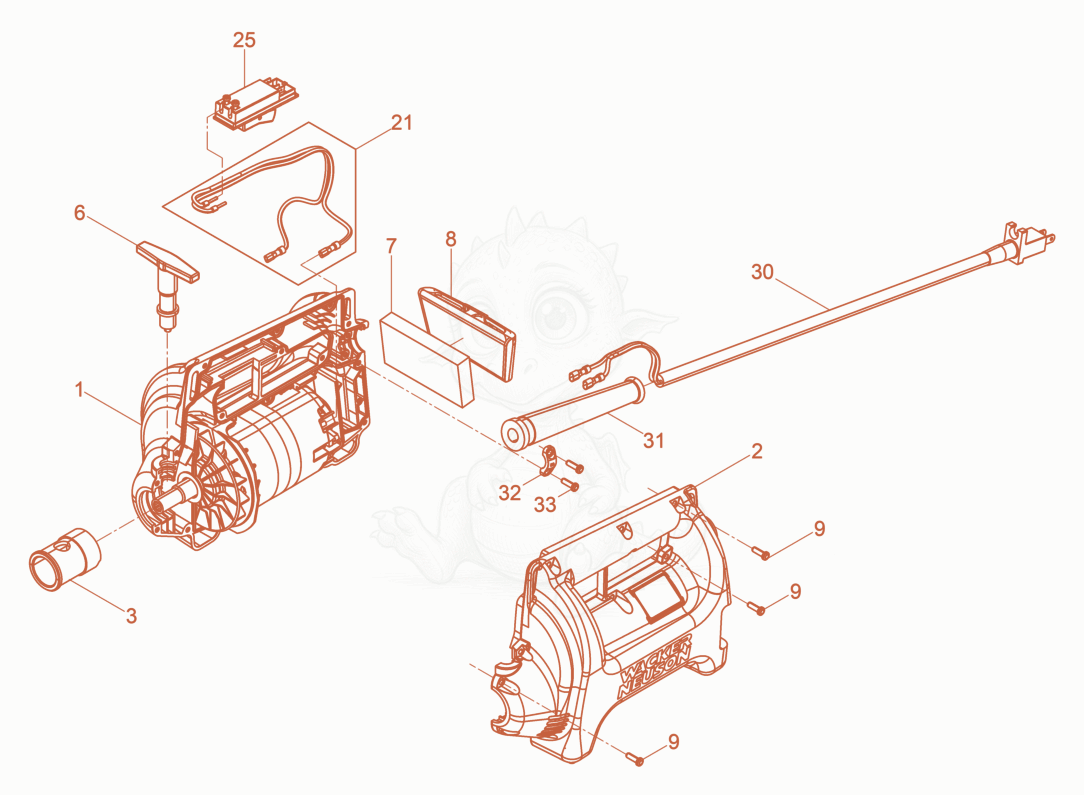

M1500/120GB Drive Engine Diagram

Exploded parts diagram of the Drive Engine of a Wacker Neuson M1500/120GB, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100010489
    $113.97
    Housing Right - 5100010489×1
  • 25100010488
    $133.99
    Housing left - 5100010488×1
  • 35100068041Not stocked
    Bush×1
  • 65100009577
    $43.37
    Detent Pin - 5100009577×1
  • 75100010864
    $10.03
    Filter Element - 5100010864×1
  • 85100010490
    $6.99
    Filter housing - 5100010490×1
  • 95100010127
    $0.40
    Head Screw 5x16 - 5100010127×19
  • 215100015414
    $19.12
    Supply line cpl. - 5100015414×1
  • 255100010900
    $80.91
    Switch - 5100010900×1
  • 305100010647Not stocked
    Power supply cable with plug×1
  • 315000064242
    $14.19
    SLEEVE-CABLE REINFORCEMENT - 5000064242×1
  • 325000106220
    $1.79
    Clamp - 5000106220×1
  • 335100010127
    $0.40
    Head Screw 5x16 - 5100010127×2
