M1500/230

M1500/230EU Engine Diagram

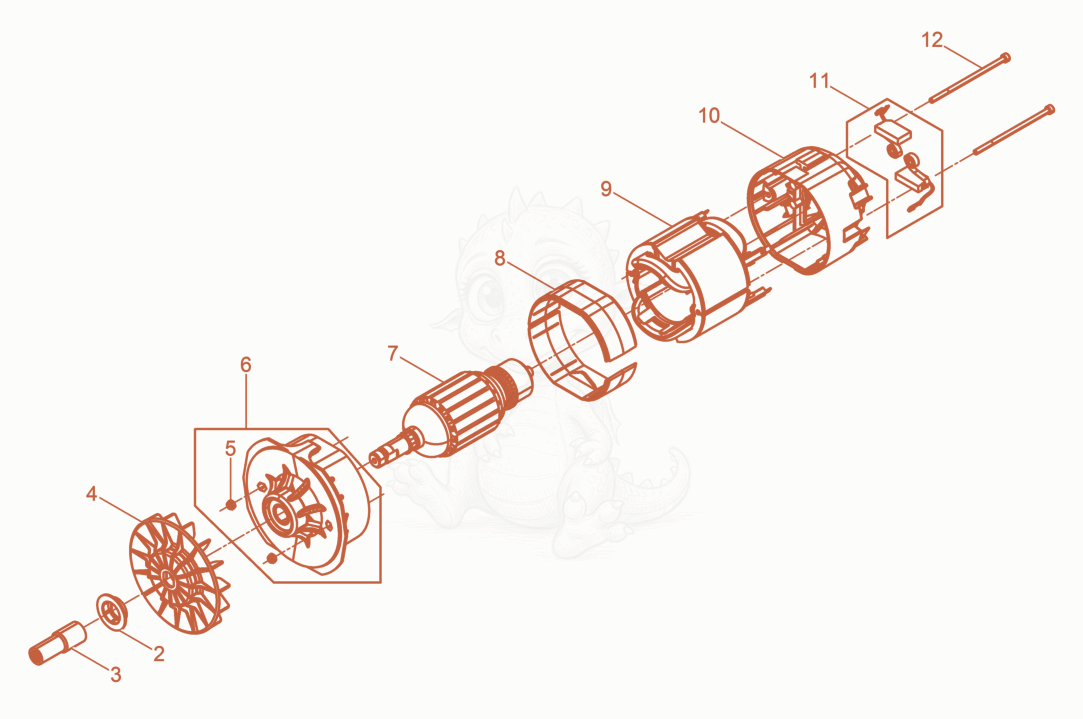

Exploded parts diagram of the Engine of a Wacker Neuson M1500/230EU, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100005447
    $0.92
    Labyrinth Seal - 5100005447×1
  • 35000053934
    $24.90
    ADAPTER-FLEXSHAFT - 5000053934×1
  • 45100004469
    $43.68
    Fan wheel - 5100004469×1
  • 55000105210
    $0.33
    NUT VM4-8 HEX - 5000105210×2
  • 65100010853
    $56.95
    Bearing bracket front - 5100010853×1
  • 75100000661Not stocked
    Rotor 230V×1
  • 85100009988
    $21.14
    Spacer ring M1500 - 5100009988×1
  • 95100000662Not stocked
    Stator 230V×1
  • 105100010852
    $78.72
    Bearing bracket rear - 5100010852×1
  • 115100010863
    $35.48
    Carbon brush (Set) 230V - 5100010863×1
  • 125100010880
    $7.43
    Cylinder Screw M4x90 - 5100010880×2
