MCP2-CE

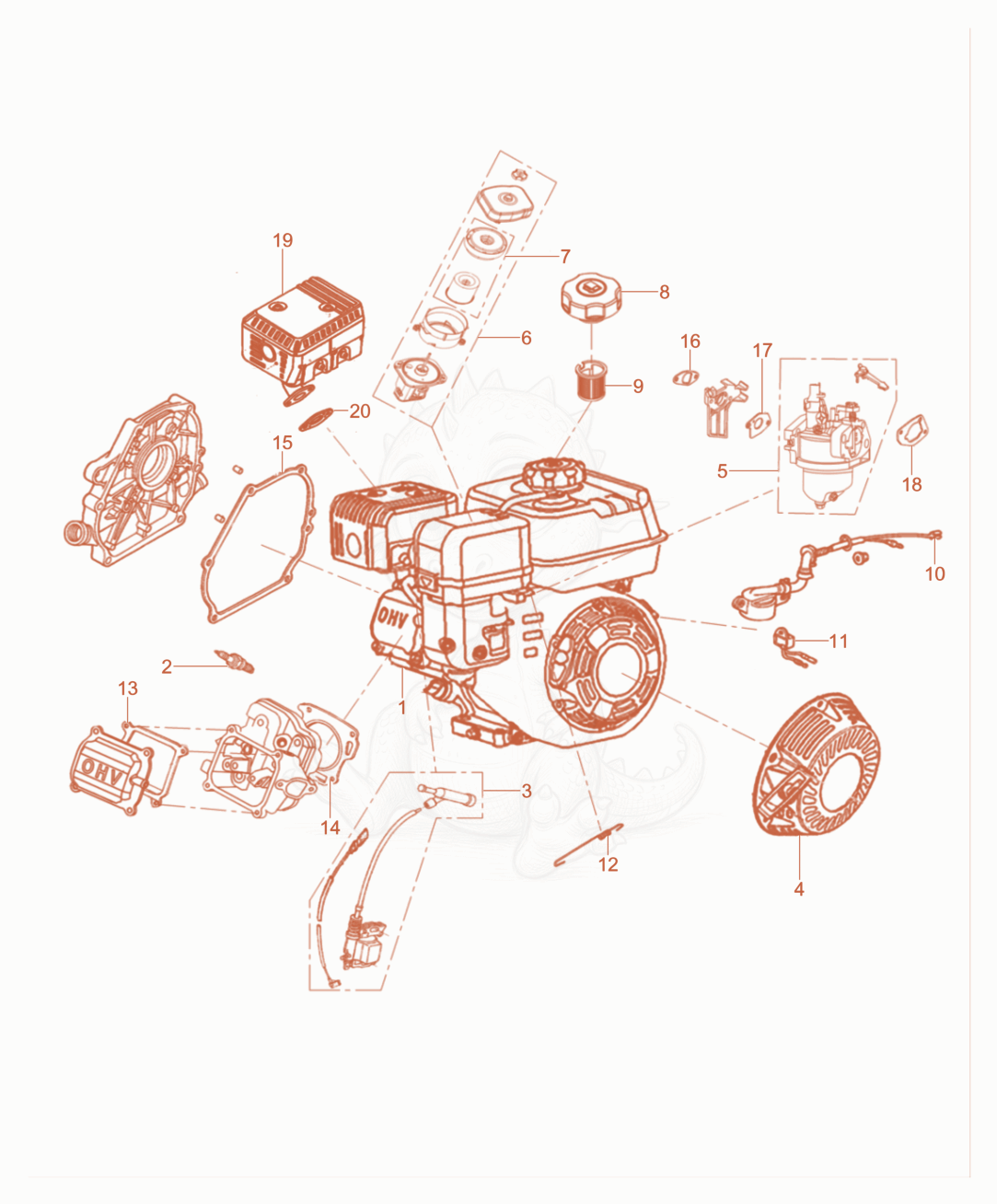

MCP2-CE Engine Diagram

Exploded parts diagram of the Engine of a Wacker Neuson MCP2-CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000409241
    $774.24
    Engine G200FA - 5000409241×1
  • 25000408439
    $15.70
    Spark plug - 5000408439×1
  • 35000408503
    $31.58
    COIL ASSY.,IGNTION - 5000408503×1
  • 45100058444Not stocked
    Starter kit×1
  • 55000409153
    $42.79
    Carburetor cpl. - 5000409153×1
  • 65000409158
    $29.93
    Air filter - 5000409158×1
  • 75000409161
    $11.91
    Air filter element - 5000409161×1
  • 85000408526
    $7.34
    Fuel Tank Cap - 5000408526×1
  • 95000408527
    $2.85
    Fuel Strainer - 5000408527×1
  • 105000408455
    $14.86
    Oil level sensor - 5000408455×1
  • 115000408453
    $7.50
    Engine oil protector - 5000408453×1
  • 125000408512
    $0.61
    throttle return spring - 5000408512×1
  • 135000408441
    $3.06
    Gasket for cylinder head cover - 5000408441×1
  • 145000409143
    $5.80
    Gasket for cylinder head - 5000409143×1
  • 155000408465
    $13.44
    Crankcase cover gasket - 5000408465×1
  • 165000408496
    $0.91
    Carburetor gasket - 5000408496×1
  • 175000408498
    $0.91
    Carburetor gasket - 5000408498×1
  • 185000408499
    $6.12
    Carburetor gasket - 5000408499×1
  • 195000409162
    $97.50
    Muffler - 5000409162×1
  • 205000408525
    $1.62
    Outlet gasket - 5000408525×1
