MDP3-CN

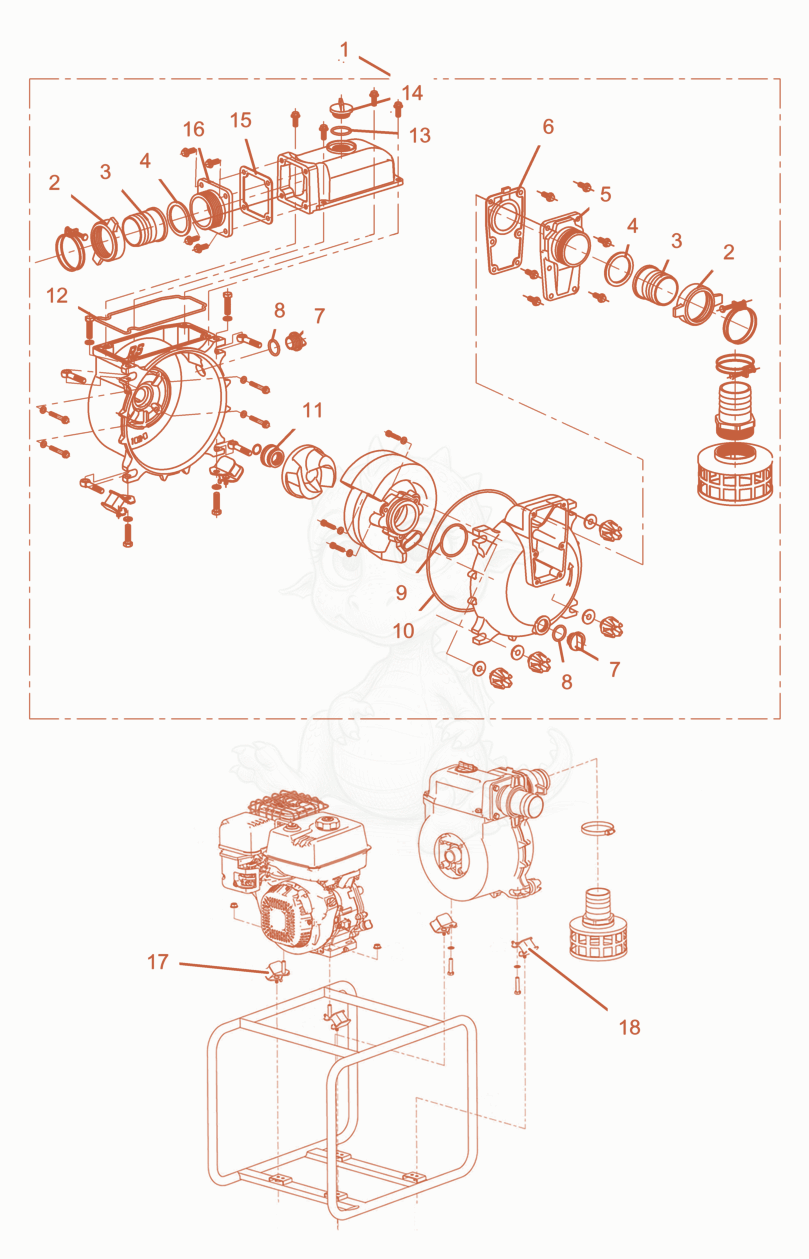

MDP3-CN Water Pump cpl. Diagram

Exploded parts diagram of the Water Pump cpl. of a Wacker Neuson MDP3-CN, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100061601Not stocked
    Components of water pump×1
  • 25100061602Not stocked
    Joint×2
  • 35100061603Not stocked
    Hose fitting×2
  • 45100061604Not stocked
    Seal ring×2
  • 55100061605Not stocked
    Negative pressure flange×1
  • 65100061606Not stocked
    Suction valve×1
  • 75100061607Not stocked
    Screw plug×2
  • 85100061608Not stocked
    Seal ring×2
  • 95100061609Not stocked
    Seal ring×1
  • 105100061610Not stocked
    Seal ring×1
  • 115100061611
    $49.71
    Meachanical seal - 5100061611×1
  • 125100061612Not stocked
    Seal ring×1
  • 135100061613
    $3.65
    Seal ring - 5100061613×1
  • 145100061655
    $7.17
    Screw plug - 5100061655×1
  • 155100061614Not stocked
    Output flange Gasket×1
  • 165100061615Not stocked
    Output flange×1
  • 175000409410
    $9.78
    Shockmount - 5000409410×2
  • 185000409411
    $8.36
    Shockmount - 5000409411×2
