MDP3 Trash Pump

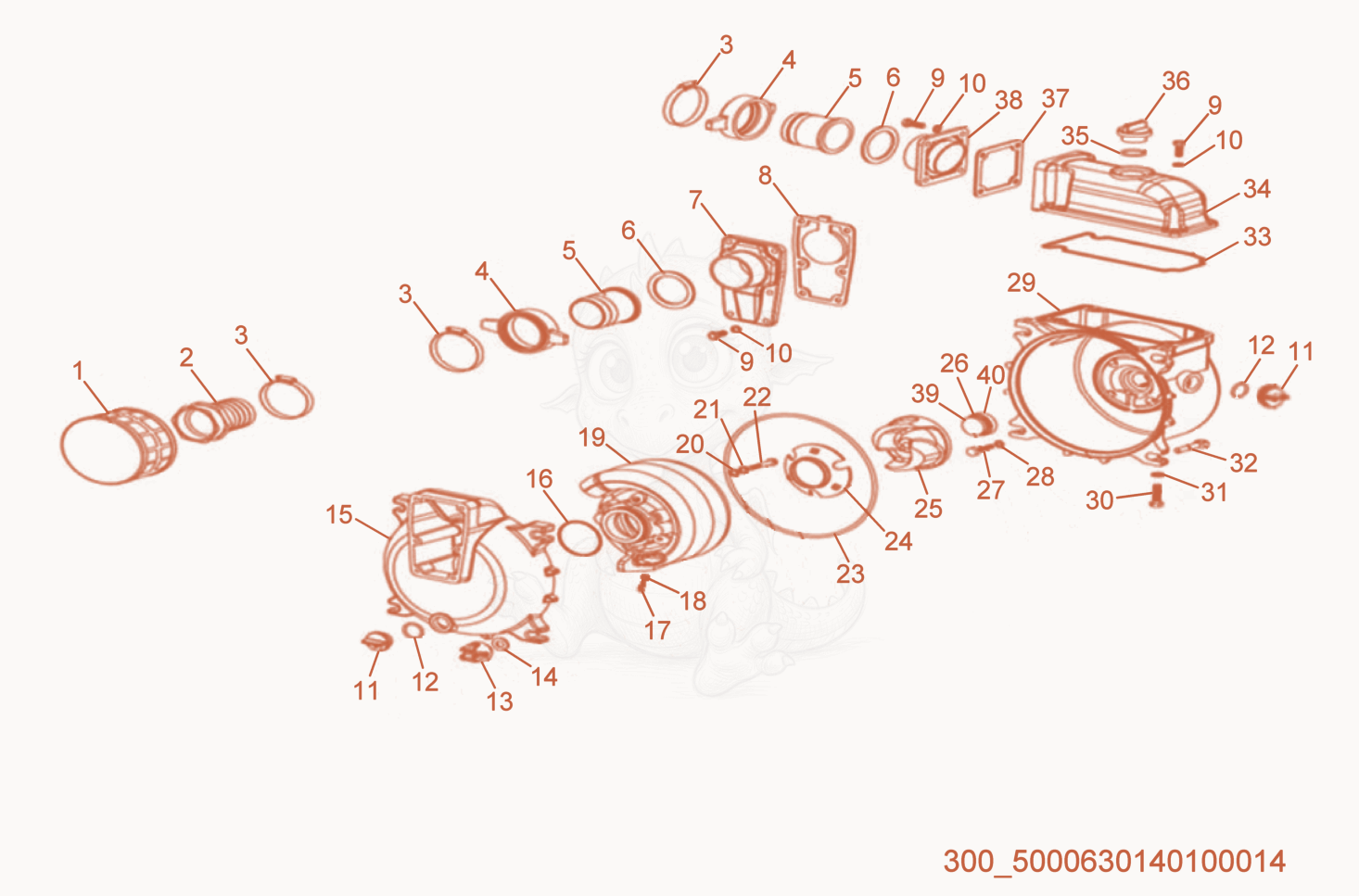

MDP3 Trash Pumps Diagram
- 15000404438Not stockedStrainer×1
- 25000404439Not stockedWater pipe×1
- 35000404440Not stockedClamp×3
- 45000406849Not stockedJoint×2
- 55000406850Not stockedNozzle×2
- 65000404443Not stockedSeal ring×2
- 75000406851Not stockedInlet×1
- 85000404445Not stockedGasket×1
- 95000404446Not stockedFlange bolt×14
- 105000404447Not stockedWasher×14
- 115000404448Not stockedPlug (threaded)×2
- 125000404449Not stockedWasher×2
- 135000404450Not stockedNut×4
- 145000404451Not stockedWasher×4
- 155000406852Not stockedHousing×1
- 165000404453Not stockedO-Ring×1
- 175000404454Not stockedFlange bolt×3
- 185000404455Not stockedWasher×3
- 195000404456Not stockedVolute×1
- 205000404457Not stockedWasher×3
- 215000404458Not stockedWasher×3
- 225000404459Not stockedScrew×3
- 235000404460Not stockedJoint×1
- 245000404461Not stockedCover×1
- Impeller-Water Pump - 5000404462×1
- SEAL MP3 - 5000404463×1
- 275000404466Not stockedScrew×4
- 285000404467Not stockedGasket×4
- 295000406853Not stockedJoint×1
- 305000404469Not stockedFlange bolt×4
- 315000404470Not stockedWasher×4
- 325000404471Not stockedFlange bolt×4
- 335000404472Not stockedGasket×1
- 345000406854Not stockedBody×1
- Washer-Screw Plug - 5000404474×1
- Plug-Thread - 5000404475×1
- 375000404476Not stockedValve×1
- Outlet-Water - 5000406855×1
- Seal-Porcelain - 5000404464×1
- SEAL MP3 - 5000404465×1
