MDP3X

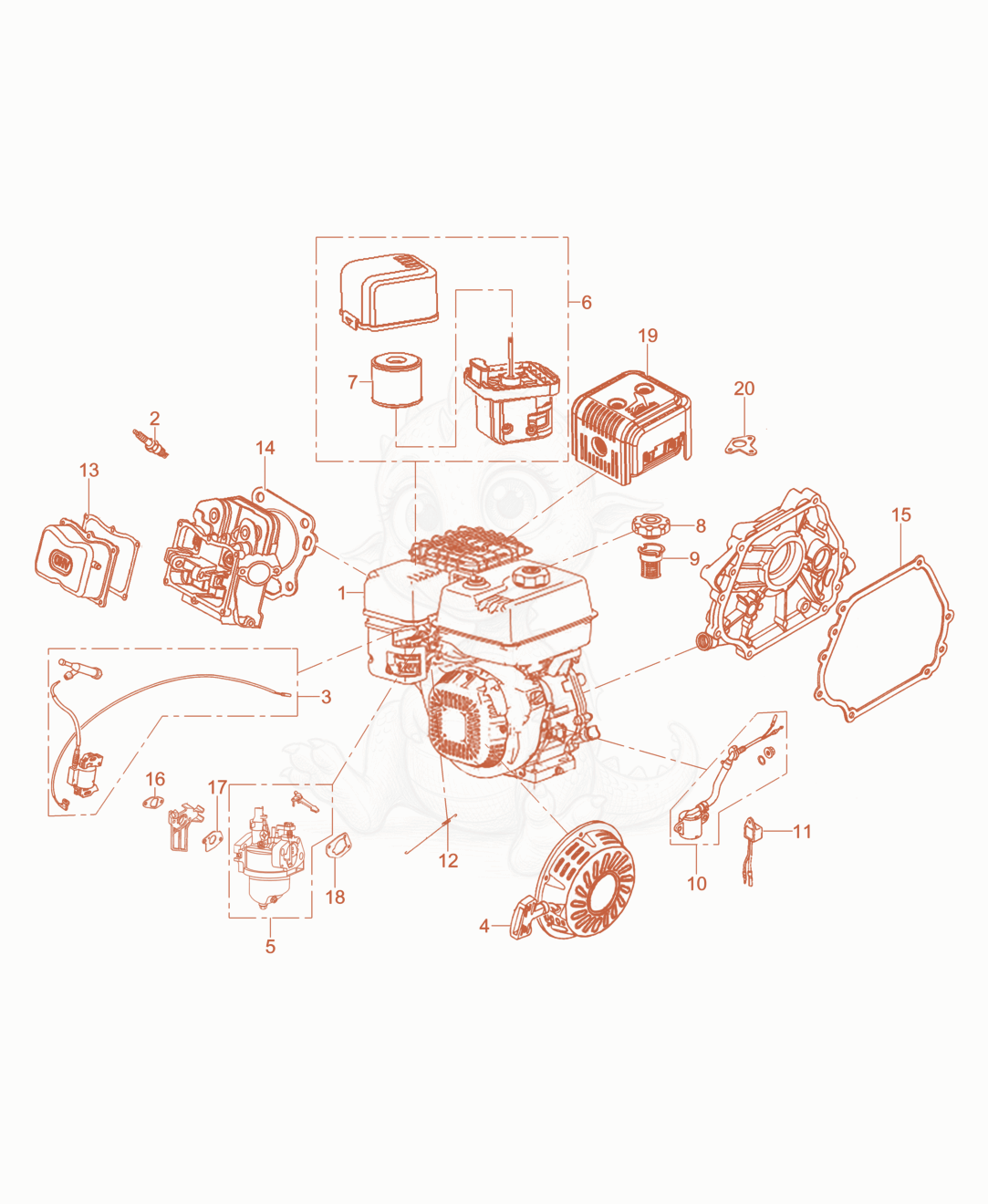

MDP3X Engine Diagram

Exploded parts diagram of the Engine of a Wacker Neuson MDP3X, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000409408Not stocked
    Engine×1
  • 25000408439
    $15.70
    Spark plug - 5000408439×1
  • 35100061617Not stocked
    COIL ASSY.,IGNNTION×1
  • 45100061616Not stocked
    STARTER CPL×1
  • 55000409383
    $55.01
    Carburetor cpl. - 5000409383×1
  • 65000409396
    $55.01
    Air filter - 5000409396×1
  • 75000409397
    $26.29
    Air filter element - 5000409397×1
  • 85000408526
    $7.34
    Fuel Tank Cap - 5000408526×1
  • 95000409402Not stocked
    Filter×1
  • 105000409340
    $22.51
    Oil level sensor - 5000409340×1
  • 115000408453
    $7.50
    Engine oil protector - 5000408453×1
  • 125000409393
    $0.81
    throttle return spring - 5000409393×1
  • 135000409332Not stocked
    Cylinder head gasket×1
  • 145000409337
    $9.38
    Gasket for cylinder head - 5000409337×1
  • 155000409351
    $14.97
    Crankcase cover gasket - 5000409351×1
  • 165000409379
    $0.91
    Carburetor gasket - 5000409379×1
  • 175000409381
    $0.91
    Carburetor gasket - 5000409381×1
  • 185000409382
    $0.91
    Carburetor gasket - 5000409382×1
  • 195000409398
    $136.58
    Muffler - 5000409398×1
  • 205000409399
    $3.65
    Muffler gasket - 5000409399×1
