MG3-CE

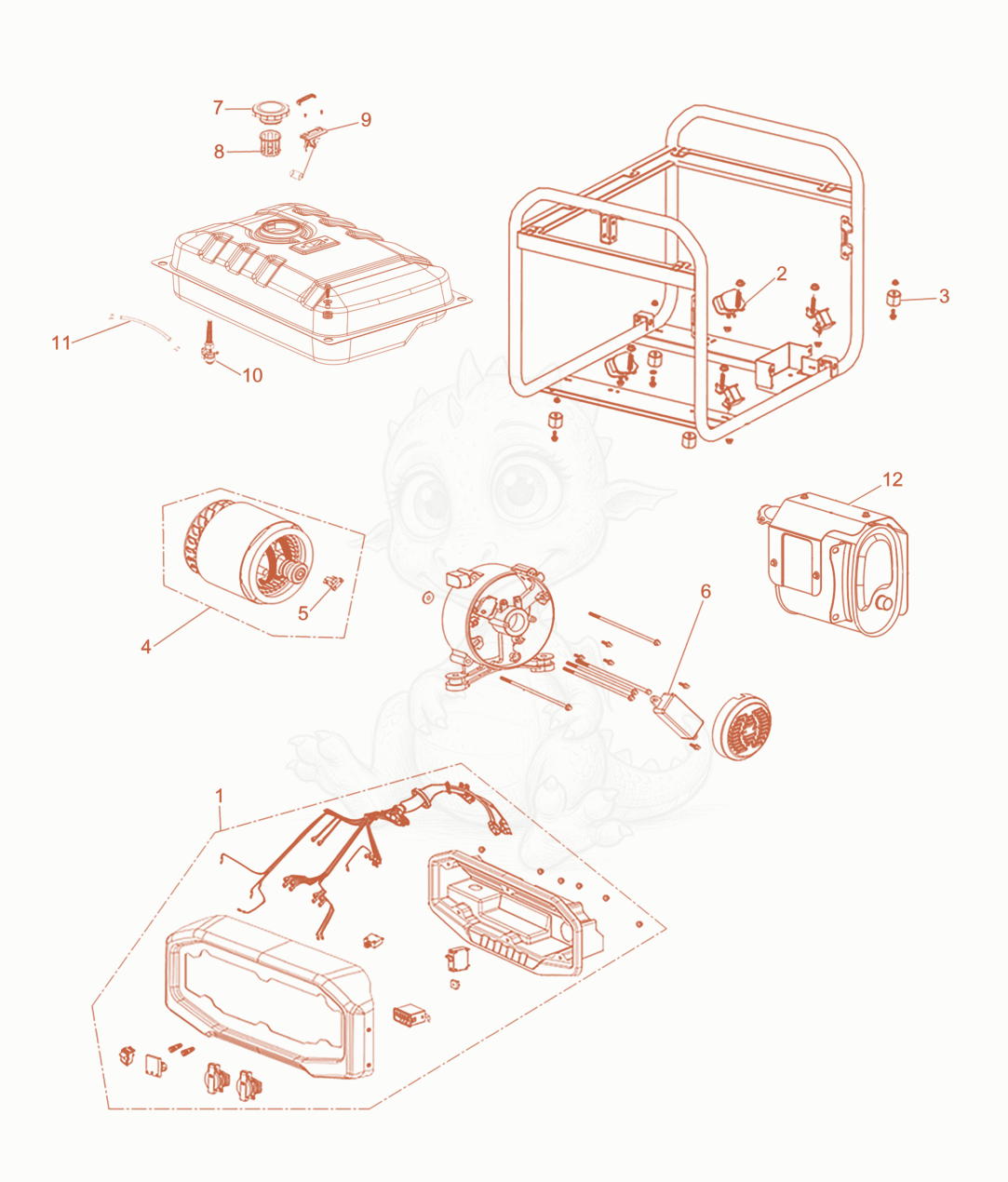

MG3-CE Generator Diagram

Exploded parts diagram of the Generator of a Wacker Neuson MG3-CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000408685Not stocked
    Components of control panel×1
  • 25000408699
    $14.27
    Shockmount - 5000408699×1
  • 35000408700
    $2.45
    Shockmount - 5000408700×1
  • 45000408707Not stocked
    Motor cpl.×1
  • 55000408708
    $10.60
    Carbon brush combination - 5000408708×1
  • 65000408714Not stocked
    regulator×4
  • 75000408672
    $15.28
    Cover Fuel Tank - 5000408672×4
  • 85000408673
    $3.25
    Pouring orifice filter screen combinatio - 5000408673×1
  • 95000408676
    $6.13
    Fuel level gauge - 5000408676×1
  • 105000408682
    $11.81
    omponents of oil switch - 5000408682×1
  • 115000409405Not stocked
    Oil tube×1
  • 125000408669
    $132.03
    Muffler - 5000408669×1
