MG3-LA

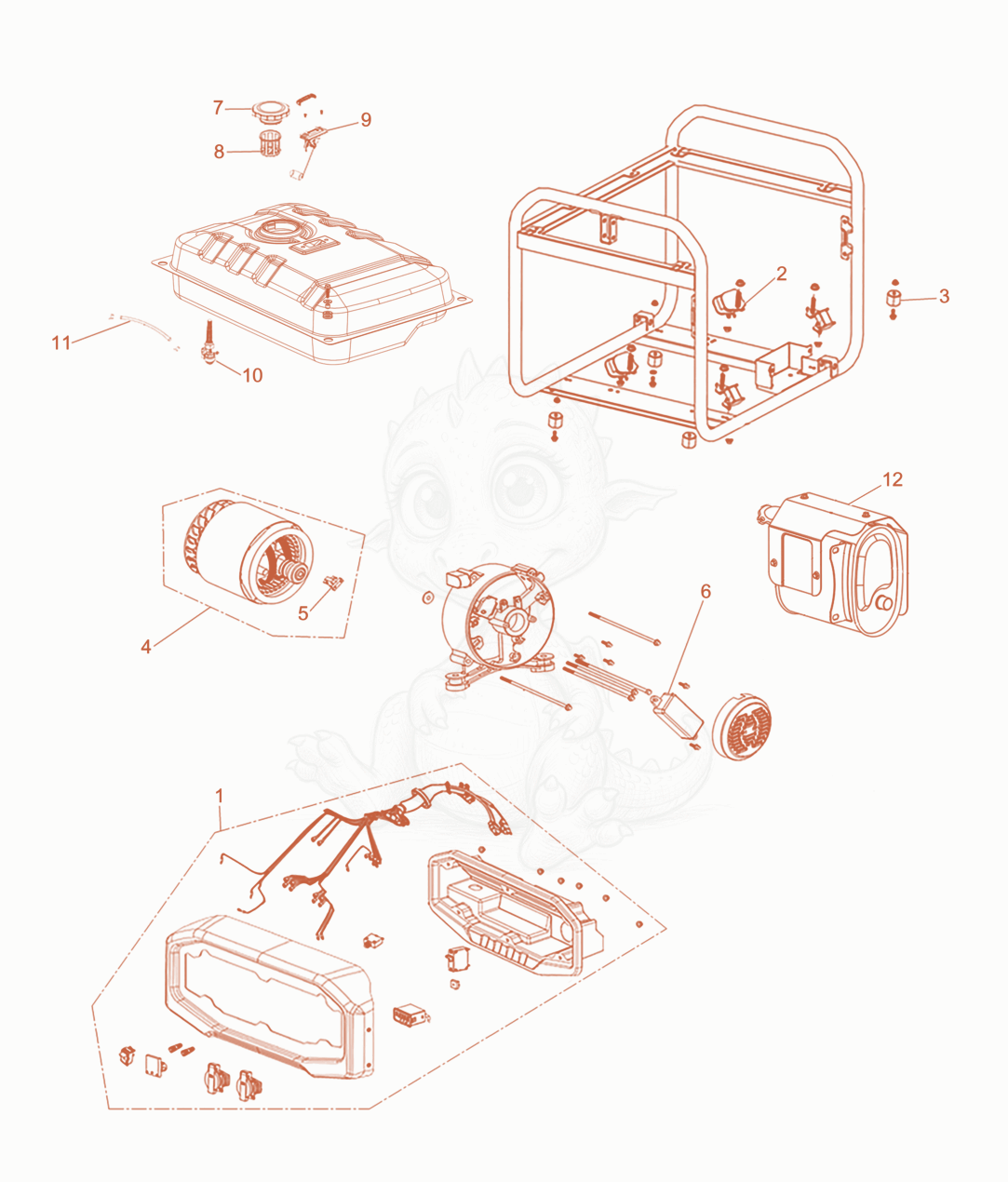

MG3-LA Generator Diagram
- Control Panel Cpl. - 5100052190×1
- Shockmount - 5000408699×1
- Shockmount - 5000408700×1
- Motor Cpl. - 5100052203×1
- Carbon brush combination - 5000408708×1
- Voltage Regulator - 5100052214×4
- Cover Fuel Tank - 5000408672×4
- Pouring orifice filter screen combinatio - 5000408673×1
- Fuel level gauge - 5000408676×1
- omponents of oil switch - 5000408682×1
- Oil tube - 5000408534×1
- Muffler - 5000408669×1
