MG3sd Por-Gen 110/220V 50Hz CEE-EN

MG3SD Blower Housing Diagram

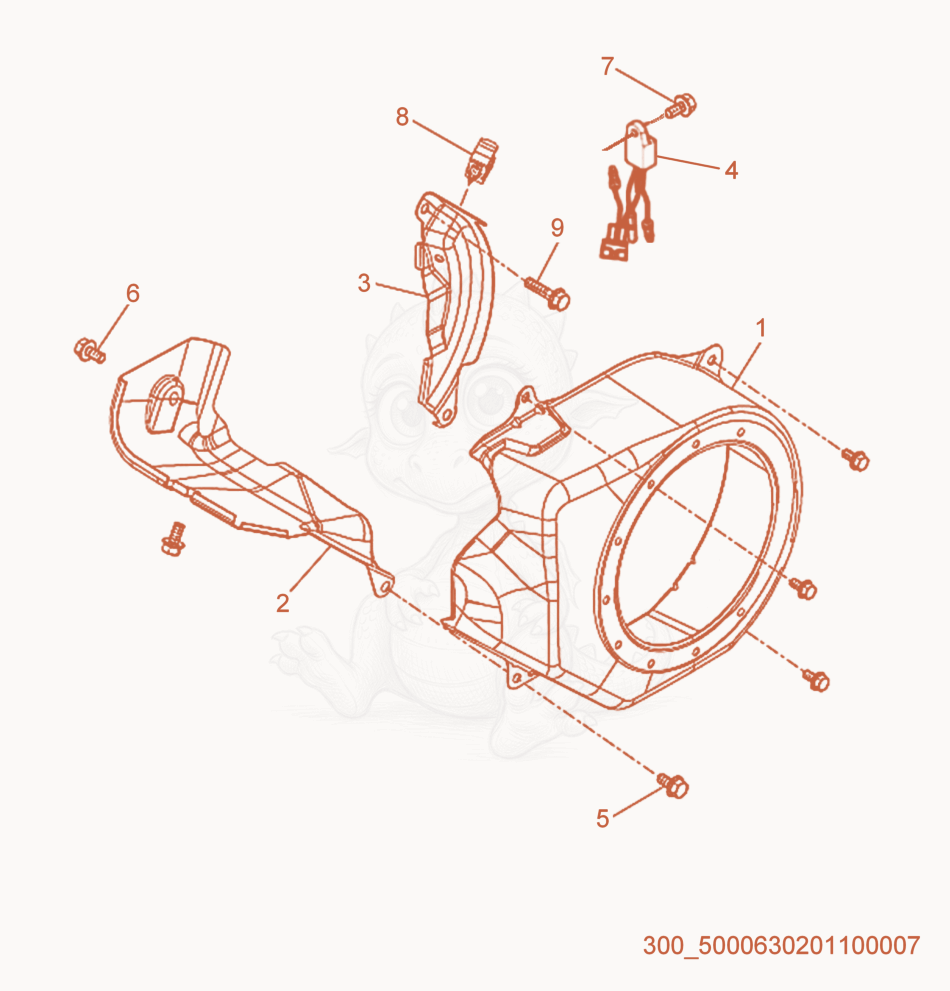

Exploded parts diagram of the Blower Housing of a Wacker Neuson MG3SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000407351Not stocked
    Flywheel housing×1
  • 25000406800Not stocked
    Cover×1
  • 35000407352Not stocked
    Shield×1
  • 45000404006
    $8.09
    Protector- Oil R-5000405061 - 5000404006×1
  • 55000404022
    $0.89
    OVER-FAN - 5000404022×4
  • 65000404001Not stocked
    Flange bolt×2
  • 75000404008Not stocked
    Flange bolt×1
  • 85000404036
    $0.81
    Collar - 5000404036×1
  • 95000407393Not stocked
    Bolt×1
