MG3sd Por-Gen 110/220V 50Hz CEE-EN

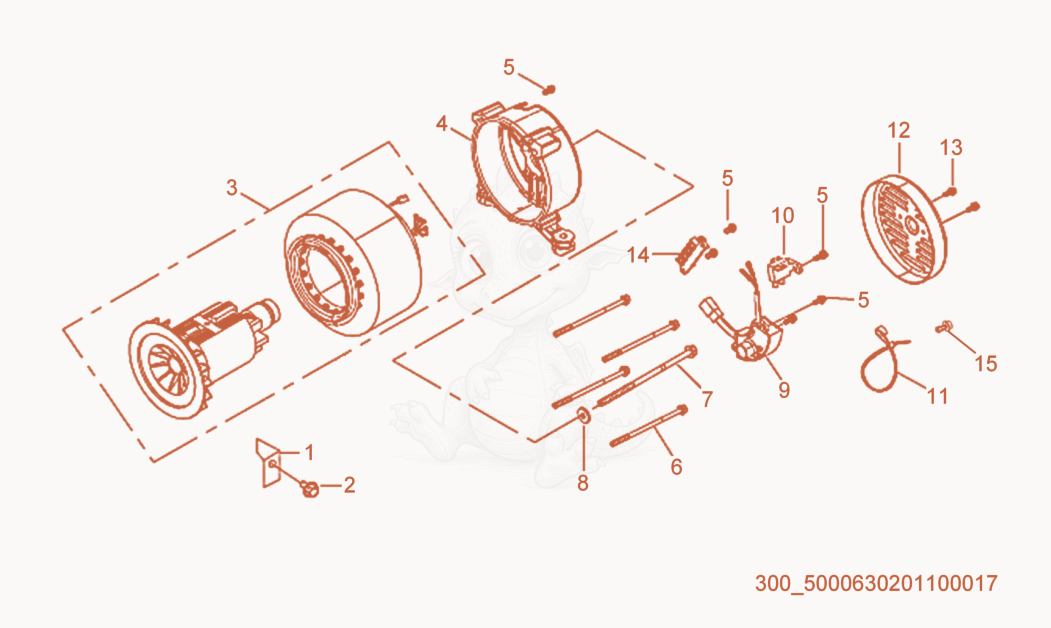

MG3SD Motor cpl. Diagram

Exploded parts diagram of the Motor cpl. of a Wacker Neuson MG3SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000404098Not stocked
    Stopper×1
  • 25000404099Not stocked
    Flange bolt×1
  • 35000407372Not stocked
    Motor cpl.×1
  • 45000404084Not stocked
    Bracket×1
  • 55000404089Not stocked
    Flange bolt×6
  • 65000404085Not stocked
    Bolt×4
  • 75000404087Not stocked
    Bolt×1
  • 85000404086Not stocked
    Washer×1
  • 95000407373Not stocked
    Regulator×1
  • 105000404080
    $14.16
    Protector- Overcurrent - 5000404080×1
  • 115000404096Not stocked
    Band clamp×1
  • 125000406813Not stocked
    Cover×1
  • 135000404093Not stocked
    Flange bolt×2
  • 145000407374Not stocked
    Terminal block×1
  • 155000404263Not stocked
    Flange bolt×1
