MG3sd Por-Gen 110/220V 50Hz CEE-EN

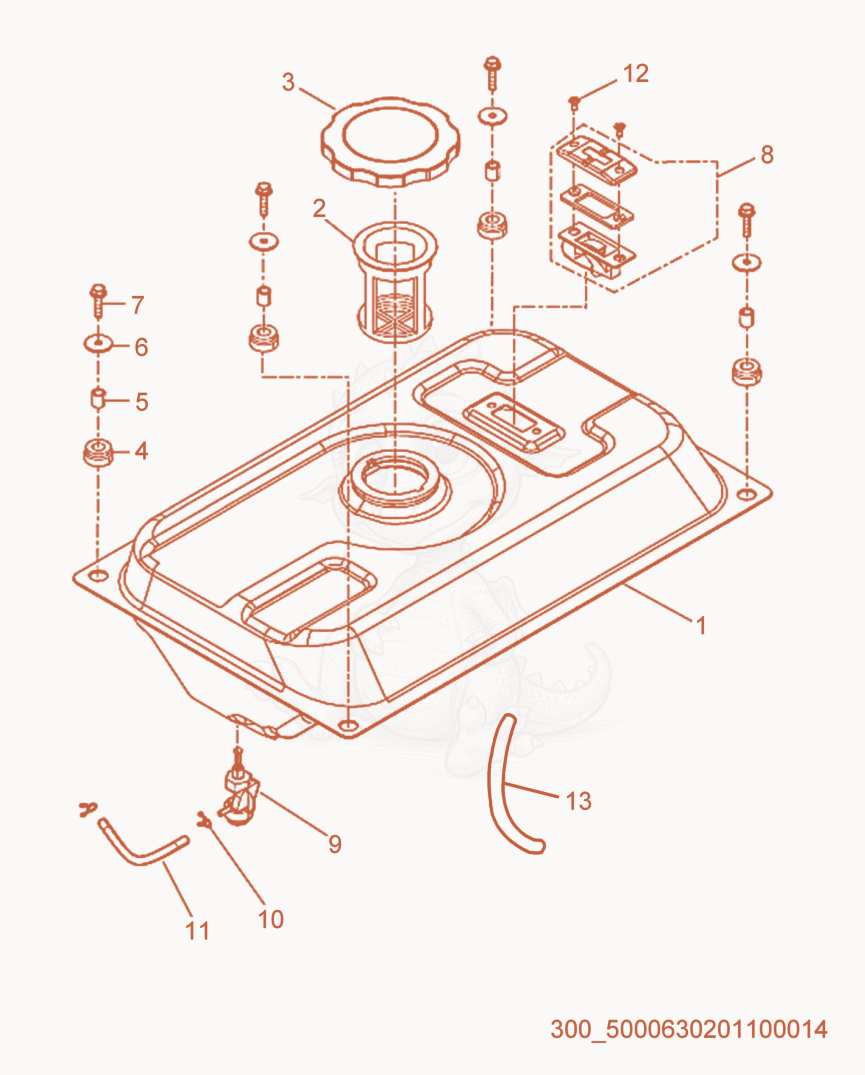

MG3SD Fuel Tank cpl. Diagram

Exploded parts diagram of the Fuel Tank cpl. of a Wacker Neuson MG3SD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000406802
    $85.14
    Tank-Fuel - 5000406802×1
  • 25000404028
    $3.98
    Strainer- Fuel - 5000404028×1
  • 35000406803
    $15.52
    Cover-Fuel Tank - 5000406803×1
  • 45000404030Not stocked
    Sleeve×1
  • 55000404031Not stocked
    Bushing×4
  • 65000404032Not stocked
    Washer×4
  • 75000404033
    $1.17
    Bolt - 5000404033×4
  • 85000404034
    $15.03
    Leveler Assy- Oil - 5000404034×1
  • 95000404035
    $13.65
    Cock Assy- Fuel - 5000404035×1
  • 105000404036
    $0.81
    Collar - 5000404036×2
  • 115000406804Not stocked
    Tube×1
  • 125000404038Not stocked
    Screw×2
  • 135000407360Not stocked
    Rubber×1
