MG5-ME

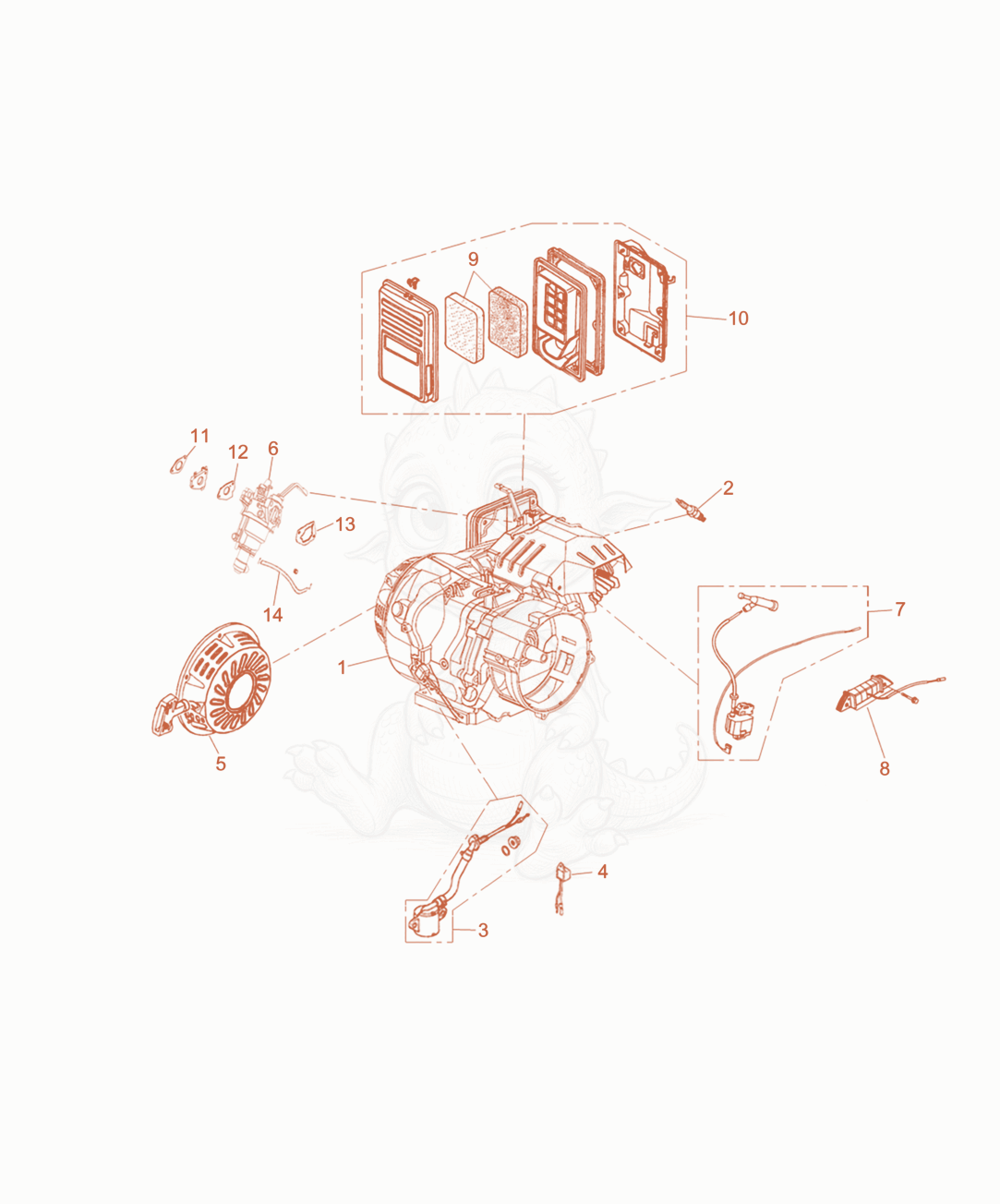

MG5-ME Engine Diagram

Exploded parts diagram of the Engine of a Wacker Neuson MG5-ME, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100052225Not stocked
    Engine×1
  • 25000408649
    $23.85
    Spark plug - 5000408649×1
  • 35000408574
    $14.47
    Oil switch cpl. - 5000408574×1
  • 45000408453
    $7.50
    Engine oil protector - 5000408453×1
  • 55100058443
    $31.38
    STARTER KIT - 5100058443×1
  • 65100052159Not stocked
    Carburetor cpl.×1
  • 75000408622
    $33.41
    Ignition Coil - 5000408622×1
  • 85000408762
    $14.14
    Charging coil - 5000408762×1
  • 95000408767
    $18.96
    Air Cleaner Element Set - 5000408767×1
  • 105000408771
    $69.98
    Air Cleaner cpl. - 5000408771×1
  • 115000408617
    $0.91
    Gasket - 5000408617×1
  • 125000408619
    $0.91
    Gasket - 5000408619×1
  • 135000408620
    $0.91
    Gasket - 5000408620×1
  • 145000408757
    $0.92
    Fuel Hose - 5000408757×1
