MG5 Generator (L683,W540,H552)

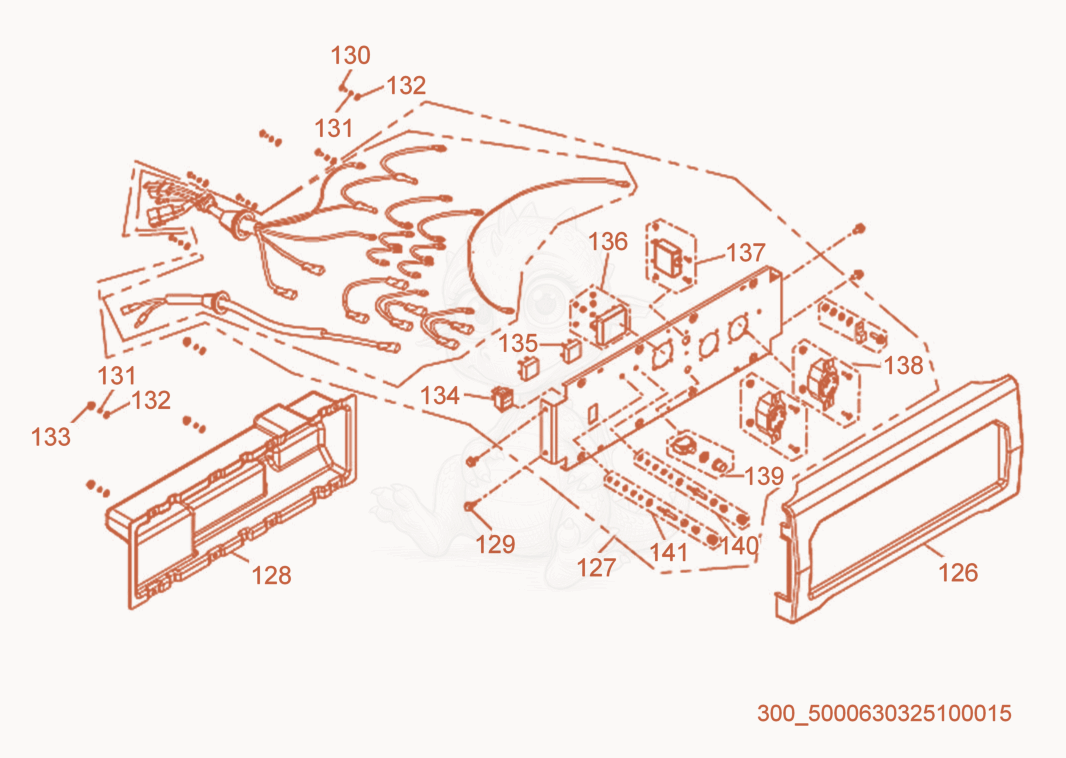

MG5 Panel cpl. Diagram
- Seat-Panel(black) - 5000404235×1
- 1275000404236Not stockedPanel, control×1
- Case-Panel Rear(black) - 5000404237×1
- 1295000404024Not stockedFlange bolt×4
- 1305000404071Not stockedScrew×6
- 1315000404072Not stockedWasher×10
- 1325000404073Not stockedLock washer×10
- 1335000404074Not stockedNut×4
- Switch Subassembly - 5000404076×1
- Bridge- Rectification - 5000404075×2
- Voltmeter - 5000404077×1
- Breaker - 5000404246×1
- R-0404247 Socket Subassembly-PowerSupply - 5000404079×2
- Protector- Overcurrent - 5000404080×1
- Terminal- Negative Electrode - 5000404081×1
- 1415000404082Not stockedTerminal×1
