ML425 Light Tower

ML425 Cart cpl. Diagram

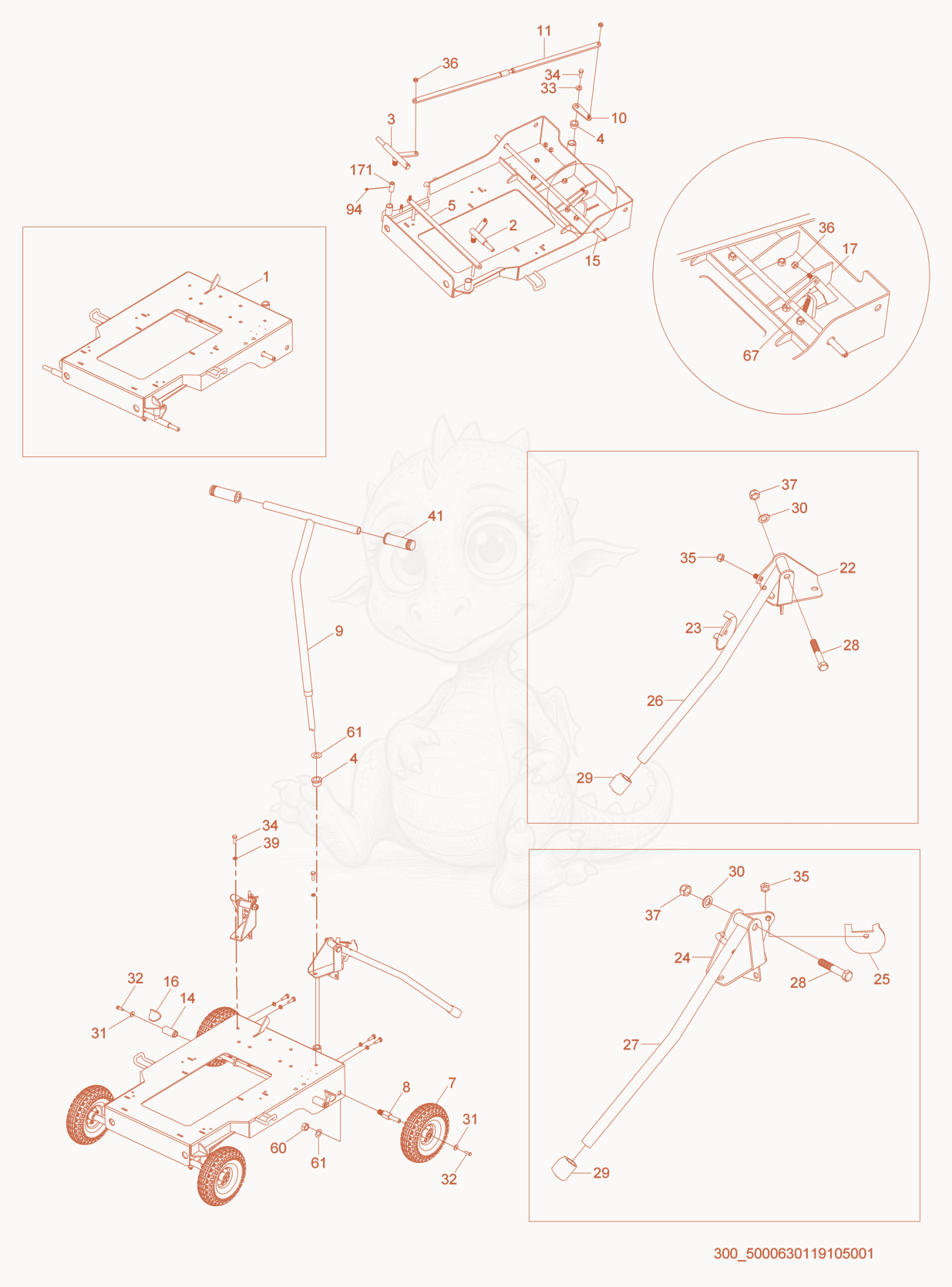

Exploded parts diagram of the Cart cpl. of a Wacker Neuson ML425, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000403224Not stocked
Cart×1
25000403186
$80.85
Axle Arm-Right - 5000403186×1
35000403191
$85.58
Axle Arm-Left - 5000403191×1
45000403202Not stocked
Bushing×2
55000403195
$51.36
Axle-Rod - 5000403195×1
75000406613
$57.94
Solid Wheel 12 - 5000406613×4
85000403283
$27.19
Axle - 5000403283×2
95000403200Not stocked
Handle×1
105000403204Not stocked
Guide plate×1
115000404699Not stocked
Connecting rod cpl.×1
145000403350
$14.80
Bushing - 5000403350×2
155000406589Not stocked
Shaft cpl.×1
165000403354
$15.73
Brake Foot Cpl. - 5000403354×2
175000403361Not stocked
Foot plate cpl.×1
225000403586Not stocked
Holder×1
235000403592Not stocked
Cam×1
245000403587Not stocked
Holder×1
255000403593Not stocked
Right cam Lock×1
265000406611
$62.39
Stablizer Weldment Left - 5000406611×1
275000406612Not stocked
Lever×1
285000403368
$5.14
Bolt-M16 x 90,Hex Hd. - 5000403368×2
295000403842
$12.28
Stablizer Plug - 5000403842×2
305000010618
$0.28
WASHER B17 FLAT - 5000010618×4
315000010374
$0.22
WASHER B8.4 FLAT - 5000010374×6
325000011457
$1.49
SCREW M8 X 25 HX.HD. - 5000011457×6
335000025637
$0.06
WASHER 3/8 NOM,STEEL,FLAT - 5000025637×1
345000011439
$0.23
SCREW M10 X 30 HX.HD - 5000011439×6
355000010366
$0.54
NUT-LOCK M12X1.75 HEX - 5000010366×2
365000010365
$0.20
NUT-LOCK M10 HEX. - 5000010365×5
375000013496
$0.97
NUT-LOCK M16 HEX. - 5000013496×2
395000010644
$0.04
WASHER-LOCK B10 - 5000010644×6
415000402335Not stocked
Handle grip×2
605000403929Not stocked
Hex nut×2
615000010616
$2.02
WASHER B21 FLAT - 5000010616×3
675000404308
$12.29
Spring-Tension - 5000404308×1
945000072815
$0.17
SCREW-SET M6 X 10 FL.PT - 5000072815×2
1715000406509
$9.02
Plain Bearing - 5000406509×2
