ML440 (Singapore)

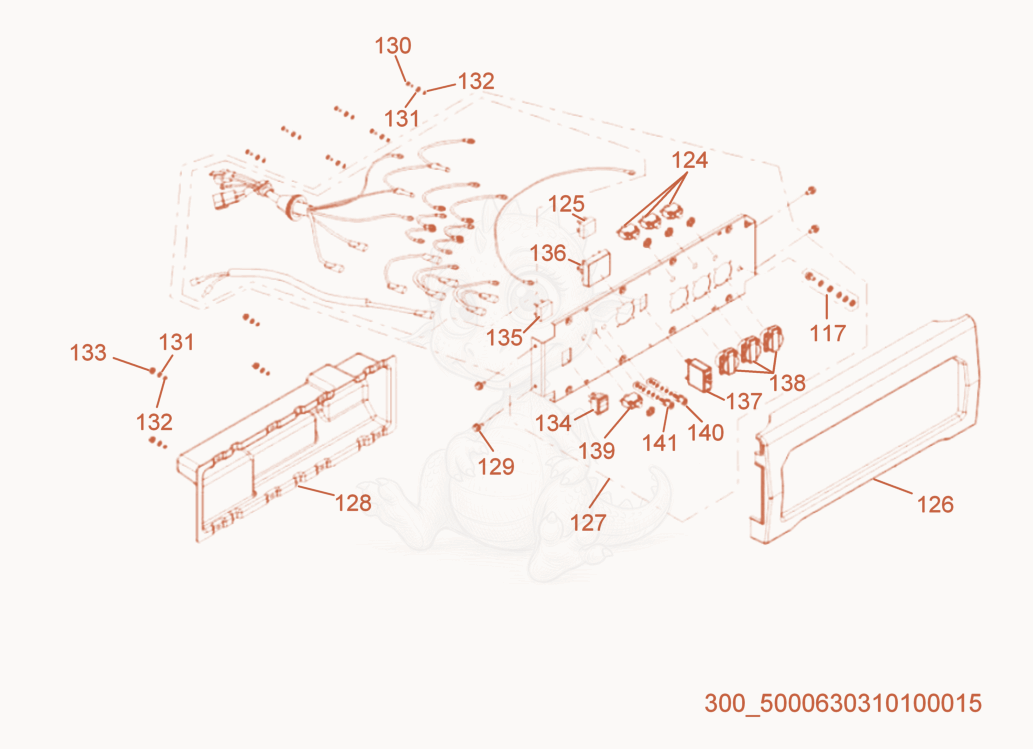

ML440 Panel cpl. Diagram

Exploded parts diagram of the Panel cpl. of a Wacker Neuson ML440, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1175000407875Not stocked
    Terminal Kit×1
  • 1245000407883Not stocked
    Protector×3
  • 1255000407884Not stocked
    Rectifier, bridge×1
  • 1265000404235
    $68.52
    Seat-Panel(black) - 5000404235×1
  • 1275000407881Not stocked
    Panel, control×1
  • 1285000404237
    $79.32
    Case-Panel Rear(black) - 5000404237×1
  • 1295000404024Not stocked
    Flange bolt×4
  • 1305000404071Not stocked
    Screw×6
  • 1315000404072Not stocked
    Washer×10
  • 1325000404073Not stocked
    Lock washer×10
  • 1335000404074Not stocked
    Nut×4
  • 1345000404076
    $11.75
    Switch Subassembly - 5000404076×1
  • 1355000404075
    $15.62
    Bridge- Rectification - 5000404075×1
  • 1365000404077
    $29.78
    Voltmeter - 5000404077×1
  • 1375000407882Not stocked
    Breaker×1
  • 1385000404079
    $12.65
    R-0404247 Socket Subassembly-PowerSupply - 5000404079×3
  • 1395000404080
    $14.16
    Protector- Overcurrent - 5000404080×1
  • 1405000404081
    $6.97
    Terminal- Negative Electrode - 5000404081×1
  • 1415000404082Not stocked
    Terminal×1
