MP15A (WITH GX160)

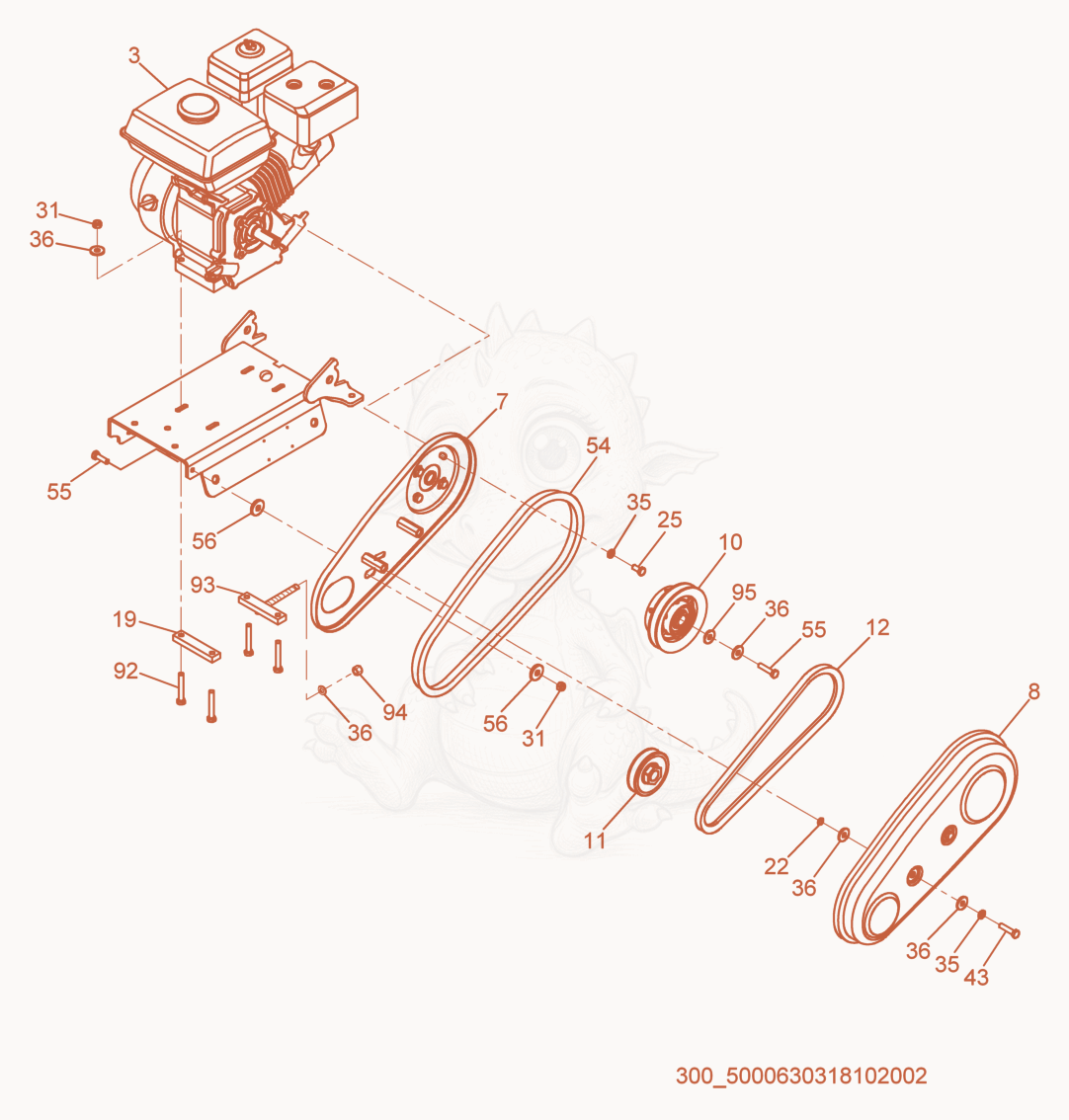

MP15A Drive cpl. Diagram

Exploded parts diagram of the Drive cpl. of a Wacker Neuson MP15A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35000407989Not stocked
    Engine×1
  • 75000408038
    $69.63
    Beltguard Back Weldment - 5000408038×1
  • 85000116829
    $53.33
    BELTGUARD-FRONT - 5000116829×1
  • 105000130031
    $281.87
    CLUTCH-CENTRIFUGAL - 5000130031×1
  • 115000403567
    $39.13
    Pulley-machined - 5000403567×1
  • 125000117023
    $16.27
    BELT-V A32 - 5000117023×1
  • 195000400185
    $12.09
    ENGINE BAR - 5000400185×1
  • 225000089385
    $0.22
    O-RING 3/8X1/16-70 SHORE A - 5000089385×2
  • 255000012361
    $0.23
    SCREW M8 X 16 HX.HD. - 5000012361×4
  • 315000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×5
  • 355000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×6
  • 365000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×10
  • 435000011340
    $0.50
    SCREW M8 X 35 HX.HD. - 5000011340×2
  • 545000130022
    $16.30
    Molding Rubber - 5000130022×1
  • 555000011457
    $1.49
    SCREW M8 X 25 HX.HD. - 5000011457×2
  • 565001005118
    $1.03
    WASHER-STEEL,FLAT - 5001005118×2
  • 925000011452
    $0.44
    SCREW M8 X 50 HX.HD. - 5000011452×4
  • 935000400222Not stocked
    Bar×1
  • 945000010882
    $0.05
    NUT M8 8,HEX - 5000010882×1
  • 955000400673
    $16.96
    SPACER-WASHER - 5000400673×1
