MP15A (WITH GX160)

MP15A Baseplate/Console cpl. Diagram

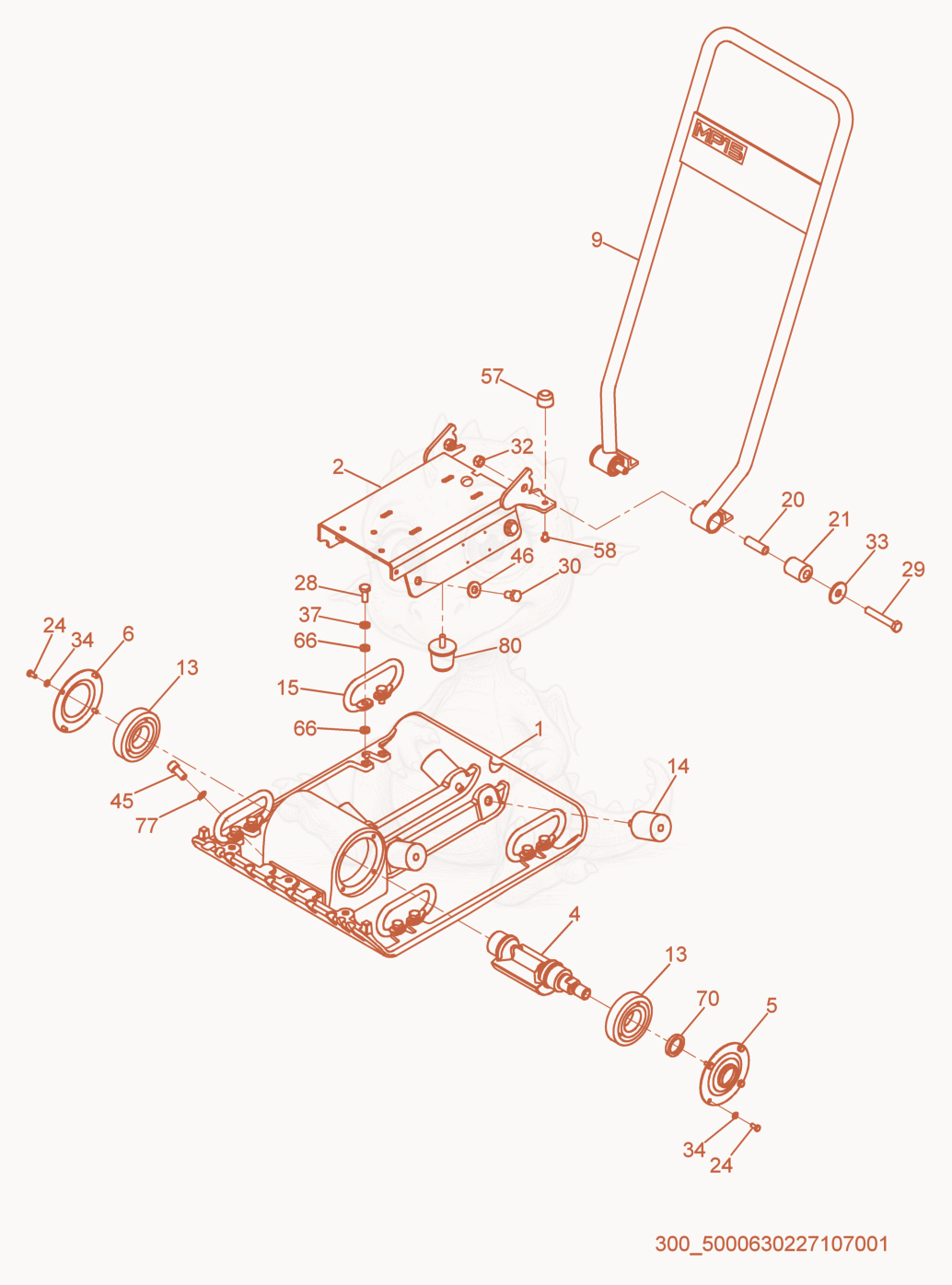

Exploded parts diagram of the Baseplate/Console cpl. of a Wacker Neuson MP15A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000408283Not stocked
    Baseplate×1
  • 25000408267Not stocked
    Console×1
  • 45000403566
    $139.56
    Shaft Exciter-machined - 5000403566×1
  • 55000408262
    $28.35
    Cap end w/ hole - 5000408262×1
  • 65000408263
    $11.62
    Cap end w/out hole - 5000408263×1
  • 95000403821
    $348.84
    Handle Weldment - 5000403821×1
  • 135000403573
    $46.26
    Bearing-Radial Ball - 5000403573×2
  • 145000400506
    $26.35
    Shockmount - 5000400506×4
  • 155000404600
    $44.85
    Handle Lifting - 5000404600×4
  • 205000114254
    $8.15
    BUSHING-HANDLE - 5000114254×2
  • 215000117862
    $5.70
    BUSHING-RUBBER - 5000117862×2
  • 245000012357
    $0.10
    SCREW M6 X 12 HX.HD. - 5000012357×8
  • 285000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×8
  • 295000011306
    $1.00
    SCREW M12 X 75 HX.HD - 5000011306×2
  • 305000012368
    $0.52
    SCREW M12 X 20 HX.HD. - 5000012368×4
  • 325000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×2
  • 335000114766
    $6.50
    WASHER .531X 1.625X.120,FLAT - 5000114766×2
  • 345000010649
    $0.07
    WASHER-LOCK B6 - 5000010649×8
  • 375000407043
    $0.95
    Washer Lock DIN6796,Zinc Mechanical - 5000407043×8
  • 455000011530Not stocked
    Cheese head screw×1
  • 465000031565
    $0.48
    WASHER-LOCK A12 - 5000031565×4
  • 575000401835
    $15.68
    Shockmount - 5000401835×2
  • 585000012360
    $0.12
    SCREW M8 X 12 HX.HD. - 5000012360×2
  • 665000130787
    $1.02
    SPACER-RUBBER - 5000130787×16
  • 705000406265
    $8.36
    Seal Shaft - 5000406265×1
  • 775000013444
    $3.06
    SEAL-RING 12 X 18 - 5000013444×1
  • 805000130961
    $30.49
    Shockmount - 5000130961×1
