MP15A (WITH GX160)

MP15A Piston/Crankshaft Diagram

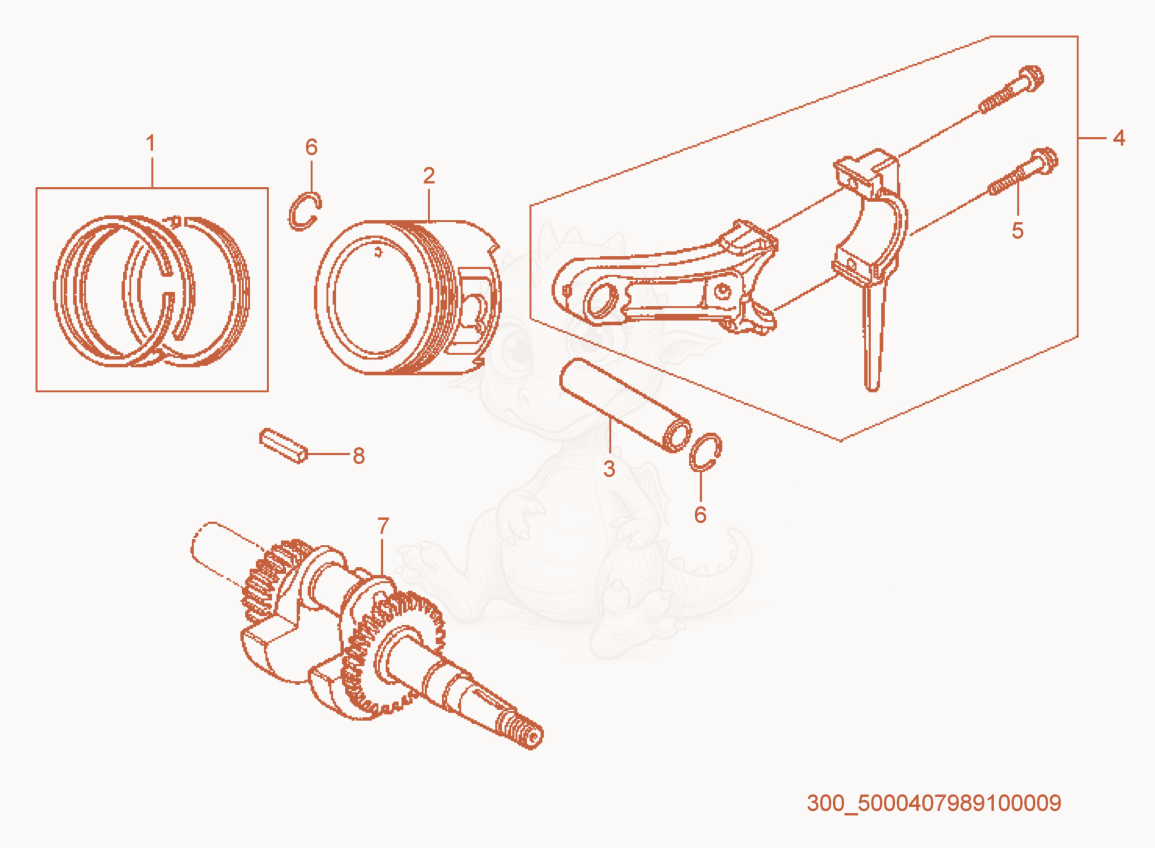

Exploded parts diagram of the Piston/Crankshaft of a Wacker Neuson MP15A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000408205Not stocked
    Piston Ring Set×1
  • 15000408206Not stocked
    Piston Ring Set×1
  • 25000408214Not stocked
    Piston×1
  • 35000408218Not stocked
    Piston pin×1
  • 45000071647
    $15.65
    Connecting Rod - 5000071647×1
  • 55000071007
    $4.53
    SCREW M7 X 35,ACORN HD,CL.12 - 5000071007×2
  • 65000081994
    $1.68
    CLIP-PISTON PIN - 5000081994×2
  • 75000408204Not stocked
    Crankshaft cpl.×1
  • 85000151053
    $14.03
    KEY 5 X 5 X 33 - 5000151053×1
