MP15A (WITH GX160)

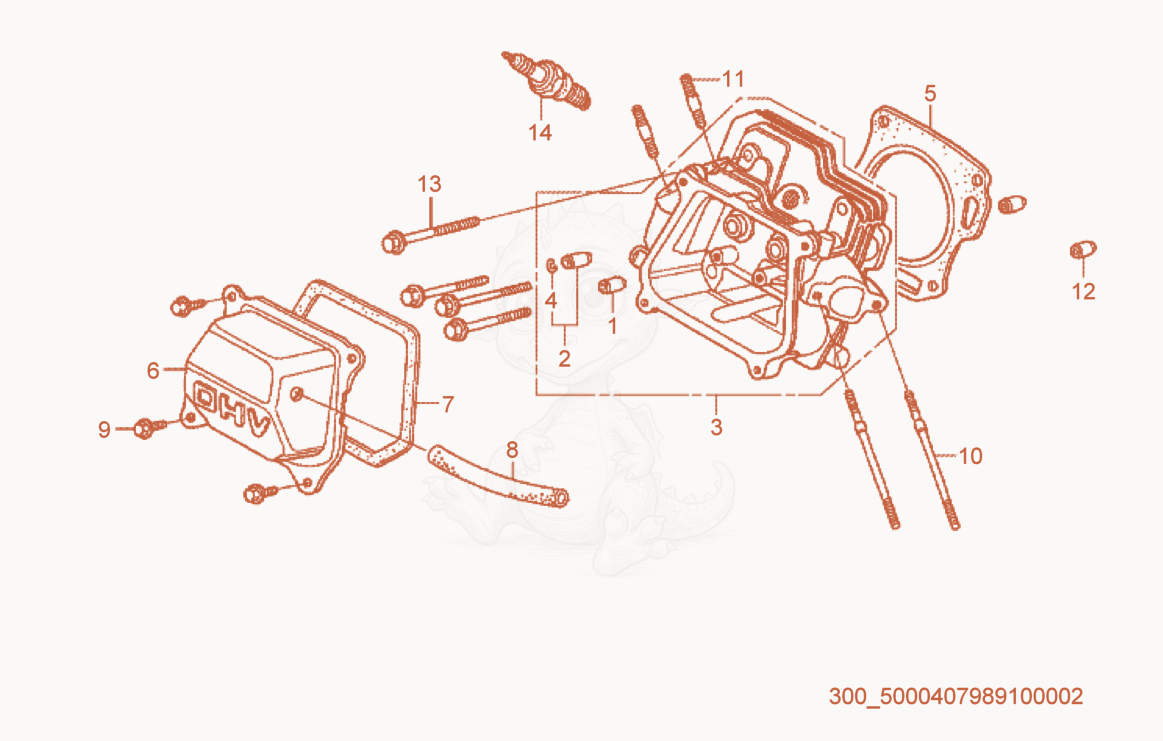

MP15A Cylinder Head Diagram

Exploded parts diagram of the Cylinder Head of a Wacker Neuson MP15A, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000070945
    $24.22
    GUIDE-ENGINE VALVE,INTAKE - 5000070945×1
  • 25000070944
    $11.04
    GUIDE-VALVE,EXHAUST,ENGINE - 5000070944×1
  • 35000408174Not stocked
    Cylinder head×1
  • 45000081744
    $2.07
    CLIP-VALVE GUIDE - 5000081744×1
  • 55000408175Not stocked
    Cylinder head gasket×1
  • 65000070839
    $23.98
    valve cover - 5000070839×1
  • 75000070942
    $6.31
    GASKET - 5000070942×1
  • 85000081761
    $5.61
    TUBE-BREATHER - 5000081761×1
  • 95000053990
    $2.33
    SCREW M6 X 12,HX.FLANGE HD. - 5000053990×4
  • 105000073263
    $7.87
    STUD M6 X 109 - 5000073263×2
  • 115000070948
    $5.36
    STUD M8 X 32 - 5000070948×2
  • 125000070950
    $5.75
    PIN-DOWEL - 5000070950×2
  • 135000213398
    $2.28
    BOLT-FLANGE,8 X 60 - 5000213398×4
  • 145000150914
    $3.67
    SPARK PLUG-(BPR6ES)NKS X-5000203788 - 5000150914×1
